| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-FTM-I |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 40 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets Per Month |
| Bearing: | Made In Japan | Speed: | 4800 Sheets/min |
|---|---|---|---|
| Motor: | Siemens | Touch Screen: | Siemens |
| Steel: | NO 45 Steel | Structure: | Wall Board |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Facial Tissue Making Machine | Processing Type: | Facial Tissue Making Machine |
| High Light: | 7.5KW V Fold Tissue Paper Maker Machine,Embossing Counting Unit Tissue Paper Maker Machine,7.5KW V Fold tissue paper machinery |
||

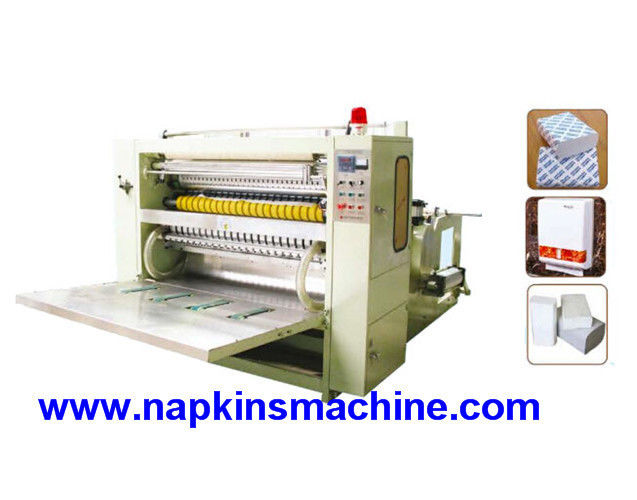

High Speed Facial Tissue Machine With Embossing /Counting Unit And Cutting
Description
Cross Fold Facial Tissue Machine For Hotel Box Facial Tissue is with embossing, folding unit, counting unit and cutting , convey, automatic boxed and automatic sealing box in one body. This equipment adopt PLC, frequency control and equip with touch type multi-picture man and computer interface operation system. Adopt synchronization belt driving, speed-change machine driving for complete machine, which make the machine can suitable for various kind of raw material’s requirement , and improve the quality and efficiency. The operation flow of this production line is easy, high production efficiency and made perfect production. This production reduce the production operation and packaging person which save the expense of production and management.
Specification
|
Jumbo Roll Dimension |
1,200 mm(W) |
|
Jumbo Roll Diameter |
1,200 mm(∅) |
|
Jumbo Roll Material Quality |
Paper Basic Weight: 13~15 gsm/2 ply |
|
Interfold Style |
V Fold (2 ply) |
|
Unfold Dimension |
200mm(L) x 200mm(W) |
|
Interfold Dimension |
100mm(L) x 200mm(W) |
|
Slitting Kinives |
10 units |
|
Design Machine Speed |
60~80 M/min |
|
Design Product Capacity |
4,800 sheets/min |
Main Specification
Speed: 4800sheets/min
Folding Type: Interfold
Edge Embossing
Frequency Converter Delta
Motor: Siemens
Pneumatic Parts AIRTAC
20mm thickness wall board plate for back stand
40mm thickness wall board plate for embossing unit
30mm thickness wall board plate for cylinder folding parts
Photoelectrical switch (magic eye) Omron
Electrical Parts and other Parts brand
|
NO |
Name |
Brand |
Original Place |
|
1 |
Motor |
Siemens |
China |
|
2 |
Pneumatic Parts |
Omron |
Germany |
|
3 |
Vacuum Pump |
Longtech |
Taiwai |
|
3 |
Frequency converter |
Delta |
Taiwai |
High Quality Facial Tissue Machine Paper Product Making Machinery
Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
2. Specification of Single Channel Log Saw Cutting Machine:
3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Final Products:
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
Final Products:
