| Place of Origin: | China |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-PT-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 50 work days after down payment |
| Payment Terms: | L/C, T/T |
| Fold Type: | Z Fold | Speed: | 1000 Sheets Per Min Per Line |
|---|---|---|---|
| Embossing: | Steel To Steel | Frequency Converter: | Delta |
| Pneumatic Parts: | AIRTAC | Photoelectrical Switch (magic Eye): | Omron |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Towel Machine | Processing Type: | Paper Towel Machine |
| High Light: | 7.5KW Z Fold Tissue Paper Maker Machine,920mm Width Tissue Paper Maker Machine,920mm Width tissue printing machine |
||

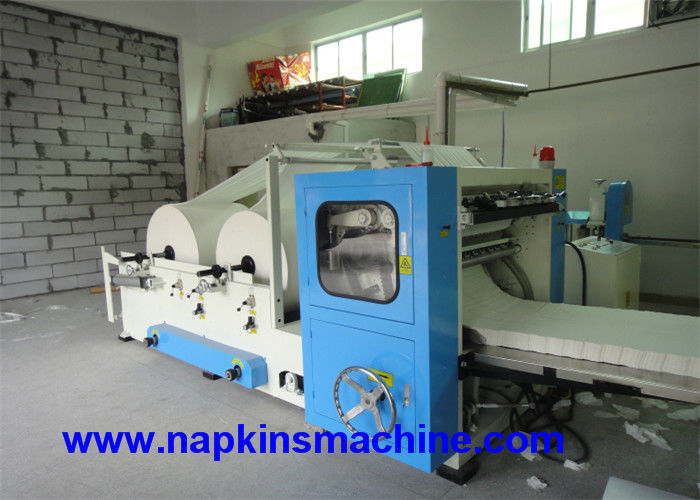

Z Fold Paper Towel Making Machine to make paper hand towel tissue
Specification for N FOLD Paper Towel Machine_20210...
Description

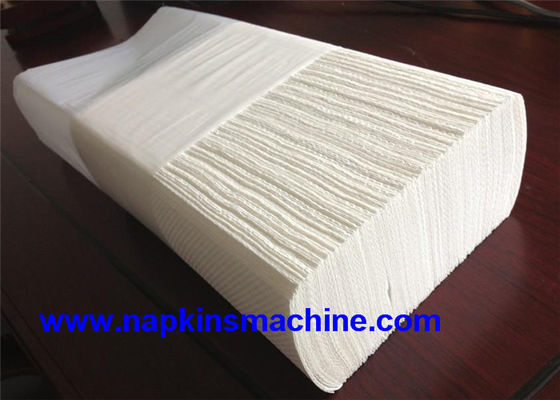

Z Fold Paper Towel Making Machine to make paper hand towel tissue is mainly used to produce interfolded Z-fold tissue towel, which is popular in the European market. The machine features are high speed and clean cut. We can design the machine based on the customer‘s requirement of the product sizes. This model has CE certificate.
The Main Technical Parameters
| Max.jumbo roll width | 920mm(4Lanes) |
| Max.jumbo roll diameter | Standard φ1100mm unless otherwise specified |
| Qty of unwind stand | 1 standing |
| Jumbo roll core’s inner diameter | Standardφ3”(76.2mm) unless otherwise specified |
| Data setting | HMI |
| Programming controller | PLC |
| Operate speed | (60-160m/min) x2 |
| Expand size | Φ230*230mm |
| Folding size | Φ115*230mm V- folding |
| Power | 5.5kw 380V 50HZ 3P |
| Mechanical driving | Driving by Step less gear box |
| Transmission | by belt and chain |
| Vacuum fan | Roots Vacuum System,22kw 380V 50HZ 3P |
| Counting | electronic counting |

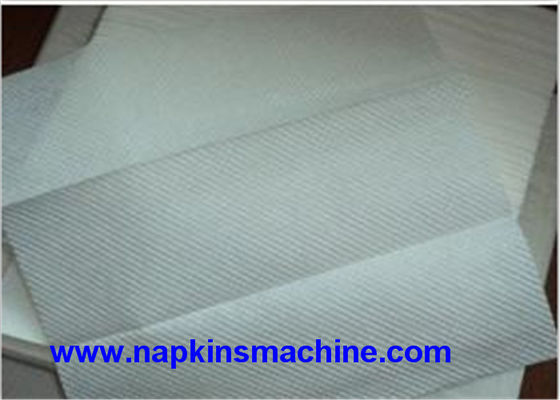

| Embossing unit | One set: Steel to steel embossing rollers |
| Dimensions | 6x2.4x2 (length x width x height);(m) |
| Weight | 4T |
Feature
1.
Folding type: V type folding,paper in upper and lower positon are jointed and folded with auto counting unit and output in stack, folding with vcacuum adsorption.
2.
Paper is conducted by spira cutting by sections with convenient adjustment in cutting tool
3.
Slitting width can be adjustable while products are in trim.
4.
Unwinding of jumbo roll is pushed an fed by the flat belt ,equipped with stepless speed regulator to adjust tension of unwinding.
5.
Adopt PLC and frequency speed regulator control
6.
It can be equipped with embossment unit as per client‘s requirement.
