90mm Size 7.5KW Siemens Toilet Tissue Making Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-TPM-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time:	40 Days After Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets Per Month

Contact Now

Detailed Product Description

Raw Paper Width:	2000mm	Speed:	200m/min
Product Type:	Toilet Tissue	Processing Type:	Paper Slitting And Rewinding
Perforating Size:	90-180mm	Automatic:	Full Automatic Line
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Toilet Paper Making Machine	Processing Type:	Toilet Paper Making Machine
High Light:	90mm Size Toilet Tissue Making Machine , 7.5KW Siemens Toilet Tissue Making Machine , 7.5KW Siemens toilet paper roll machine

Small Toilet Paper Making Machine Production Line For Tissue And Kitchen Towel

Description

Siemens PLC Small Toilet Paper Making Machine Production Line is the newest model which is upgraded on base of our quondam automatic rewinder and foreign technology.A lot of advanced control technology are used in this line,such as: Program Logic Control System;HMI,;one button chinese-english switch;synchronous frequency conversion drive;integration of mechanics,electrics and photo.It is equipped with whole trouble information.It can detect and adjust every action of the rewinder automatically to keep the rewinder in optimal situation.For example:There is a web tension system in the line,It can control speed according to the tension of web so it can adapt different type of jumbo roll.So it is the best choice to produce top-grade bathroom tissue and kitchen towel for paper company.

Parameter

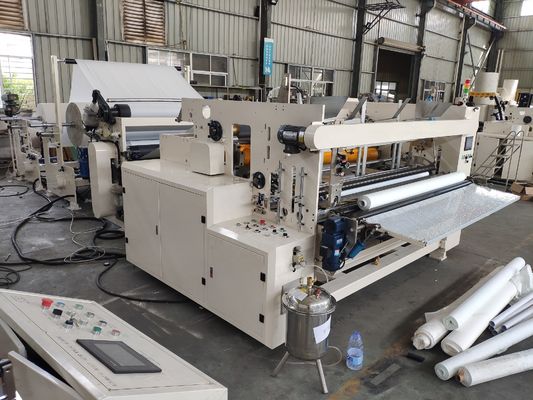

REWINDING Machine

ITEM	2900(other size to be specified)
Jumbo roll width	2850mm(other size to be specified)
Jumbo roll diameter	≤Φ2500-3000mm(other size to be specified)
Jumbo roll core size	Φ76mm,shaftless type(to order)
Finished roll diameter	Φ90~Φ135mm
Finished roll core diameter	Φ38~Φ50mm
Perforation pitch	90~160mm (other size to be specified)
Perforation	6PCS sprial upper perforation knives,improve the durability
Rewind type	Non-stop
Parameter set	HMI
Coreless rewind	Vacuum suction(patent protection)
Rewind alternation	Core insert(patent protection)
Rewind system	With core and coreless integrated
Control system	PLC,inverter,optical-electro-mechanic integration
Tension control	Encoder,PLC,inverter
Transmission	Gear,timing belt,flat belt
Machine speed	600m/min
Alternation speed	30logs/min
Backstand	1~3ply(to be confirm by client),independent drive
Power	AC380V 50HZ motor and servo motor
Pneumatic system	0.5~0.8MPa(provide by client)
T30 tail sealer	Patent protection
Gluing system	Reciprocating type spray nozzle sealing, double channel
speed	30logs/min
Tail length	5-30mm adjustable
Log diameter	Φ60-130mm
Option:
Embossing unit	Steel to rubber,point to point/nested/DECO embossing lamination system
Edge embossing unit	Steel to steel

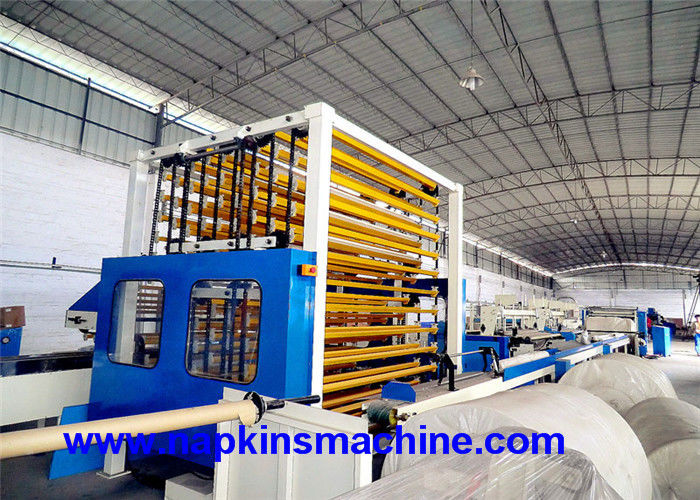

ACCUMULATOR

ITEM	2900
Log diameter	2850mm
Log diameter	Φ90~Φ135mm
Effective log Qty	300logs
Speed	20 logs/min
Power	3KW

LOG Saw

Log length	1500mm-2700mm
Log feed	Servo control feeding system
Speed	160cuts/min,4rolls/cut
Feeding channel	4channels
Grinding system	Pneumatic grinding,parameter can be set on control panel
Circular blade diameter	Φ610mm
Cutting tolerance	±1mm
Log size	Φ90~135mm
Dust suction system	Remove the tissue and grinding dust
Control system	PLC
Installation power	Main motor:15KW

Electrical Parts and other Parts brand

NO	Name	Brand	Original Place
1	Frequency Panel	Siemens	Germany
2	Motor	Siemens	Germany
3	Pneumatic Parts	Schneider	Germany
4	Knife bearing	NSK	Japan
5	Steel	SKD	Japan
6	Touch Screen	Delta	Taiwan

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
