90mm Size Rewinder 7.5KW Toilet Tissue Paper Making Machine

90mm Size Rewinder 7.5KW Toilet Tissue Paper Making Machine

90mm Size Rewinder 7.5KW Toilet Tissue Paper Making Machine
video
90mm Size Rewinder 7.5KW Toilet Tissue Paper Making Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-TPM-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time: 40 Days After Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Raw Paper Width: 2000mm Speed: 200m/min
Product Type: Toilet Tissue Processing Type: Paper Slitting And Rewinding
Perforating Size: 90-180mm Automatic: Full Automatic Line
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Toilet Paper Making Machine Processing Type: Toilet Paper Making Machine
High Light:

90mm Size Toilet Tissue Paper Making Machine

,

Rewinder 7.5KW Toilet Tissue Paper Making Machine

,

Rewinder 7.5KW tissue manufacturing machine

High Speed Toilet Roll Production Line , Toilet Roll Paper Core Machine





Description



Full automatic Toilet Tissue Paper Roll Making Machine Production Line is the newest model which is upgraded on base of our quondam automatic re-winder and foreign

technology.

A lot of advanced control technology are used in this line,such as: Program Logic Control System;HMI,;

one button chinese-english switch;synchronous frequency conversion drive;integration of mechanics,electrics and photo.It is

equipped with whole trouble information.It can detect and adjust every action of the rewinder

automatically to keep the rewinder in optimal situation.For example:There is a web tension system in

the line,It can control speed according to the tension of web so it can adapt different type of jumbo roll.

So it is the best choice to produce top-grade bathroom  tissue and kitchen towel for paper company.

The characteristics of the rewinder are as follows:
1,Unwind is equipped with closed loop frequency conversion control system.
2,When the webs do not align,you can operate on the touch button screen to move the jumbo roll till

webs align.
3,When the core unit can not detect core or core will use up, the  machine will alarm to tell operator or

workers to put some cores on the core bracket.
4,When  the  machine  is  running, web break  off suddenly for reason of speed change sharply of

problem from jumbo roll.
5, Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of

tightness in one log.
6, When a log is rewinding,the next core is ready.
7, For the reason of using advanced technology:Program Logic Control System; synch-ronous frequency conversion drive;integration of mechanics,electrics and photo.
8, When the finished log come to tail sealer, trimming, glue spraying and sealing can be finished at the

same time.
9, embossing unit and glue applicator,edge embossing unit,printing system is order by customer.





Parameter



Machine name



Fully Automatic Rewinder

Model

1092/1575/1760/2200/2500/2900

Max width

of raw paper

1350/1750/2000/2150/2400/2800 mm,

other sizes to be specified

Max outer diameter

of raw paper

1100mm, other sizes to be specified

Inner diameter

of raw paper core

3",76 mm, other sizes to be specified

Outer diameter of finished product

90-135mm, other sizes to be specified

Product diameter control

electric/pneumatic

Speed

0~200m/min

Operation speed

180m/min

Power

5.5~22kw variable frequency speed

regulating

Parameter setting

HMI(can be equiped with touch screen

 operation panel)

Procedure control

PLC

Brake

electric&pneumatic control

Pneumatic system

3HP air compressor, which the min pressure

 is 5kg/cm2pa(supplied by user)

Perforating blade

4 pcs spiral blades

Perforating Size

108mm(+-2mm)

Dimension and weight

depends on model and configuration

*Options



*Adjustable perforating

 Size

4 blades: 90-140mm

2 blades: 200-350mm

1 blade: 200-500mm (+-3mm)

, to be specified

*Backstand

1~3 ply (plies), to be specified

*Embossing

single embossing, double embossing, steel

to steel (point to point/convex to plane),

steel to felted , steel to paper woolen , steel

to rubber , pneumatic, to be specified

*Edge-embossing

independent pneumatic, steel to steel, to be

specified





ACCUMULATOR



ITEM

2900

Log diameter

2850mm

Log diameter

Φ90~Φ135mm

Effective log Qty

300logs

Speed

20 logs/min

Power

3KW



LOG Saw



Log length

1500mm-2700mm

Log feed

Servo control feeding system

Speed

160cuts/min,4rolls/cut

Feeding channel

4channels

Grinding system

Pneumatic grinding,parameter can be set on control panel

Circular blade diameter

Φ610mm

Cutting tolerance

±1mm

Log size

Φ90~135mm

Dust suction system

Remove the tissue and grinding dust

Control system

PLC

Installation power

Main motor:15KW









Electrical Parts and other Parts brand



NO

Name

Brand

Original Place

1

Frequency Panel

Siemens

Germany

2

Motor

Siemens

Germany

3

Pneumatic Parts

Schneider

Germany

4

Knife bearing

NSK

Japan

5

Steel

SKD

Japan

6

Touch Screen

Delta

Taiwan





Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

90mm Size Rewinder 7.5KW Toilet Tissue Paper Making Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic


Machine Detail Pictures:

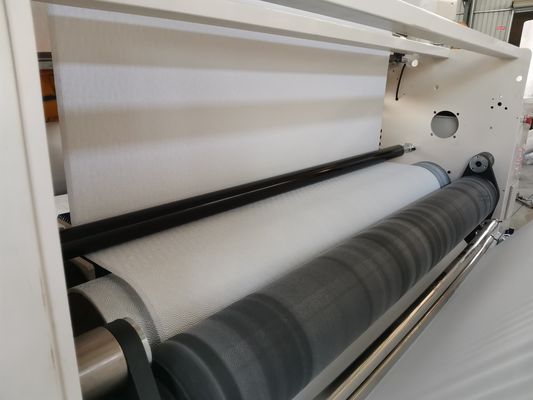

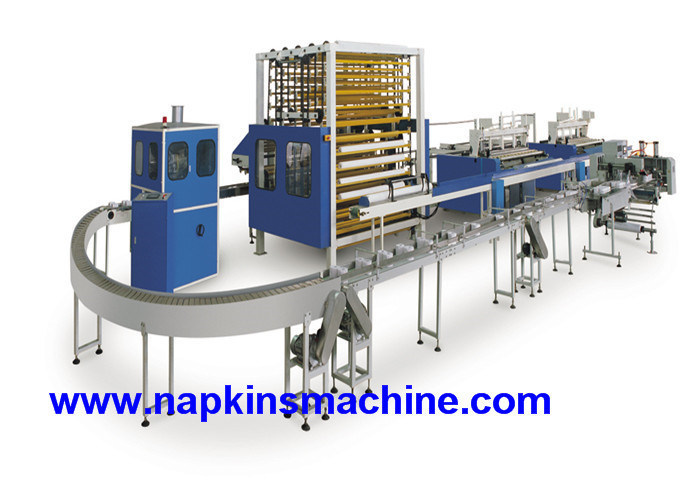

90mm Size Rewinder 7.5KW Toilet Tissue Paper Making Machine 1
