CE 1 / 6 Folding 3000 sheets / Min Tissue Napkin Machine

Product Details:

Place of Origin:	Dongguan, Guangdong, CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-NP-I

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden packing
Delivery Time:	45days after down payment
Supply Ability:	2 sets per month

Contact Now

Detailed Product Description

Folding Type:	4 FOLD AND TWO FOLD AND EIGHT FOLD	Embossing:	Steel To Paper Or Steel To Steel
Speed:	3000 Sheets Per Min	Lamination:	Point To Point Or Point To Nest
Color Printing:	1 To 4 Color Printing	Frequency Converter:	SIEMENS
Motor:	SIEMENS	Touch Screen:	SIEMENS
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	320010001800mm
Condition:	NEW	Warranty:	One Year
Product Type:	Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine	Processing Type:	Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Paper Towel Making Machine
Application:	Napkin Folding Machine To Produce Napkin Paper	Power:	5.5KW
High Light:	CE 1/6 Folding Tissue Napkin Machine , 3000sheets/Min Tissue Napkin Machine , CE 1/6 Folding napkin production machine

Six Fold Napkin Paper Making Machine 1500mm Diameter High Performance

Description

Six Fold Napkin Paper Making Machine 1500mm Diameter High Performance is used for produce square napkin tissue from big roll. The working process is from embossing , folding , cutting and so on . The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size. Our fastest china napkin machine is with two deck, three deck and four deck and six deck to choose from.

Specification

Open size of finished product	200200-430430mm (to be specified)
Diameter of Raw Paper Roll	1100mm(other size to be specified)
Inner Diameter of Paper core	76.2mm(3 inch) (other size to be specified)
Capacity	3000pieces/min
Counting Device	Electronic Counting
Embossing Roller	Woolen Roller
Power	Frequency Conversion Speed Regulator
Calendaring	Steel to steel or steel to rubber
Embossing unit	Felted roller, woolen roller, Rubber roller
Color Printing	1-2 color
Dry Device	Hot Wind Heating System

Spare Parts List

NO	ITEM	QUA
1	Plastic male knife	4
2	Band Saw	2
3	Tool Box	1
4	Grinding Stone	4

Feature

Speed: 3000 sheets / min
Folding Type: 1 / 4 and 1 / 8 or 1 / 6 or M fold or Two folding Type
Embossing: steel to steel or steel to paper.
Important parts Bearing: NSK
Important parts Steel: SKD
PLC: Delta
Frequency Converter Delta
Pneumatic Parts AIRTACK
Motor: SIEMENS
Pneumatic Parts AIRTAC
Photoelectrical switch (magic eye) Omron
20mm thickness wall board plate for back stand
40mm thickness wall board plate for embossing unit and color printing unit
30 mm thickness wall board plate for cylinder folding parts

Introduction of main parts

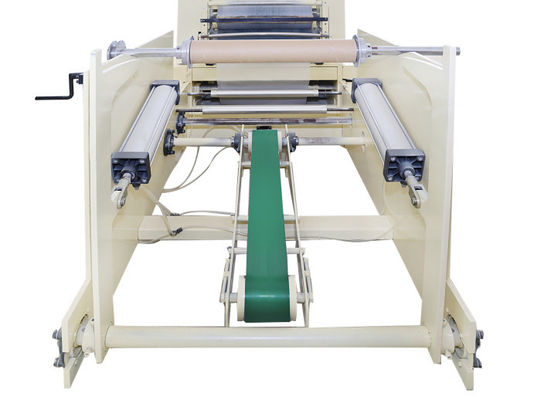

Paper-feeding part

One Layer and Belt to deliver paper and controlled by Pump

Raw Paper Manual Adjustment

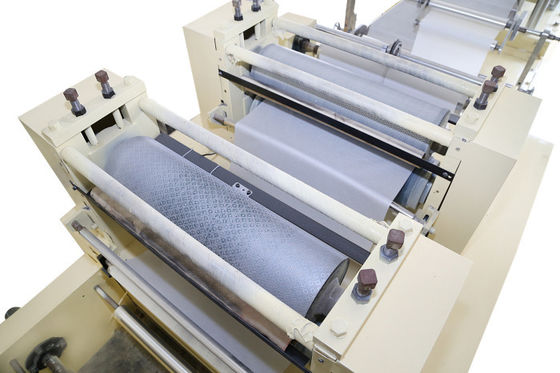

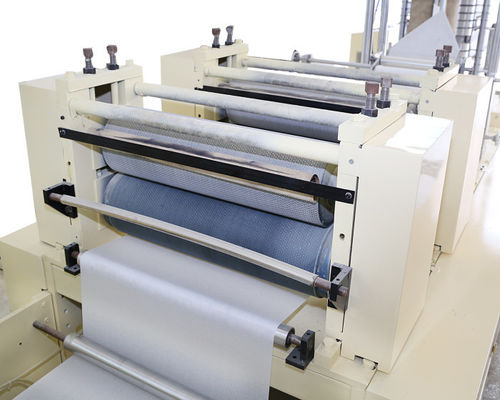

Embossing Part

One unit steel to woolen Roller

Mechanical pressure control

cotton cloth and paraffin oil Cleaning Device

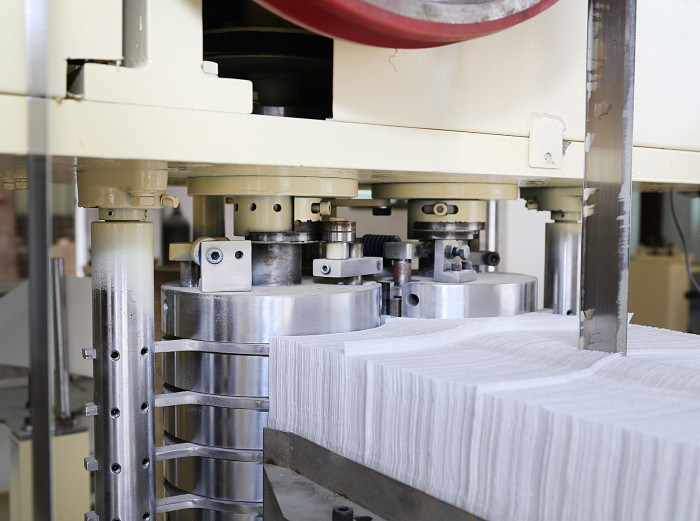

Folding Part

Leading Paper Roll Function , the folding tension of the fore part adjustable

Counting Device: Pneumatic dislocation type

Control Unit

Frequency Conversion Device

Automatic Counting Function

Emergency Device

Voltage: AC380V 50HZ Main Motor 2.2KW,

Air pressure required less than 0.5 MPA
