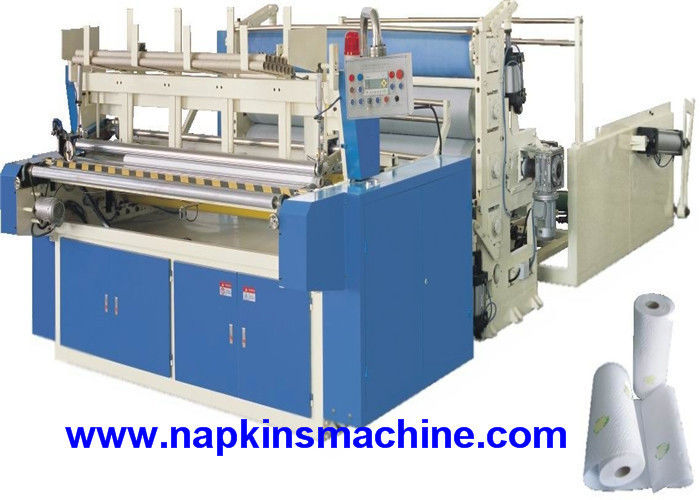

CE 2 Layer Slitting Rewinding Toilet Roll Making Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-TPM-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time:	40 Days After Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets Per Month

Contact Now

Detailed Product Description

Raw Paper Width:	1800mm	Speed:	200m/min
Processing Type:	Paper Slitting And Rewinding	Embossing:	Steel To Steel
PLC:	Delta	Motor:	Siemens
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Toilet Paper Making Machine	Processing Type:	Toilet Paper Making Machine
High Light:	CE 2 Layer Toilet Roll Making Machine , Slitting Rewinding Toilet Roll Making Machine , CE 2 Layer tissue manufacturing machine

High Capacity 2 Layer Toilet Paper Making Machine , Roll Slitting And Rewinding Machine

Description

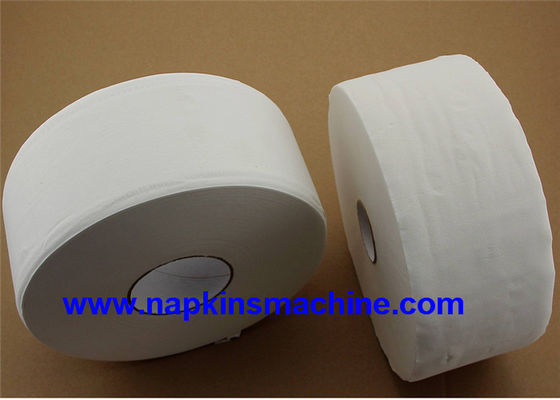

High Capacity Toilet Tissue Roll Slitting Rewinding and Perforating Machine converts the jumbo roll into small toilet roll.

1. Adopting with advanced PLC programming technology, and variable speed adjustment, electronic brake and human-machine interface operation table.

2. The multi functions mounting on this machine has won the favor and credit among users by their excellent performance.

3. The production process is: Unreeling — Embossing — Perforating— Rewinding— Tail-gluing— Edge

trimming--- Automatic core loading.

Fetures

1. PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.

2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.

3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose.

4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.

5. When raw material broken, the machine will stop automatically.

6. Each raw material unreel separately , equip with tension control.

7. Easy to adjust in order to suitable different paper core.

8. There is tail after the finished product sealed with

9. There is pneumatic jack to load the raw material on machine

As required, the machine can equip with single color or double colors printing device, the pattern is vivid.

The machine can equip with two sets of embossing device according to requirements.

Parameter

Model	1092B	1575B	2000B	2200B	2400B	2600B	2800B
Width of raw material	1200mm	1750mm	1950mm	2150mm	2350mm	2550mm	2750mm
Dia.of finished product ¢60-150mm(the tension is adjustable)
Dia.of core of finished product ¢20-50(core and coreless)
Dia.of raw material	1200mm(can accept customers’ requirement)
Thickness of raw material 14g/m2-20g/ m2
Dia of core of raw material ¢76.2mm
Perforation distance	4 knifes 100-150mm(other specifications, please point )
Reeling speed	150-200m/min
Parameter setting	Touch screen man-computer interface operation system
PLC	PLC
Raw material holder	2 layers(3layer, please order)
Pneumatic system	Pressure 5kg/cm2pa( prepared by customers)
Power	5.5-13kw
Overall Dimension (LXWXH): 6100X2650X1800-6100X4050X1800mm
Weight	3.5-7T
Embossment	Single embossment, two side embossment and steel to steel embossing(depend on selection)
Embossment
Embossment bottom roller: Felt roller, wool roller and rubber roller (depend on selection)

Electrical Parts and other Parts brand

NO	Name	Brand	Original Place
1	Frequency Panel	Siemens	Germany
2	Motor	Siemens	Germany
3	Pneumatic Parts	Schneider	Germany
4	Knife bearing	NSK	Japan
5	Steel	SKD	Japan
6	Touch Screen	Delta	Taiwan

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
