| Place of Origin: | Dongguan, Guangdong, CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-NP-I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 45days after down payment |
| Supply Ability: | 2 sets per month |
| Speed: | 3000 Sheets Per Min | Folding Type: | 4 FOLD AND TWO FOLD AND EIGHT FOLD |
|---|---|---|---|
| Embossing: | Steel To Paper Or Steel To Steel | Important Parts Bearing: | NSK |
| Thickness Of Back Stand: | 20mm | Important Parts Steel: | SKD |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 5.5KW |
| Product Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine | Processing Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Paper Towel Making Machine |
| High Light: | 3000 Sheets/Min Napkin Manufacturing Machine,3000 Sheets/Min Automatic Napkin Making Machine,CE Eight Fold Napkin Manufacturing Machine |
||

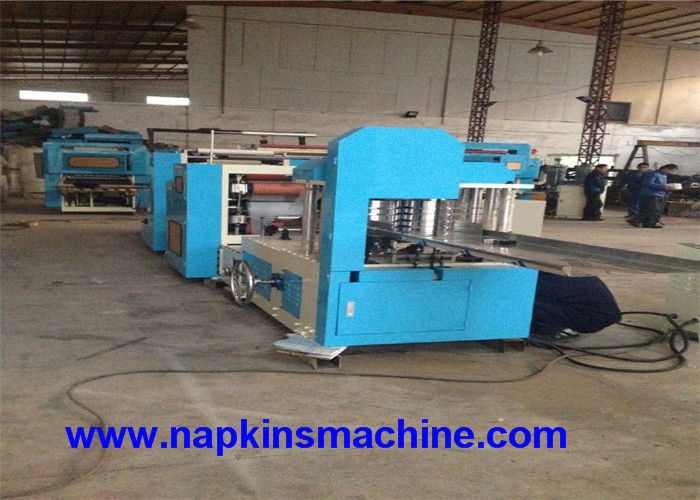

Napkin Tissue Paper Making Machines 3000 Sheets / Min Full Automatic
Description
Napkin Tissue Paper Making Machines 3000 Sheets / Min Full Automatic is to produce square napkin tissue from jumbo roll. The process including embossing , folding , cutting and so on process. The size for the machine vary from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.
Specification
|
Open size of finished product |
200*200-430*430mm (to be specified) |
|
Diameter of Raw Paper Roll |
1100mm(other size to be specified) |
|
Inner Diameter of Paper core |
76.2mm(3 inch) (other size to be specified) |
|
Capacity |
3000pieces/min |
|
Counting Device |
Electronic Counting |
|
Embossing Roller |
Woolen Roller |
|
Power |
Frequency Conversion Speed Regulator |
|
Calendaring |
Steel to steel or steel to rubber |
|
Embossing unit |
Felted roller, woolen roller, Rubber roller |
|
Color Printing |
1-2 color |
|
Dry Device |
Hot Wind Heating System |
Spare Parts List
|
NO |
ITEM |
QUA |
|
1 |
Plastic male knife |
4 |
|
2 |
Band Saw |
2 |
|
3 |
Tool Box |
1 |
|
4 |
Grinding Stone |
4 |
