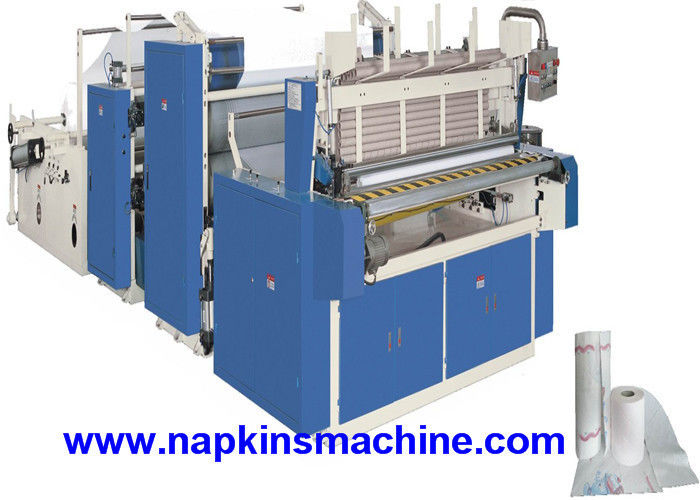

CE 3 Layer 200 m / Min 380V Toilet Roll Making Machine

CE 3 Layer 200 m / Min 380V Toilet Roll Making Machine

CE 3 Layer 200 m / Min 380V Toilet Roll Making Machine
video
CE 3 Layer 200 m / Min 380V Toilet Roll Making Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-TPM-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time: 40 Days After Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Raw Paper Width: 2200mm Speed: 200m/min
Product Type: Toilet Tissue Processing Type: Paper Slitting And Rewinding
Perforating Size: 90-500mm Bottom Embossing Roll: Steel Roller
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Toilet Paper Making Machine Processing Type: Toilet Paper Making Machine
High Light:

CE 3 Layer Toilet Roll Making Machine

,

380V Toilet Roll Making Machine

,

200m/Min tissue paper machinery

3 Layer Toilet Tissue Roll Slitting Rewinding Machine For Paper Making

Description

CE Toilet Tissue Roll Slitting Rewinding and Perforating Machine is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system
.


Parameter

Width of raw paper

1800mm

Outer diameter of raw paper

1100mm(adjustable)

Diameter of finished products

60-120mm(customizable)

Inner diameter of core(raw paper )

76.5mm(adjustable)

Programmable controller

PLC computer programming

Production speed

150-200m/min

Bottom embossing roller

Felt roller, wool roller, rubber roller, etc.(customizable)

Embossment

Single embossment, double embossment, steel to steel embossment, etc.(customizable)

Mechanical drive

Continuously variable transmission(CVT),main engine is without belt drive, ensuring accuracy pitch and length

Unwinding stand

1-3 layer

Braking system

Electronic brake, pneumatic control.

Main power

5.5KW

Raw Material Size

Max 1200×1750 mm

 Required Air Pressure

0.7 Mpa

Dimension

4800×2350×1600mm(L×W×H)

Weight

3800KG



Features of Small Toilet Paper Making Machine :

1. Advanced PLC computer programming technology is applied to full automatic toilet paper rewinding machine. The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.

2. It is equipped with frequency control, electronic brake(EABS), and touch-screen interface operation system. Automatic trimming, gluing, sealing, punching, auto feeding, removing shaft and squashing are integrated in one. Ensuring lower consumption when the roll paper is feed into band-sawing machine. So products are of high grade and high efficiency.

3. It is equipped with coreless rewinding system, reducing labor costs, making products more beautiful.

4. With high precision screwy perforation knife. With 4 perforation blades to make low noise and high definition when perforating. The perforating pitch is controlled by gearbox.

5. Automatic detection of paper break and wrap up, to guarantee the high quality of the finished rolls even in the high speed operation.

6. Coreless rewinding system has changed traditional method to take out the core to make high quality solid coreless roller. Reducing the manpower.

7. With three-layer horizontal unwinding stand, pneumatic feeding system. Each roll of raw paper has its individual control unit for tension adjusting device.

8. The web can be threaded on the machine by the two jog buttons, it is more safe and easier to feed the web.

Technical Requirement

Raw Paper

(1)Size:  Diameter≤1100mm, (Raw Paper Diameter*Width);
(3)Inner Diameter:  76.2mm
Paper-feeding part

(1)Three Layers and Belt to deliver paper and controlled by Pump;
(2)Three pieces original axis with Tension clamp (3 inch paper core and Shaft sleeve); Size adjustable;
(3)Pneumatic Loading Paper Device
(4)Raw Paper Manual Adjustment

Automatic coreless device

Embossing Part

(1)One set steel to rubber embossing unit (Embossing pattern offered by buyer)

Rewinding Part

(1)Inner Diameter Adjustable Rang:  15mm-60mm
(2)Diameter of finished products:  90-130 mm
(3)Full automatic adjust rewinding perforation size
(4)Using Upper leading paper type rewinding finished products and jog button to lead raw paper
(5)Using the international advanced PLC computer programming technology, Variable frequency speed regulation and HMI interface
(6) Sealing:  automatic trimming, adhesive, sealing

Control part

(1)Emergency Device;
(2)Voltage: AC380V 50HZ Main Motor 7.5KW,
(3)Air pressure required less than 0.5 MPA (Supplied by the user)
(4)Electromagnetic speed regulating device






Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

CE 3 Layer 200 m / Min 380V Toilet Roll Making Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic


Machine Detail Pictures:
