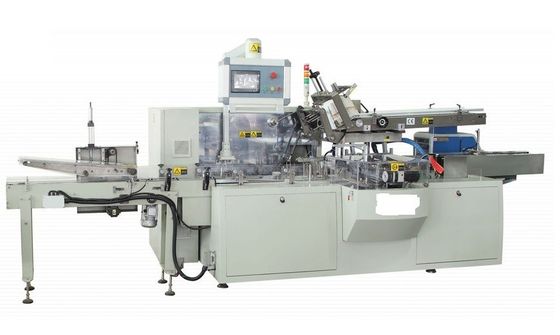

CE Certification 25 Carton / Min Facial Tissue Packing Machine

CE Certification 25 Carton / Min Facial Tissue Packing Machine

CE Certification 25 Carton / Min Facial Tissue Packing Machine
video
CE Certification 25 Carton / Min Facial Tissue Packing Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YSD-FP-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 5 Sets Per Month
Contact Now
Detailed Product Description
Application: Carton Box Packing Facial Tissue Speed: 25-60 Carton Per Min
Packing Material: CPP And So On Plastic Film PLC: SIEMENS
Motor: SIEMENS Voltage: 380V, 50 HZ OR CUSTOMERIZED
Dimension(l*w*h): 6200*2200*2200mm After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation
Condition: NEW Warranty: One Year
Type: Multi-Function Packaging Machine, Other, Packaging Line Function: Sealing, Wrapping, Filling, Gluing
Automatic Grade: Automatic Product Type: Box Packing Machine
Processing Type: Box Packing Machine
High Light:

CE Certification Facial Tissue Packing Machine

,

25Carton/Min Facial Tissue Packing Machine

,

CE Certification facial tissue machine

CE Certification 25 Carton / Min Facial Tissue Packing Machine



Applications:



It is suitable for automatic boxing of napkins, sanitary towels, pads, wet tissues,etc. Our machine has passed CE certification. It has been used by many domestic and international enterprises in such industries as APP,Fine, Nepia, Vinda, Deli, TRUECOLOR, BEIFA, brother, GLAD, etc. Also we can provide personalization design to meet the requirements of different customers. Meanwhile, we can provide resources and technical support to help the customer to build their ideal factory.



Machine Feature

1,High output. The stable speed can reach 80 boxes/minute.

2,Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.

3,Rapid production changing. It only takes 10-20 minutes to change the specifications.

4,Convenient operation. It is easy to control the servo paper feeding and PLC control system.

5,Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.



Application range:

It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,cotton tissues etc.



Main performances and structure features:

  1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
  2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
  3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
  4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
  5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
  6. Change of specifications does not need change of molds, but can be realized through adjustment.
  7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
  8. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.



Main technical parameters

Items Technical parameters
Packing dimension (mm) Max:L240mm×W120mm×H100mm
Packing dimension (mm) Min:L110mm×W110mm×H30mm
Paper requirement 300-400G/M3
packing speed(bags/min) 85pcs/min
Glue machine power supply(KW) 2.32
Packing machine power supply(KW) 2.74
Totally power supply(KW) 5.1
Electric type 3phase 4wire
Machine noise(DB) ≦80
Weight (KG) 3500
Outline dimension (mm) 3513×3023×1650
Air supply(MPA) 0.5-0.8




Machine Configuration

PLC Panasonic
Touch screen Omron
Frequency converter 1.5KW Panasonic
Frequency converter 0.4KW Panasonic
Servo 0.75KW Delta
Servo 0.75KW Delta
Encode 600 wire Autonics
Lower pressure Schneider









Carton Box Facial Tissue



CE Certification 25 Carton / Min Facial Tissue Packing Machine 0

CE Certification 25 Carton / Min Facial Tissue Packing Machine 1



CE Certification 25 Carton / Min Facial Tissue Packing Machine 2



Application range:

It is suitable for automatic boxing of facial tissue,square tissue,pocket tissue,cotton tissue etc.



Five innovations of the machine:

1. High output.The stable speed can reach 80 boxes/min.

2. Complete functions.The machine is suitable for various applications such as semi-cover/full-cover,or high paper and low box/low paper and high box.

3. Rapid production.It only takes 10-20 minutes to change the sizes.

4. Convenient operation.It is easy to control the servo paper feeding and PLC control system.

5. Low cost.Use the import glue machine with a nozzle of 0.3-0.36mm is adopted and the glue-spread is little.



Main performances and structure features:



1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.

2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.

3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.

4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.

5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.

6. Change of specifications does not need change of molds, but can be realized through adjustment.

7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.

8. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.



Performance technical parameters and Electrical List:



Item/model SYM-100
Paper quality of carton 300-400g/m3
Maximum packing specification L(100-240)mm×W(100-120)mm×H(20-90)mm
Packing speed 50-80 boxes/minute
Hot melt machine power 2.32KW
Motor power 2.74KW
Total power 5.1KW
Power supply type 3phase 4wire 380V 50Hz
Machine noise ≤80dB
Air supply 0.5-0.8 Mpa
Air consumption 120-160L/min
Outline dimensions Main machine L3250×W1650×H1800mm
Conveying mechanism L2000×W660×H1200mm
Machine weight 2000Kg



Item Name Brand Country
1 Touch screen Omron Japan
2 PLC Panasonic Japan
3 Encoder Omron Japan
4 Combination switch Schneider French
5 Frequency Panasonic Japan
6 photoelectric switch SICK Germany
7 proximity switch Omron Japan
8 Intermediate Relay Omron Japan
9 Breaker Schneider French
10 Button switch Schneider French
11 AC contactor Schneider French
12 Emergency stop switch Schneider French
13 Switch power supply Delta Taiwan
14 Air switch Schneider French
15 Magnetic valve JELPC Germany
16 Vacuum generator JELPC Germany
17 Vacuum cup AIRBEST Swiss
18 Decelerating motors HANXING China
19 Servo Motor Delta Taiwan
20 Conveyor motor DELI China
21 Timing belt SONTIAN Japan
22 Timing belt EHRE Germany
23 Glue machine Nordson America



(This list is for reference only,in the actual production there may be some difference with this list)





High Speed Automatic Box Facial Tissue Paper Packing Machine Manufacturer

CE Certification 25 Carton / Min Facial Tissue Packing Machine 4
