CE N Fold 1000 Sheets / Min Tissue Paper Machinery

CE N Fold 1000 Sheets / Min Tissue Paper Machinery

CE N Fold 1000 Sheets / Min Tissue Paper Machinery
video
CE N Fold 1000 Sheets / Min Tissue Paper Machinery
Product Details:
Place of Origin: China
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-PT-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: 50 work days after down payment
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Fold Type: Single Fold Speed: 1000 Sheets Per Min
Embossing: Steel To Steel Frequency Converter: Delta
Pneumatic Parts: AIRTAC Photoelectrical Switch (magic Eye): Omron
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Towel Machine Processing Type: Paper Towel Machine
High Light:

CE N Fold Tissue Paper Machinery

,

1000 Sheets/Min Tissue Paper Machinery

,

1000 sheets/Min tissue paper maker

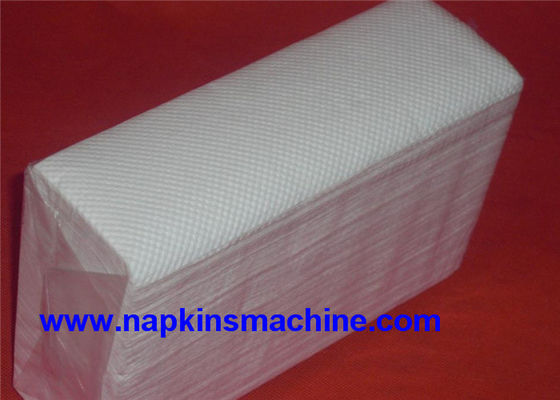

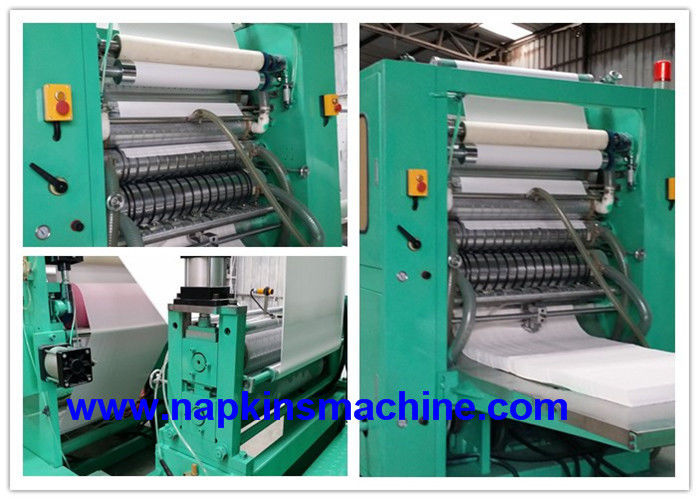

N Fold Hand Towel Paper Making Machine For Kraft Paper Hand Towel

Specification for N FOLD Paper Towel Machine_20210...

Description



N Fold Hand Towel Paper Making Machine For Kraft Paper Hand Towel is used to fold the hand towel or wet-strength paper into N-shaped after embossing, cutting and folding on the rollers. With vacuum folding system, automatic-stacking unit, this machine features in C and counting is precicous.





Function and Features



> Maximum production speed is up to 900 pieces per min. per line

> Advanced vacuum absorption folding technique is adopted

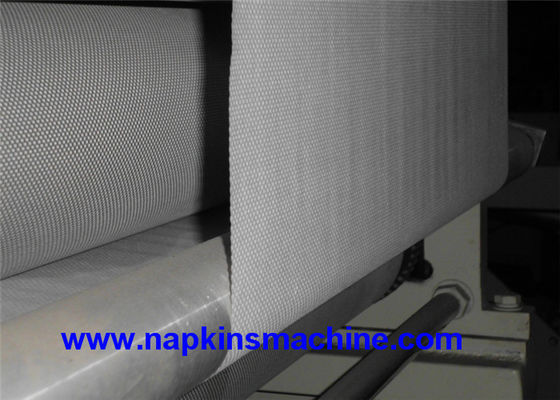

> Pneumatic steel-steel embossing is easy for tissue passing and prevents tangle

> Synchronous teeth belt transmission shows high transmission precision, low noise

  requiring no maintenance

> The raw paper has broad suitability, with weight 33-45g/m2 (single layer)



The Main Technical Parameters





odel

2L

3L

4L

5L

Max.width of base paper

500mm

750mm

950mm

1200mm

Longitudinal cutting knife

1gruop

2gruop

3gruop

4gruop

Vacuum system

11KW

15KW

18.5KW

22KW

Main unit power

3KW

4KW

4KW

5.5KW

Overall size(L*W*H)

4000*1500*1900mm

4000*2100*1900mm

4000*2100*1900mm

4000*2300*1900mm

Overall weight

3000kg

4000kg

4500kg

5000kg

Folding speed

400~800pcs/min/row

Max. diameter of base paper

1200mm

Core inner diameter

76.2mm

Pressure of pneumatic system

>4kg/cm2(User supplied)



Multifold Paper Hand Towel Making Machine
