Place of Origin: | CHINA |
Brand Name: | YU SHENG DA |
Certification: | CE |
Model Number: | YD-TPM-I |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free |
Delivery Time: | 40 Days After Down Payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Sets Per Month |
Raw Paper Width: | 1800mm | Speed: | 200m/min |
---|---|---|---|
Product Type: | Toilet Tissue | Processing Type: | Paper Slitting And Rewinding |
Perforating Size: | 90-500mm | Touch Screen: | Delta |
Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
Warranty: | One Year | Power(w): | 7.5KW |
Product Type: | Toilet Paper Making Machine | Processing Type: | Toilet Paper Making Machine |
High Light: | CE Rewinding Toilet Roll Making Machine,500mm Size Recycled Toilet Roll Making Machine,CE Rewinding tissue paper maker |

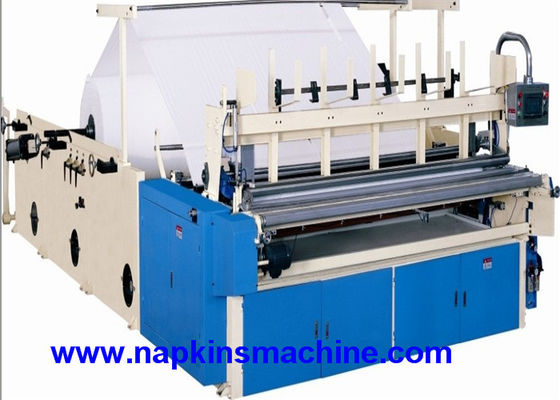

Recycled Toilet Paper Making Machine With Color Printing And Rewinding Machine
Description
CE Toilet Tissue Roll Embossing Point to Point Lamination Machine is to perforate and rewind the parent roll raw paper into various sizes of small toilet paper roll according to the requested. The finished product is neat, in good order and with equality tension.It's the best choice for new tissue paper factory.
Equipment Function & Character:
1. The machine is with international advanced PLC programmable controlling technical, frequency conversion speed-regulator, electronic brake and man-machine interface operation table. The multi functions mounting on this machine has won the favor and credit among users by their profound practicability.
2. Under European CE standard designing, Passed CE certificate, With CE or UL certificate for Electric Parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. Most of parts are precisely processed by numerical-control machine;the key mechanical parts are under CNC processing; while the main outsourcing parts are world famous brand.
4. Automatic roll core splicing unit without manual core feeding; Auto edge trimming, glue spraying and sealing synchronously in one time, which had materialized the popular technique of edge-trimming and tail-gluing as well as auto pushing out the final products after rewinding;
5. Monitoring system on broken paper or torn edge under high-speed running the equipment; Jumbo roll tension controlling system; Pneumatic lifting the jumbo roll;
6. It can work together with color printing and rewinding machine or glue laminating unit to produce kitchen towel.
Parameter
Machine Model |
1092A |
1575A |
2200A |
2600A |
2800A |
|
Width (mm) |
1200 |
1800 |
2200 |
2600 |
2800 |
|
Finished Products Diameter(mm) |
Φ 60~130(Tightness can be adjustable) |
|||||
Finished Products’ Inner Diameter(mm) |
Φ32~50 mm |
|||||
Jumbo roll diameter (mm) |
≤Φ 1200 (Other sizes can be ordered) |
|||||
Jumbo Roll Inner Diameter |
3”,76.2 mm (other sizes can be ordered) |
|||||
Perforation distance (mm) |
100-150mm (It can be adjustable, other sizes can be produced as per requirement) |
|||||
Production speed |
130~180 m/min |
|||||
Parameter set |
Touching-screener Multi-menu Man-machine Interface Operation System |
|||||
Mechanical driving |
Driven by stepless speed-regulator to guarantee the precise length of final products. |
|||||
Embossment unit |
Single embossment, Double embossment, Steel to rubber/wool/steel embossment; |
|||||
Jumbo roll stand |
1-3 plies (ply quantity can be ordered) |
|||||
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should prepare by themselves) |
|||||
Machine Power |
5.5-15KW(Frequency speed-regulate) (380V 50HZ) |
|||||
Overall size of equipment (L x W x H) |
4.2 x 2.6 x 1.4m |
|||||
Weight of equipment |
About 2200kg |
Technical Requirement
Raw Paper
(1) Size: Diameter≤1100mm, (Raw Paper Diameter*Width);
(3) Inner Diameter: 76.2mm
Paper-feeding part
(1) Three Layers and Belt to deliver paper and controlled by Pump;
(2) Three pieces original axis with Tension clamp (3 inch paper core and Shaft sleeve); Size adjustable;
(3) Pneumatic Loading Paper Device
(4) Raw Paper Manual Adjustment
Automatic coreless device
Embossing Part
(1) One set steel to rubber embossing unit (Embossing pattern offered by buyer)
Rewinding Part
(1) Inner Diameter Adjustable Rang: 15mm-60mm
(2) Diameter of finished products: 90-130 mm
(3) Full automatic adjust rewinding perforation size
(4) Using Upper leading paper type rewinding finished products and jog button to lead raw paper
(5) Using the international advanced PLC computer programming technology, Variable frequency speed regulation and HMI interface
(6) Sealing: automatic trimming, adhesive, sealing
Control part
(1) Emergency Device;
(2) Voltage: AC380V 50HZ Main Motor 7.5KW,
(3) Air pressure required less than 0.5 MPA (Supplied by the user)
(4) Electromagnetic speed regulating device
Electrical Parts and other Parts brand
NO |
Name |
Brand |
Original Place |
1 |
Frequency Panel |
Siemens |
Germany |
2 |
Motor |
Siemens |
Germany |
3 |
Pneumatic Parts |
Schneider |
Germany |
4 |
Knife bearing |
NSK |
Japan |
5 |
Steel |
SKD |
Japan |
6 |
Touch Screen |
Delta |
Taiwan |
Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:

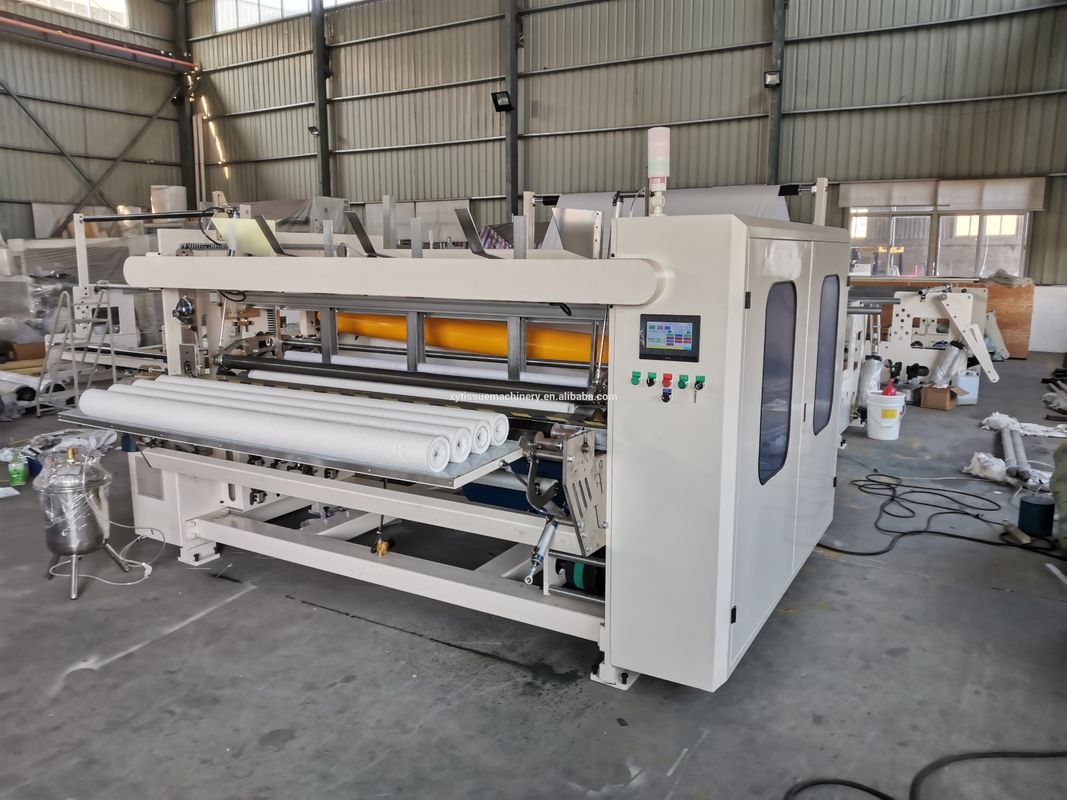

Machine Detail Pictures:
Deco Color Lamination Parts:

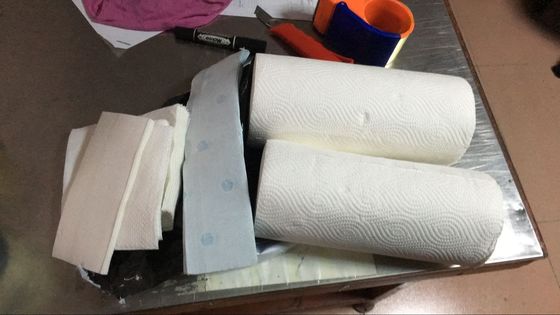

Finished Products:
