Place of Origin: | CHINA |
Brand Name: | YU SHENG DA |
Certification: | CE |
Model Number: | YSD-FP-I |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case |
Delivery Time: | 50 Days after down payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 5 Sets Per Month |
Application: | Carton Box Packing Facial Tissue | Speed: | 25-60 Carton Per Min |
---|---|---|---|
Packing Material: | CPP And So On Plastic Film | PLC: | SIEMENS |
Motor: | SIEMENS | Voltage: | 380V, 50 HZ OR CUSTOMERIZED |
Dimension(l*w*h): | 3200*1000*1800mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation |
Condition: | NEW | Warranty: | One Year |
Type: | Multi-Function Packaging Machine, Other, Packaging Line | Function: | Sealing, Wrapping, Filling, Gluing |
Automatic Grade: | Automatic | Product Type: | Box Packing Machine |
Processing Type: | Box Packing Machine |
CE Standard New Box Tissue Packaging Machine For Interfold Facial Tissue
Applications:
It is suitable for automatic boxing of napkins, sanitary towels, pads, wet tissues,etc. Our machine has passed CE certification. It has been used by many domestic and international enterprises in such industries as APP,Fine, Nepia, Vinda, Deli, TRUECOLOR, BEIFA, brother, GLAD, etc. Also we can provide personalization design to meet the requirements of different customers. Meanwhile, we can provide resources and technical support to help the customer to build their ideal factory.
Machine Feature
1,High output. The stable speed can reach 80 boxes/minute.
2,Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.
3,Rapid production changing. It only takes 10-20 minutes to change the specifications.
4,Convenient operation. It is easy to control the servo paper feeding and PLC control system.
5,Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.
Application range:
It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,cotton tissues etc.
Main performances and structure features:
Main technical parameters
Items | Technical parameters |
Packing dimension (mm) | Max:L240mm×W120mm×H100mm |
Packing dimension (mm) | Min:L110mm×W110mm×H30mm |
Paper requirement | 300-400G/M3 |
packing speed(bags/min) | 85pcs/min |
Glue machine power supply(KW) | 2.32 |
Packing machine power supply(KW) | 2.74 |
Totally power supply(KW) | 5.1 |
Electric type | 3phase 4wire |
Machine noise(DB) | ≦80 |
Weight (KG) | 3500 |
Outline dimension (mm) | 3513×3023×1650 |
Air supply(MPA) | 0.5-0.8 |
Machine Configuration
PLC | Panasonic |
Touch screen | Omron |
Frequency converter 1.5KW | Panasonic |
Frequency converter 0.4KW | Panasonic |
Servo 0.75KW | Delta |
Servo 0.75KW | Delta |
Encode 600 wire | Autonics |
Lower pressure | Schneider |

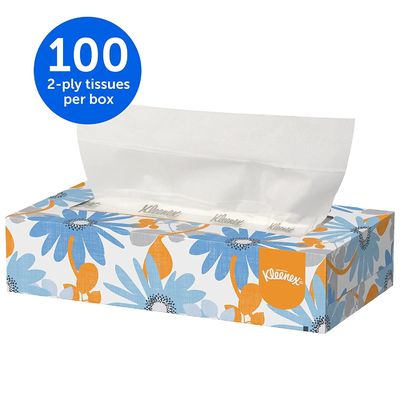

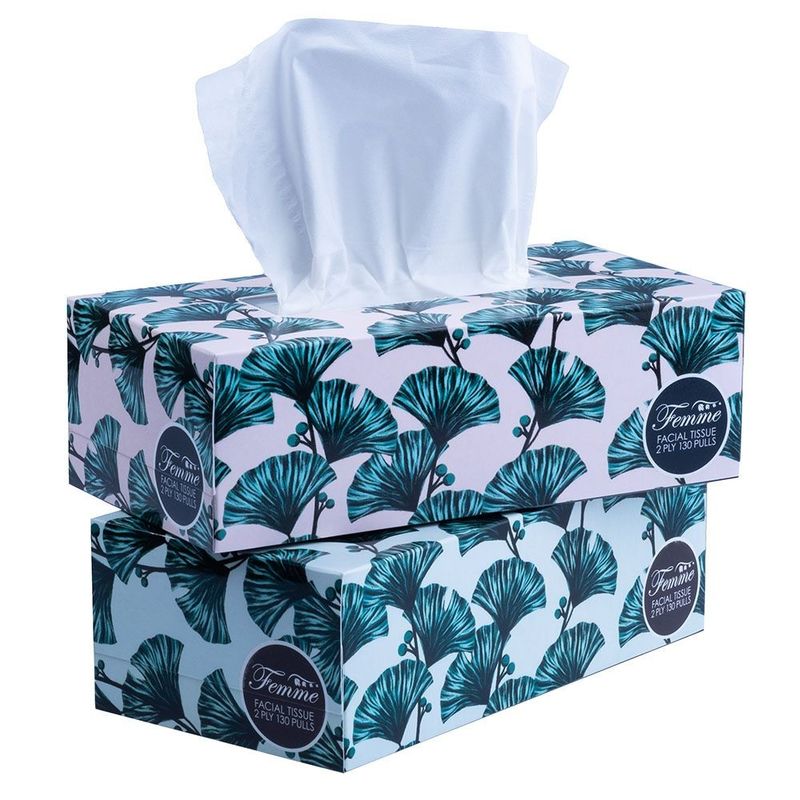

Carton Box Facial Tissue
Application range:
It is suitable for automatic boxing of facial tissue,square tissue,pocket tissue,cotton tissue etc.
Five innovations of the machine:
1. High output.The stable speed can reach 80 boxes/min.
2. Complete functions.The machine is suitable for various applications such as semi-cover/full-cover,or high paper and low box/low paper and high box.
3. Rapid production.It only takes 10-20 minutes to change the sizes.
4. Convenient operation.It is easy to control the servo paper feeding and PLC control system.
5. Low cost.Use the import glue machine with a nozzle of 0.3-0.36mm is adopted and the glue-spread is little.
Main performances and structure features:
1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
6. Change of specifications does not need change of molds, but can be realized through adjustment.
7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
8. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.
Performance technical parameters and Electrical List:
Item/model | SYM-100 | |
Paper quality of carton | 300-400g/m3 | |
Maximum packing specification | L(100-240)mm×W(100-120)mm×H(20-90)mm | |
Packing speed | 50-80 boxes/minute | |
Hot melt machine power | 2.32KW | |
Motor power | 2.74KW | |
Total power | 5.1KW | |
Power supply type | 3phase 4wire 380V 50Hz | |
Machine noise | ≤80dB | |
Air supply | 0.5-0.8 Mpa | |
Air consumption | 120-160L/min | |
Outline dimensions | Main machine | L3250×W1650×H1800mm |
Conveying mechanism | L2000×W660×H1200mm | |
Machine weight | 2000Kg |
Item | Name | Brand | Country |
1 | Touch screen | Omron | Japan |
2 | PLC | Panasonic | Japan |
3 | Encoder | Omron | Japan |
4 | Combination switch | Schneider | French |
5 | Frequency | Panasonic | Japan |
6 | photoelectric switch | SICK | Germany |
7 | proximity switch | Omron | Japan |
8 | Intermediate Relay | Omron | Japan |
9 | Breaker | Schneider | French |
10 | Button switch | Schneider | French |
11 | AC contactor | Schneider | French |
12 | Emergency stop switch | Schneider | French |
13 | Switch power supply | Delta | Taiwan |
14 | Air switch | Schneider | French |
15 | Magnetic valve | JELPC | Germany |
16 | Vacuum generator | JELPC | Germany |
17 | Vacuum cup | AIRBEST | Swiss |
18 | Decelerating motors | HANXING | China |
19 | Servo Motor | Delta | Taiwan |
20 | Conveyor motor | DELI | China |
21 | Timing belt | SONTIAN | Japan |
22 | Timing belt | EHRE | Germany |
23 | Glue machine | Nordson | America |
(This list is for reference only,in the actual production there may be some difference with this list)
