| Place of Origin: | China |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-PT-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 50 work days after down payment |
| Payment Terms: | L/C, T/T |
| Fold Type: | C Fold | Speed: | 1000 Sheets Per Min |
|---|---|---|---|
| Embossing: | Steel To Steel | Unfolding Size: | 230*250mm |
| Pneumatic Parts: | AIRTAC | Photoelectrical Switch (magic Eye): | Omron |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Towel Machine | Processing Type: | Paper Towel Machine |
| High Light: | CE Two Fold Paper Towel Making Machine,3200sheets/Min Paper Towel Making Machine,380V 50HZ tissue paper maker |
||
Paper Towel Making Machine , Two Fold Towel Printing Machine
Specification for V FOLD Paper Towel Machine_20210...
Description
Paper Towel Making Machine , Two Fold Towel Printing MachineProduce Two FOLD Hand Towel with embossing and cutting off the towel paper This kind of towel paper is used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .The folding, cutting ,counting etc several processes are going together.
Function and Features
1. Automatic counting sub-bit row of the output
2. Spiral blade shear, vacuum adsorption folding
3. Unwinding stepless speed regulation, can be adapted to high and low tension of the base paper
4. Electronically Controlled Pneumatic, easy to operate,two steel to rubber embossing,edge press device
5. Product width of the range, user-friendly marketing
Specification:

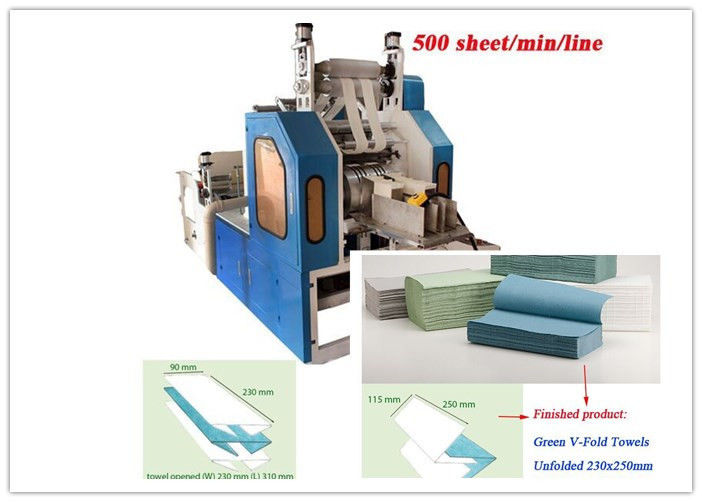

Machine Detail Pictures:

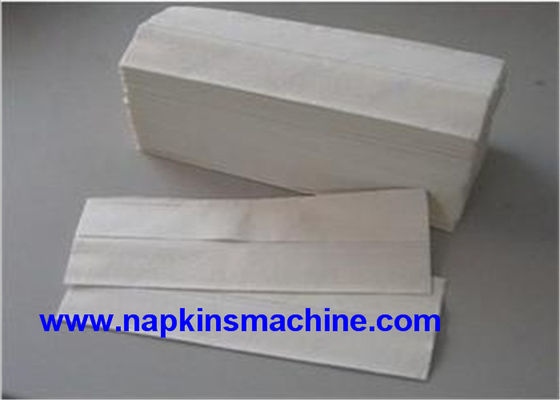

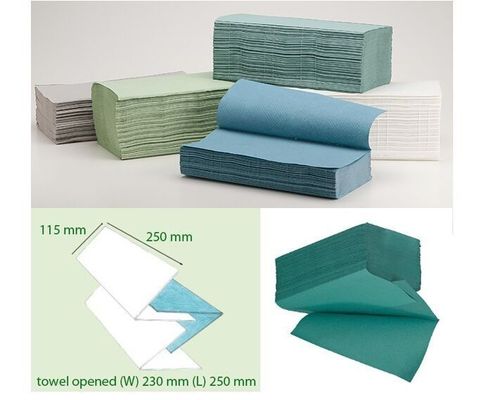

Finished Products Pictures:
Optional machine:
