CE Wrapping PLC Automatic Toilet Paper Making Machine

CE Wrapping PLC Automatic Toilet Paper Making Machine

CE Wrapping PLC Automatic Toilet Paper Making Machine
CE Wrapping PLC Automatic Toilet Paper Making Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-TPM-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time: 40 Days After Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Raw Paper Width: 2000mm Speed: 200m/min
Product Type: Toilet Tissue Processing Type: Paper Slitting And Rewinding
Perforating Size: 90-180mm Automatic: Full Automatic Line
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Toilet Paper Making Machine Processing Type: Toilet Paper Making Machine
High Light:

CE Wrapping Automatic Toilet Paper Making Machine


PLC Automatic Toilet Paper Making Machine


CE Wrapping tissue paper machinery

Two Rolls Wrapping Toilet Roll Production Line , PLC Program Control

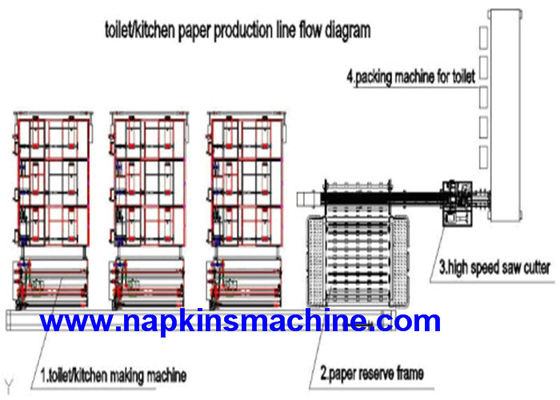

Two Rolls Wrapping Toilet Tissue Paper Roll Making Machine Production Line consist of a rewinding unit, accumulating unit, automatic transfer unit, and an automatic log saw, which are all synchronized through advanced operating system. Throughout the line we have installed web tension controllers, abnormality sensors, emergency and safety stops, and a synchronized frequency conversion driver to ensure flawless production.

The process starts by loading the specified number of jumbo rolls using automatic pneumatic loading system into their respective positions. Then they are threaded through the machine with jogging buttons through the various stages until reaching the starting position on the premade core.  Then with a push of a button the production cycle begins.

 This cycle starts by winding the web of tissue onto its core and driving them into trimming and tail sealing. Thereafter the finished log is ejected into the accumulator which stores any specified number of logs, and automatically feeds them in pairs of two into the in feed conveyor of the Log Saw. With advanced cutting and blade sharpening system, this automatic log saw cuts the two logs into the desired final roll width in a precise and electronically controlled manner. They come out of the log saw by two exit conveyors for further packing according to customer marketing needs.



Technicals Parameters



Full-automatic rewinding machine


Machine Model










Width (mm)










Finished Products Diameter

f 90 - 150 (Tightness can be adjustable)

Finished Products Inner Diameter

f 30 - 50 mm

Jumbo roll diameter (mm)

f 1500(Other sizes can be ordered)

Jumbo Roll Inner Diameter

3”, 76.2 mm (other sizes can be ordered)

Perforation distance (mm)

4(blade): 90 - 160mm, 2 (blade): 180 - 320mm

Air pneumatic separating unit

Production speed

180 - 220 m/min

Parameter set

Man-machine Interface Operation System

Programmable controller

PLC program

Mechanical driving

Driven by step less speed-regulator to guarantee the precise length of final products.

Jumbo roll stand

2 plies (can be ordered)

Air pneumatic system

5 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves)


18.5KW  (Frequency speed-regulate )

Overall size

9 X 3.2 X 1.8 M

Weight of equipment

4000 - 15000kg (approximately)

Chosen items (Should be ordered separately)


Single embossment, double embossment, steel to steel embossment

Jumbo roll stand

1-3 plies

Jumbo roll stand driving

Driven by variator

Rewinding unit

Non-core unit

Printing unit

Heliotype printing unit

Side rolling embossment

Steel to steel

Perforation mode

Air pneumatic separating unit

Smooth embossment

Steel to steel, Steel to rubber ;

Kitchen towel

Point-to-point embossment glue laminating system (should be ordered separately); No counter point embossment glue laminating system (separate order).

Remote telecom service system

Should be ordered separately.


 Large paper cutter



Rolled core length


Different in rolled core length, different in machine price.

Finished products diameter

105±5mm (other sizes from 90-150mm can be ordered)

Horizontal cutting length

Changeable, Servo control, Tolerance ±1mm

Machine speed

(100-160 cuts/min, 2 rolls/cut)

Operation speed

(140cuts/min, 2 rolls/cut)

Function model

Spiral rotating the round blade & Continued Paper Roll Marching

Driving control

Servo motor driving

Knife grinding

Pneumatic grinding wheel, time can be controlled on panel.

Round blade outer diameter


Clamping tool

Exchangeable (outer diameter of finished core can be designated.)

Finished products specification:

Rolled core outer diameter 90mm-150mm

Cutting length   50mm-300mm

Left-over length 25mm-50mm


10 KW

Machine size

LXWXH (M) = (7-9) X 2 X 1.8 M

Weight of equipment





Full-automatic medium size packing machine


(1) . Wrap page: toilet paper roll
(2) .  Wrapper: CPP packaging film

      2.1. Thickness of the packaging film: 0.018mm~0.06 mm;
      2.2. Maximum diameter of packaging film: 380mm?
      2.3. Core diameter of packaging film: 75mm~78mm;
(3) . Speed (P/min): Maximum speed  120
(4) . Over size: 6630mm x 1035mm x1 700mm
(5) . Power: 9KW
(6) .  Weight: 1500kg





1Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.

2  . Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

3 . Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

4 . Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

5 . Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.


Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

CE Wrapping PLC Automatic Toilet Paper Making Machine 0



Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.


Jumbo Roll Max. width
Max. Jumbo Roll diameter
2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings
Standardφ3"(76.2mm) (Other sizes specified)
Data setting
Programming controller
PLC, touch screen
Operate Speed
0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
Finished Log Inner dia.
Perforation Distance
Mechanical driving
Driving by Stepless gear box
Air -system
3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving
Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit
Steel to rubber
6x3x1.7 (length x width x height);(m)
3T-4T(depends on the Model you have )
Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit
1-2 Colors can be order
Lamination Unit
Can be Ordered
Edge-Embossing Line
Steel to Steel Operate by Pneumatic

Machine Detail Pictures:

CE Wrapping PLC Automatic Toilet Paper Making Machine 1
CE Wrapping PLC Automatic Toilet Paper Making Machine 2
CE Wrapping PLC Automatic Toilet Paper Making Machine 3

Deco Color Lamination Parts:

CE Wrapping PLC Automatic Toilet Paper Making Machine 4
CE Wrapping PLC Automatic Toilet Paper Making Machine 5
CE Wrapping PLC Automatic Toilet Paper Making Machine 6

Finished Products:

CE Wrapping PLC Automatic Toilet Paper Making Machine 7
CE Wrapping PLC Automatic Toilet Paper Making Machine 8
CE Wrapping PLC Automatic Toilet Paper Making Machine 9
