| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-FTM-I |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 40 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets Per Month |
| Motor: | Siemens | Touch Screen: | Siemens |
|---|---|---|---|
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Facial Tissue Making Machine | Processing Type: | Facial Tissue Making Machine |
| High Light: | Ceramic Anilox Facial Tissue Paper Machine,13g/M2 Facial Tissue Paper Machine,Pneumatic Counting Toilet Tissue Machine |
||
Automatic Facial Tissue Paper Making Machine And Processing Machine

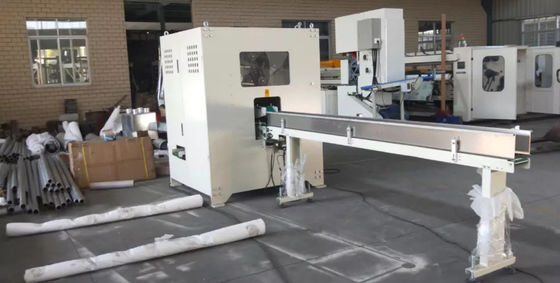

The whole line is with Facial tissue machine, conveyor, facial tissue log saw cutting machine and plastic film packing machine
Description
Automatic Facial Tissue Paper Making Machine And Processing Machine is with the functions of embossing, slitting, folding, counting, and dividing,auto-taking, auto-transporting, auto packing in one, which the whole production process is fullfiled automatically. this production line has the advantages of simple operation,high production efficiency, and keeping the consistent of the finished products, with the fully automatic production, the amount of production labour can be reduce, so to save the production and managing cost greatly.
Specification
|
Model |
2L |
3L |
4L |
5L |
6L |
10L |
Other sizes to be specified. |
||
|
Jumbo roll width |
400mm |
600mm |
800mm |
1000mm |
1200mm |
2000mm |
|||
|
Unfolded size |
200x200mm±2mm 210x210mm±2mm 250x230mm±2mm |
||||||||
|
Folded size |
200x100mm±2mm 210x105mm±2mm 250x115mm±2mm |
||||||||
|
Jumbo roll diameter |
≤1200mm. |
||||||||
|
Inner core diameter |
3”(76mm) |
||||||||
|
Raw Material |
13-18 g/m2 for 2 plies, 18-35 g/m2 for single ply wooden pulp tissue. Other g/m2 to be customized. Other material like Nonwoven or Airlaid to be customized. |
||||||||
|
Production Speed |
900-1200 sheet/min/lane, depending on sizes, paper quality and workers operation. |
||||||||
|
Folding Section |
Vacuum folding with vacuum pump. V fold/Interfold. N fold, M fold, C fold or special folding to be customized. Upper blades fixed, bottom blades rotating. |
||||||||
|
Unwinder Section |
Two Back Stand. Automatic loading jumbo roll pneumatically. With wide flat belt driven. With tension system manually adjusted by cone pulley Driven by independent motor, each jumbo roll controlled by an independent motor. NO chain. |
||||||||
|

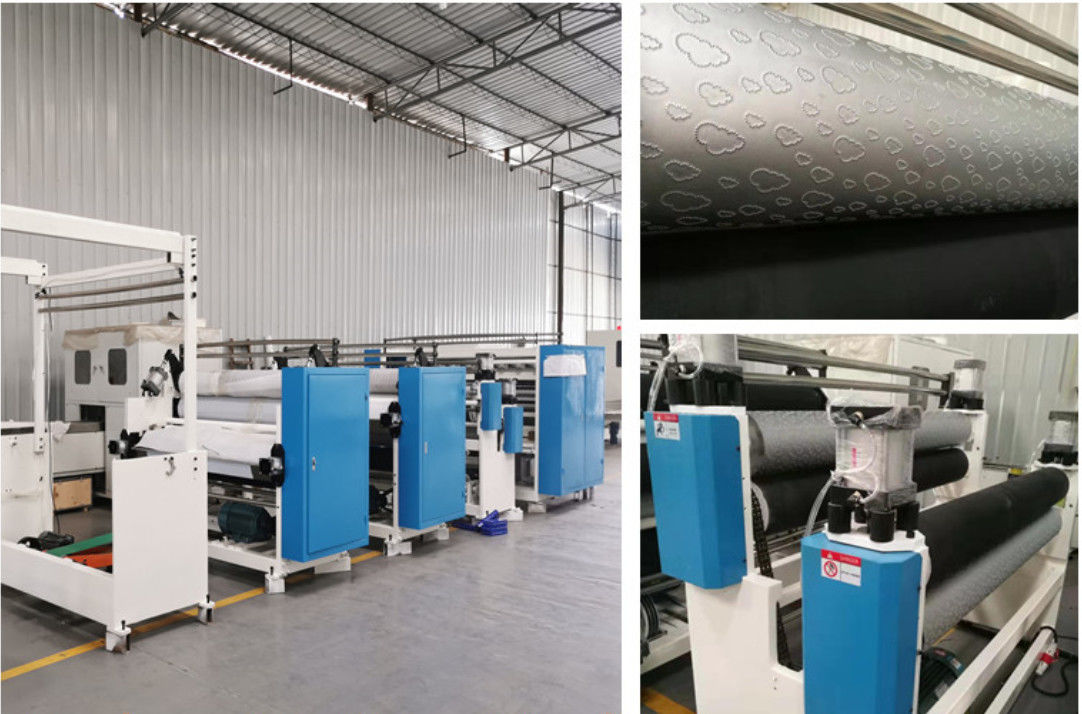

Embossing section |
Steel to rubber embossing units. Pneumatic control system. Controlled by cylinders. With felt oil wiper for removing static electricity, tissue wastes, and dusts from the rollers. |
||||||||
|
Tension system |
Manually adjusted by cone pulley or speed controller. |
||||||||
|
Counting system |
Pneumatic counting. Left-Right stagger counting or ink mark. |
||||||||
|
Control system |
Frequency speed control (inverter control) JOG function Emergency stop function Auto stop if paper breaks. Optical sensor detecting |
||||||||
|
Installed Power |
4-11KW for main motor, 7.5-37 KW for vacuum pump, 3phase 380V 50hz or customized. |
||||||||
|
Air Pressure |
0.5Mpa(prepared by the customer). |
||||||||
|
Cutting System |
|||||||||
|
Cutting machines |
Log Saw |
Auto Band Saw |
|||||||
|
Cutting Speed |
80-130 cut/min/channel x 1 or 2 channels |
40-70 cut/min |
|||||||
|
Workable tissue bundle sizes |
width: 45 mm - 120 mm, Adjustable Height: 30mm -140 mm, Adjustable Length: 200-2800mm of arbitrary length servo tracking (adjustable) |
||||||||
|
Cutting sizes |
Servo tracking, adjustable. |
||||||||
|
Control system |
Servo tracking, PLC control, LCD touch screen display. |
||||||||
|
Installed Power |
8KW , AC380V 50hz or customized. |
4KW , AC380V 50hz or customized. |
|||||||
|
Packing System |
|||||||||
|
Machines |
Fully-auto Carton Box Packing Machine |
Fully-auto Soft Type Plastic Packing Machine |
|||||||
|
Packing Speed |
25-30 box/min |
60-75 bag/min |
|||||||
|
Installed Power |
0.75Kw for main motor 2.4Kw for Heating power, 3phase 380v 50hz or customized. |
5.4Kw for main motor 3.6Kw for Heating power, 3phase 380v 50hz or customized. |
|||||||
|
Optional Items |
|||||||||
|
Lamination Section |
Nested to nested or Point to point Lamination. |
||||||||
|
Embossing Section |
Steel to steel or steel to rubber. Newly-innovated embossing technology. |
||||||||
|
Printing Section |
1-4 colors flexographic printing Water-based ink printing Ceramic anilox Drying system Closed printing system |
||||||||
|
Auto Web Guide System |
Electrical system |
||||||||
|
Auto web tension system |
Famous brand |
||||||||
Electrical Parts and other Parts brand
|
NO |
Name |
Brand |
Original Place |
|
1 |
Motor |
Siemens |
China |
|
2 |
Pneumatic Parts |
Omron |
Germany |
|
3 |
Vacuum Pump |
Longtech |
Taiwai |
|
3 |
Frequency converter |
Delta |
Taiwai |

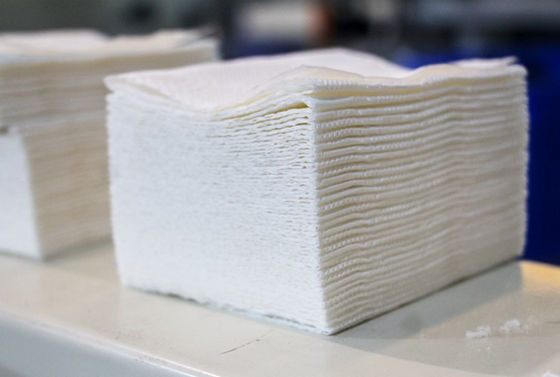

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1 . Can order steel to rubber embossing rolls,pneumatically separated.
2 . Wallboard rack and Machine running stability and extremely good and fast.
3 . Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4 . Equipped with roots type vacuum pump for stable running of the machine.
5 . Make various products width as requirement.
6 . Equipped with edge embossing unit to keep the plise together.
7 . The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8 . The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
