Eight Vacuum Fold 1000 Sheets /Min Automatic Napkin Making Machine

Eight Vacuum Fold 1000 Sheets /Min Automatic Napkin Making Machine

Eight Vacuum Fold 1000 Sheets  /Min Automatic Napkin Making Machine
video
Eight Vacuum Fold 1000 Sheets  /Min Automatic Napkin Making Machine
Product Details:
Place of Origin: Dongguan, Guangdong, CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-VN-I
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden packing
Delivery Time: 45days after down payment
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Folding Type: Vacuum 8 FOLD Embossing: Steel To Paper Or Steel To Steel
Speed: 1000 Sheets Per Min Frequency Converter: Delta
Motor: SIEMENS Touch Screen: Delta
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 3200*1000*1800mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Napkin Making Machine Processing Type: Napkin Making Machine
High Light:

Vacuum Fold Automatic Napkin Making Machine

,

1000Sheets/Min Automatic Napkin Making Machine

,

1000Sheets/Min napkin paper making machine

Paper Napkin Machine FOR Dinner Napkin Eight Fold Vacuum Fold

Description

Paper Napkin Machine FOR Dinner Napkin Eight Fold Vacuum Fold is to produce the tissue napkin . Napkin tissue unfolded size can beas per your need.. In addition, it is suitable for various kinds of factory’s productive investment.



Main production process: Jumbo roll tension unwinding—calender press (as your request) —color printing (as your request)—embossing—longitudinal folding—paper feeding—transverse folding—slitting.)



Specification

Open size of finished product

400mm*400mm

Diameter of Raw Paper Roll

1500mm(other size to be specified)

Inner Diameter of Paper core

76.2mm(3 inch) (other size to be specified) and 6’

Capacity

800-1000sheets/min

Counting Device

Pneumatic Counting

Embossing unit

Steel to Paper





Specification of Raw Material




1) Diameter 1200mm


2) Width 540-1500mm


3) Thickness :13-20g/m2(2 layers )23-25g/m2(1 layer)


4) Inner diameter of core:76mm





Specification of Finished Product






1) Unfolding size:180-500x180-500±2mm(LxW)




2) Folding size:90-250x90-250±2mm(LxW)1/4 folding





Equipment Disposition




1) Pneumatic lifter


2) One paper return stand




3) Flat belt (controlled by cylinder)


4) Hand-wheel adjust the tension of unreel.


5) Vertical slitting unit


6) Steel roller against wool roller


7) 3 sets of folding plate


8) Band saw slitting


9) Knife-sharping unit


10) Individual Electrical Cabinet


11) Main motor 5.5kw Frequency-converting (380V50HZ) Cutting paper power 2.2KW





Machine Shipping and Packing:





1. We use three-ply board pack the machines into standard export wooden case.



2. We will provide you the Fumigation Certificate for free.



3. We Sincerely invite you to visit our factory to inspect the machines before we shipping.



4. Before shipping, we will spend more 2 weeks to test the machines with raw materials to double ensure the machines running stready



Color Printing Embossing Napkin Folding Machine is to cut through the paper tray after printing, embossing and automatically folded into a square or rectangular-shaped napkin.

Clear and bright with printing,overlay accuarcy, high speed stationary,is the processing of special equipment for high-grade napkins.


1. Transmission belt drive system;
2. Color printing device adopts flexible printing,the design can be special design for you, Use professional color priting anilox string ink rollers.
3. Pattern matching paper rolling device, pattern significantly;
4. Electronic counting dislocation row of output;
5. Folding board with mechanical hand to fold paper shape, and then cutting by bandsaw cutter;
6. Other standard models can be customized.

Specification:

Finished unfolding size

200x200~400x400mm
Finished folding size
100x100~200x200mm
Base paper diameter

1100 mm

Base paper core diameter

76.2 mm

Processing capacity

400~500pcs/min

Embossing unit

Steel roller and wool roll

Counting system

Electronic counter

Equipment power

3KW+1.5KW

Machine size

5200X700X1500mm
Machine weight
1500~2000kg

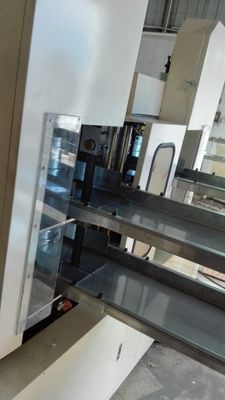

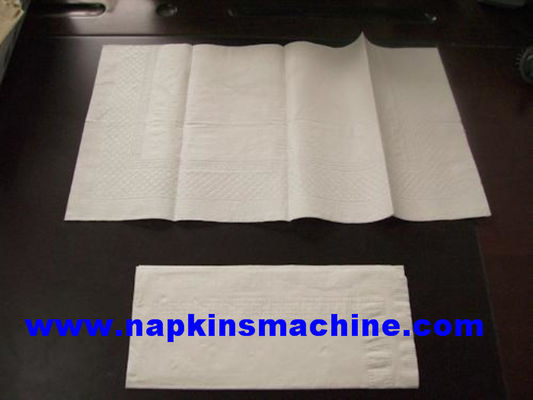

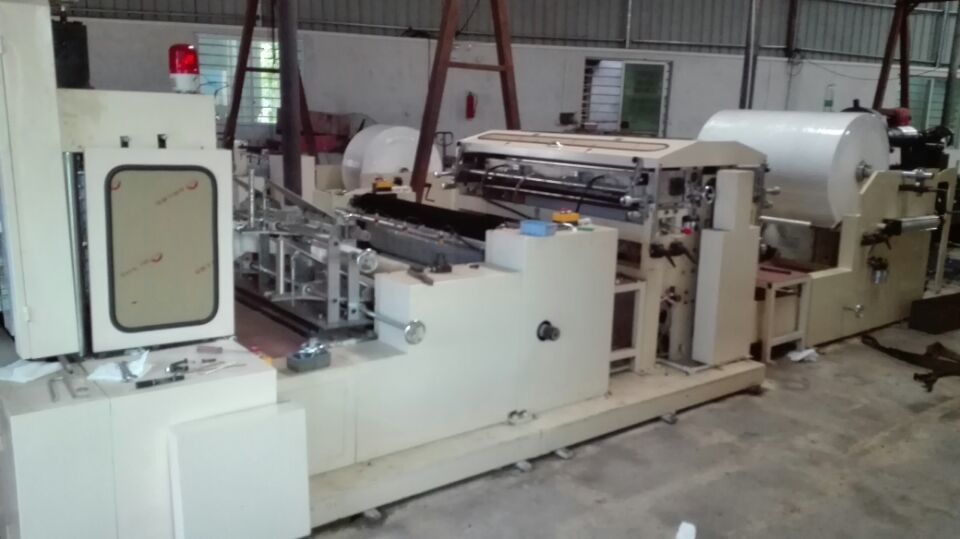

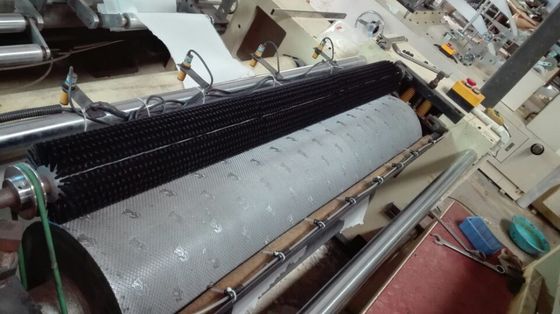

Machine Details:

Eight Vacuum Fold 1000 Sheets  /Min Automatic Napkin Making Machine 0
Eight Vacuum Fold 1000 Sheets  /Min Automatic Napkin Making Machine 1
Eight Vacuum Fold 1000 Sheets  /Min Automatic Napkin Making Machine 2
Eight Vacuum Fold 1000 Sheets  /Min Automatic Napkin Making Machine 3
Machine Model"
Napkin Paper Folding Size:
Machine Model :200*200
100*100mm
Machine Model: 230*230
115*115mm
Machine Model: 240*240
120*120mm
Machine Model: 250*250
125*125mm
Machine Model: 300*300
150*150mm
Machine Model: 330*330
165*165mm
