Embossing Lamination 330mm Tissue Paper Napkin Making Machine

Embossing Lamination 330mm Tissue Paper Napkin Making Machine

Embossing Lamination 330mm Tissue Paper Napkin Making Machine
video
Embossing Lamination 330mm Tissue Paper Napkin Making Machine
Product Details:
Place of Origin: Dongguan, Guangdong, CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-NP-I
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden packing
Delivery Time: 45days after down payment
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Folding Type: 4 FOLD AND TWO FOLD AND EIGHT FOLD Embossing: Steel To Paper Or Steel To Steel
Speed: 3000 Sheets Per Min Lamination: Point To Point Or Point To Nest
Color Printing: 1 To 4 Color Printing PLC: Delta
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 3200*1000*1800mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Napkin Making Machine Processing Type: Napkin Making Machine
High Light:

Embossing Lamination Tissue Paper Napkin Making Machine

,

330mm Tissue Paper Napkin Making Machine

,

Embossing Lamination napkin folder machine

Embossing and Lamination 330mm Tissue Paper Napkin Making Machine

Description

Embossing and Lamination 330mm Tissue Paper Napkin Making Machine is to produce 330mm luncheonNapkin from jumbo roll. The process including embossing , folding , cutting and so on process.  The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.



Embossing Lamination 330mm Tissue Paper Napkin Making Machine 0

Embossing Lamination 330mm Tissue Paper Napkin Making Machine 1

Embossing Lamination 330mm Tissue Paper Napkin Making Machine 2

Embossing Lamination 330mm Tissue Paper Napkin Making Machine 3







Specification:

Finished unfolding size

200x200~400x400mm
Finished folding size
100x100~200x200mm
Base paper diameter

1100 mm

Base paper core diameter

76.2 mm

Processing capacity

400~500pcs/min

Embossing unit

Steel roller and wool roll

Counting system

Electronic counter

Equipment power

3KW+1.5KW

Machine size

5200X700X1500mm
Machine weight
1500~2000kg

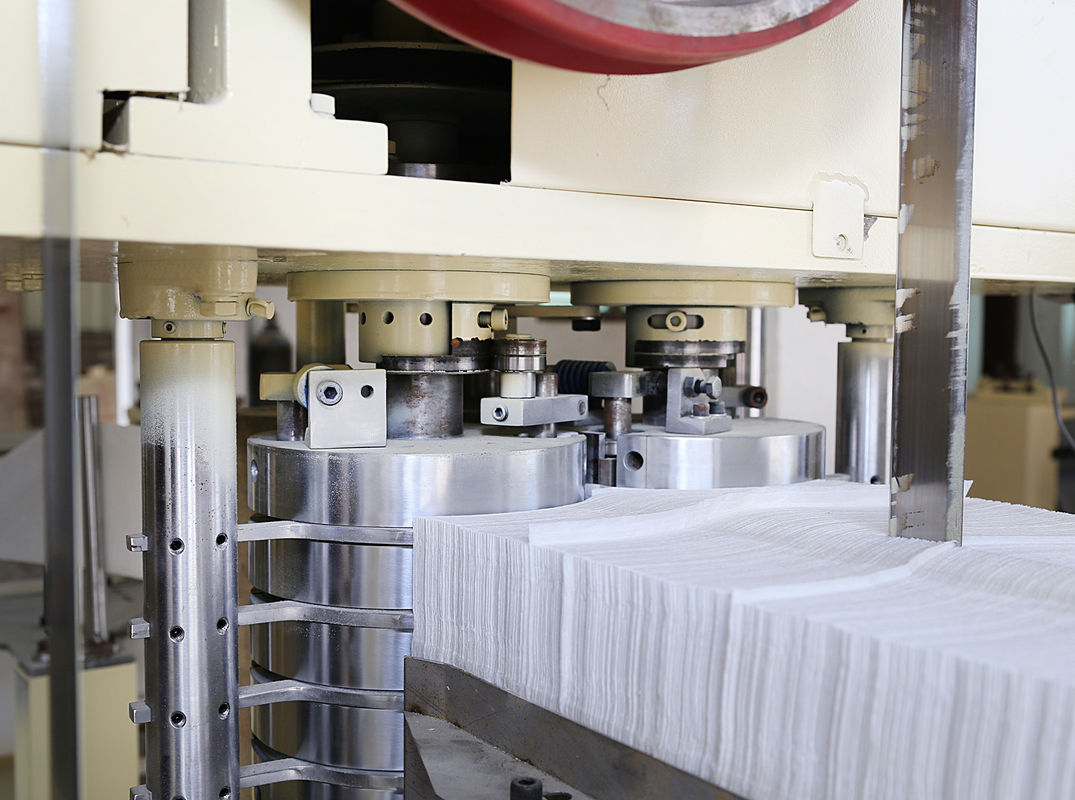

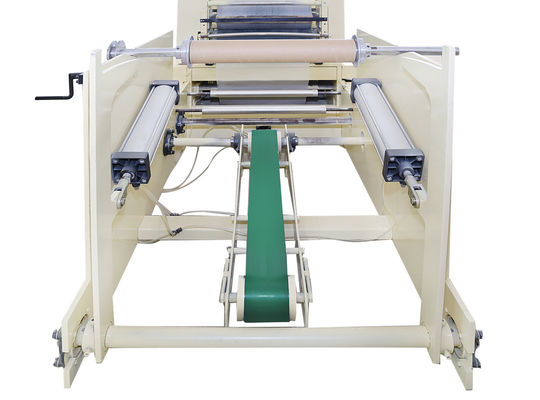

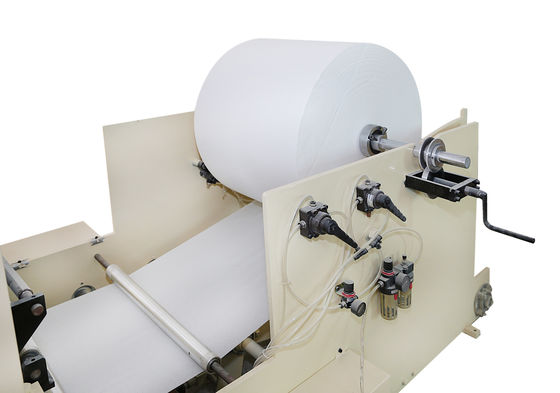

Machine Details:

Embossing Lamination 330mm Tissue Paper Napkin Making Machine 4
Embossing Lamination 330mm Tissue Paper Napkin Making Machine 5
Embossing Lamination 330mm Tissue Paper Napkin Making Machine 6
Embossing Lamination 330mm Tissue Paper Napkin Making Machine 7
Machine Model"
Napkin Paper Folding Size:
Machine Model :200*200
100*100mm
Machine Model: 230*230
115*115mm
Machine Model: 240*240
120*120mm
Machine Model: 250*250
125*125mm
Machine Model: 300*300
150*150mm
Machine Model: 330*330
165*165mm
