| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YSD-FP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 Sets Per Month |
| Application: | Carton Box Packing Facial Tissue | Speed: | 25-60 Carton Per Min |
|---|---|---|---|
| Packing Material: | CPP And So On Plastic Film | PLC: | SIEMENS |
| Motor: | SIEMENS | Voltage: | 380V, 50 HZ OR CUSTOMERIZED |
| Dimension(l*w*h): | 6200*2200*2200mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation |
| Condition: | NEW | Warranty: | One Year |
| Type: | Multi-Function Packaging Machine, Other, Packaging Line | Function: | Sealing, Wrapping, Filling, Gluing |
| Automatic Grade: | Semi Automatic | Product Type: | Box Packing Machine |
| Processing Type: | Box Packing Machine | ||
| High Light: | Napkin Packaging Machine,tissue paper packing machine |
||

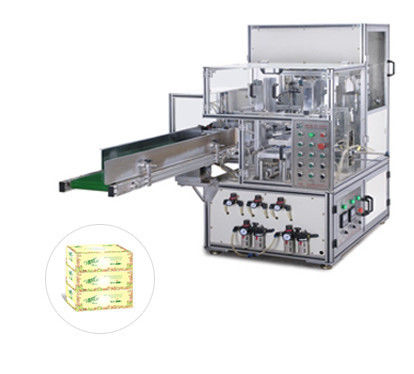

High Capacity Automatic Facial Tissue Box Packing Machine For Full Line
Description
High Capacity Automatic Facial Tissue Box Packing Machine For Full Line is the auxiliary equipment for the box-packing tissue machine .The machien is yused to seal and glue all kinds of packing paper boxes.This machien adopts PLC programming,sutomatically paper feeding ,automatically opening box and inserting paper .Whole process is automatic ,stable performance ,simple operation,high efficienc,seal box of quality and beautiful,box-drawing face tissue machine's preferred equipment.
Specification
|
Suitable box size |
(100-240)mm *(100-120)mm*(50-110)mm (can be adjusted) |
|
GSM of box |
350-400g/m2 |
|
suitable adhesive |
hot-melting glue |
|
melting container |
aluminum stove,adjustablt temperature |
|
control system |
electromagnetic clutch paper feeding ,PLC program control |
|
Production speed |
25-30 boxes/min |
|
install power |
AC 380V 50HZ 0.75KW(motor) 2.4KW(heating) |
|
air pressure |
0.6Mpa (need absolute stable ,prepared by the purchaser) |
|
machine size |
2690*1800*1770mm |
|
machine weight |
1500kg |
Main features
1 . High output,the stable speed can reach 30 boxes/mim
2 . Complete function,the machine is suitable for various applications,such as semi-cover/full-conver,or high paer and low box/low paper and high box
3. Rapid productjion changing,it only takes 10-20 minutes to change the specification.
4 . Convenient operation,it is easy to control the paper feeding and PLC control system
5 . Low cost,small footprint.
High Quality Facial Tissue Machine Paper Product Making Machinery
Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
2. Specification of Single Channel Log Saw Cutting Machine:

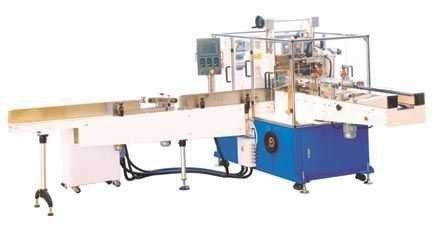

3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Final Products:
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
Final Products:
