Product Details:
Place of Origin: Dongguan, Guangdong, CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-NP-I
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden packing
Delivery Time: 45days after down payment
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Folding Type: 4 FOLD AND TWO FOLD AND EIGHT FOLD Embossing: Steel To Paper Or Steel To Steel
Speed: 2200 Sheets Per Min Lamination: Point To Point Or Point To Nest
Color Printing: 1 To 4 Color Printing Touch Screen: Delta
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 3200*1000*1800mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Product Type: Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine
Processing Type: Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Paper Towel Making Machine Application: Napkin Folding Machine To Produce Napkin Paper
High Light:

Jumbo Roll Napkin Embossing Machine

,

3000pieces/Min Napkin Embossing Machine

,

3000pieces/min tissue paper production machine

Jumbo Roll Napkin Embossing Machine , 3000 pieces / Min Tissue Paper Production Machine

Description

Jumbo Roll Napkin Embossing Machine , 3000 pieces / Min Tissue Paper Production Machine is used for produce square napkin tissue from jumbo roll. The process including embossing , folding , cutting and so on process. The size for the machine vary from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.



Specification



Open size of finished product

200*200-430*430mm (to be specified)

Diameter of Raw Paper Roll

1100mm(other size to be specified)

Inner Diameter of Paper core

76.2mm(3 inch) (other size to be specified)

Capacity

3000pieces/min

Counting Device

Electronic Counting

Embossing Roller

Woolen Roller

Power

Frequency Conversion Speed Regulator

Calendaring

Steel to steel or steel to rubber

Embossing unit

Felted roller, woolen roller, Rubber roller

Color Printing

1-2 color

Dry Device

Hot Wind Heating System



Spare Parts List



NO

ITEM

QUA

1

Plastic male knife

4

2

Band Saw

2

3

Tool Box

1

4

Grinding Stone

4



Feature

  1. Speed: 3000 sheets / min

  2. Folding Type: 1 / 4 and 1 / 8 or 1 / 6 or M fold or Two folding Type

  3. Embossing: steel to steel or steel to paper.

  4. Important parts Bearing: NSK

  5. Important parts Steel: SKD

  6. PLC: Delta

  7.  Frequency Converter Delta

  8.  Pneumatic Parts AIRTACK

  9. Motor: SIEMENS

  10.  Pneumatic Parts AIRTAC

  11.  Photoelectrical switch (magic eye) Omron

  12. 20mm thickness wall board plate for back stand

  13. 40mm thickness wall board plate for embossing unit and color printing unit

  14. 30 mm thickness wall board plate for cylinder folding parts



Introduction of main parts



Paper-feeding part

One Layer and Belt to deliver paper and controlled by Pump

Raw Paper Manual Adjustment



Embossing Part

One unit steel to woolen Roller

Mechanical pressure control

cotton cloth and paraffin oil Cleaning Device



Folding Part

Leading Paper Roll Function , the folding tension of the fore part adjustable

Counting Device: Pneumatic dislocation type



Control Unit

Frequency Conversion Device

Automatic Counting Function

Emergency Device

Voltage: AC380V 50HZ Main Motor 2.2KW,

Air pressure required less than 0.5 MPA



Jumbo Roll Napkin Embossing Machine , 3000pieces/Min Tissue Paper Production Machine is to cut through the paper tray after printing, embossing and automatically folded into a square or rectangular-shaped napkin.

Clear and bright with printing,overlay accuarcy, high speed stationary,is the processing of special equipment for high-grade napkins.


1. Transmission belt drive system;
2. Color printing device adopts flexible printing,the design can be special design for you, Use professional color priting anilox string ink rollers.
3. Pattern matching paper rolling device, pattern significantly;
4. Electronic counting dislocation row of output;
5. Folding board with mechanical hand to fold paper shape, and then cutting by bandsaw cutter;
6. Other standard models can be customized.

Specification:

Finished unfolding size

200x200~400x400mm
Finished folding size
100x100~200x200mm
Base paper diameter

1100 mm

Base paper core diameter

76.2 mm

Processing capacity

400~500pcs/min

Embossing unit

Steel roller and wool roll

Counting system

Electronic counter

Equipment power

3KW+1.5KW

Machine size

5200X700X1500mm
Machine weight
1500~2000kg

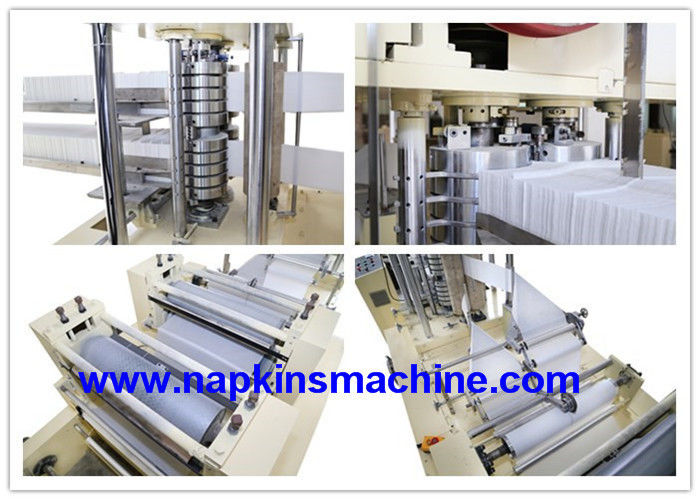

Machine Details:

Jumbo Roll  Napkin Embossing Machine , 3000 pieces / Min Tissue Paper Production Machine 0
Jumbo Roll  Napkin Embossing Machine , 3000 pieces / Min Tissue Paper Production Machine 1
Jumbo Roll  Napkin Embossing Machine , 3000 pieces / Min Tissue Paper Production Machine 2
Jumbo Roll  Napkin Embossing Machine , 3000 pieces / Min Tissue Paper Production Machine 3
Machine Model"
Napkin Paper Folding Size:
Machine Model :200*200
100*100mm
Machine Model: 230*230
115*115mm
Machine Model: 240*240
120*120mm
Machine Model: 250*250
125*125mm
Machine Model: 300*300
150*150mm
Machine Model: 330*330
165*165mm
