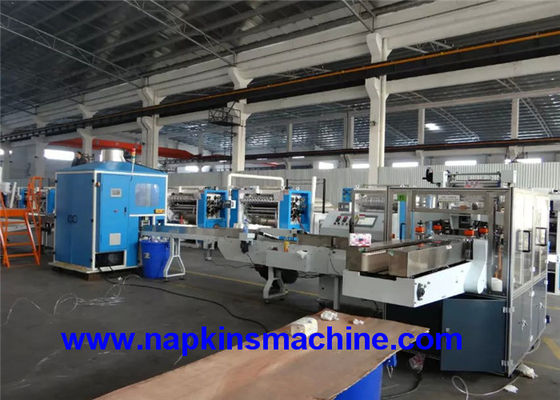

Jumbo Roll V Fold Interfold Facial Tissue Production Line

Jumbo Roll V Fold Interfold Facial Tissue Production Line

Jumbo Roll V Fold Interfold Facial Tissue Production Line
video
Jumbo Roll V Fold Interfold Facial Tissue Production Line
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-FTM-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden packing
Delivery Time: 40 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Bearing: Made In Japan Speed: 4800 Sheets/min
Motor: Siemens Touch Screen: Siemens
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Facial Tissue Making Machine Processing Type: Facial Tissue Making Machine
High Light:

Jumbo Roll Facial Tissue Production Line

,

V Fold Interfold Facial Tissue Production Line

,

V Fold Interfold tissue paper maker

Jumbo Roll Folding Facial Tissue Production Line / Tissue Paper Packing Machine




Description



Servo Motor Facial Tissue Paper Production Line With Packing Machine has the advantages of simple operation,high production efficiency, and keeping the consistent of the finished products, with the fully automatic production, the amount of production labour can be reduce, so to save the production and managing cost greatly.It converts the jumbo roll into folded facial tissue paper. The whole line work smoothly and run stable, saving the labor cost. It’s best choice for the producing facial tissue paper.


Specification



FOLDING SYSTEM



Jumbo roll width

2900mm

Unfolded size

190/200±2mm

Folded size

95/100±2mm

Design speed

170m/min

Production speed

140m/min(depend on size)

Jumbo roll diameter

≤1500-3000mm(other size to order)

Unwinding stand

2~6ply,individual driving(to order)

Folding system

Vacuum suction folding

Folding type

V fold interfold

Cutting system

Upper knife fix, bottom knife rotating



TRANSFER SYSTEM



Transfer structure

Servo control,auto transfer

Counting

Setting on LCD,auto count and transfer

Counting model

100~250sheet

Transfer speed

≤7times/min

Finished products set

Automatic

Overturn system

Automatic

Flatting system

Automatic







ACCUMULATOR



Storage

160PCS

Max unload speed

15PCS/min

Power

4.4KW



CUTTING SYSTEM



Cutter model

FC150-2L

FC200-2L

Speed

150cuts/min

200cuts/min

Feeding line

Double lines

Grinding system

Pneumatic grinding,parameter can be set on control panel

Grinding feed

Automatic feeding grinding for circular blade

Circular blade size

Φ610mm

Cutting length

Set on control panel,tolerance≤±1mm

Cutting vertical tolerance

Tolerance≤±1mm

Cutting length tolerance for two ends

Set on control panel







Main Specification


1. equipped with steel to steel or steel to rubber embossing roller, pneumatically separating.



2 . pneumatic jumbo roll loading, pneumatic paper driving, stepless speed additionustment, and web tension control.



3 . equipped with Roots Type vacuum pump for stable running of the machine.



4 . pneumatic dot slititng and full slitting are available to make various products width.



5 . equipped with edge embossing device to keep the plies together



6 . jumbo roll guiding system available.



7 . the machine will stop when the paper borken, it avoid waste caused by no paper or paper broken.



8 . the web can be threaded on the machine by the two jug buttons, it's more safety and easier to thread the web.



9. Key part regularly lubricating automatically.



10. the facial tissue log saw cutting machine is an orbital saw machine specially designed for inter-fold products, as inter-fold facial tissues and inter- fold toilet tissue,etc, this facial tissue log saw cutitng machine has been built with the latest technology on the electronic and servo drive system, toincrease the stability and quality of the cuts.



11. the folded facial tissue can be feed into the packing machine by the conveyor, and then packing automatically.





Electrical Parts and other Parts brand




NO

Name

Brand

Original Place

1

Motor

Siemens

China

2

Pneumatic Parts

Omron

Germany

3

Vacuum Pump

Longtech

Taiwai

3

Frequency converter

Delta

Taiwai





Product Description

High Quality Facial Tissue Machine Paper Product Making Machinery

Jumbo Roll V Fold Interfold Facial Tissue Production Line 0



Features:

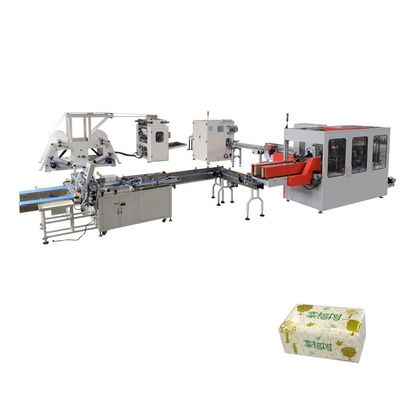

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.

1.Can order steel to rubber embossing rolls,pneumatically separated.

2.Wallboard rack and Machine running stability and extremely good and fast.

3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.

4.Equipped with roots type vacuum pump for stable running of the machine.

5.Make various products width as requirement.

6.Equipped with edge embossing unit to keep the plise together.

7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.

8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.

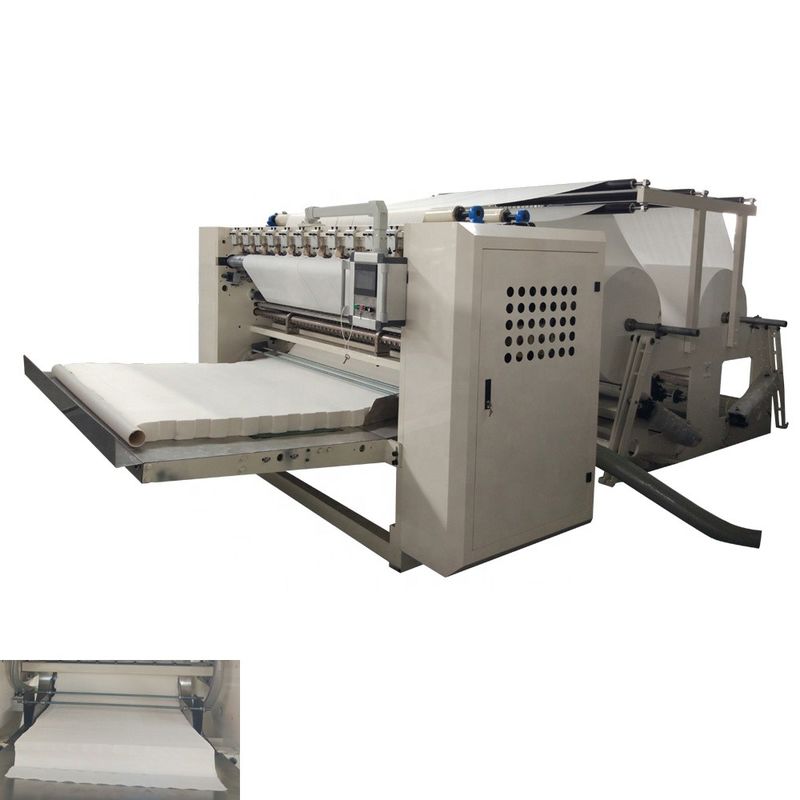

1. Specification of Facial Tissue Folding Machine:

Machine Model
SYM-190/6L (Other size to be specified)
Finished Products Unfolded Size
95x(120-210)x2mm
Folding Products Size
190x(120-210)x2mm
Raw Material Width
1260mm
Raw Material Diameter
1200mm
Raw Material Core Diameter
76.2mm
Output Capacity (8 hours)
2000-3000kg
Embossing Unit
Steel to rubber
Edge Embossing
Steel to steel edge embossing, independent pneumatic regulation
Slitting Unit
Pneumatic slitting
Main Servo Moter Power
5.5kw
Unwind Frequency Motor Power
1.5kw (2 units)
Vacuum System
18.5 kw Vacuum pump (Taiwan Roots blower)
Pneumatic System
3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)
Driving System
Timing belt
Dimension
5870x2800x2207mm
Weight
About 5 tons
Jumbo Roll V Fold Interfold Facial Tissue Production Line 1
Jumbo Roll V Fold Interfold Facial Tissue Production Line 2
Jumbo Roll V Fold Interfold Facial Tissue Production Line 3
Jumbo Roll V Fold Interfold Facial Tissue Production Line 4

2. Specification of Single Channel Log Saw Cutting Machine:

Jumbo Roll V Fold Interfold Facial Tissue Production Line 5
Designation
Parameter values
The length of the none cut off facial tissue
minimum 500mm
The Height of tissue
30~130mm
Machine Speed
20~150cut/min
Operating speed
20~120cut/min
Round blade outer diamete
Φ610mm
Paper cutting circular knife top speed
980R/min
Finished products specification
70~300mm
Paper width
70~110mm
Cutting Length
70~300mm
Left-over Length
20~65mm
Power
11KW
Power supply
380V 50Hz
Air source
0.5~0.8MPa
Machine Size
4600*1700*2500mm
Weight of machine
2300~2600kg
Brake
Parameter setting (auto/manual)
Stepping sharpening knife
Parameter setting (auto)
Pneumatic sharpening knife
Parameter setting (auto/manual)
Blow air
without
The total pressure switch
Value (not)
Human-computer interface
DELTA
Frequency changer
DELTA
Servo Drive
DELTA

3. Specification of Facial Tissue Packing Machine:

1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.

Tissue sizes:
L: 150-400mm W: 150-200mm H: 35-150mm
Packing speed:
40-70 bags/min
Air supply:
0.5-0.8MPa
Machine weight:
3300kg
Outer dimensions (LxWxH):
5885x3560x1925(mm)
Heating power:
3.6kw
Motor power:
3.6kw
Packing size:
≤230x190x100(mm)
Working noise:
≤78dB
Packing film:
CPP
Power supply type:
380V, 50Hz
Jumbo Roll V Fold Interfold Facial Tissue Production Line 6
Jumbo Roll V Fold Interfold Facial Tissue Production Line 7

Final Products:

Jumbo Roll V Fold Interfold Facial Tissue Production Line 8

4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:

Packing Size
≤500x300x110mm (LxWxH)
≥220x120x90mm (LxWxH)
Packing Speed
10-20 bag/min
Gas Pressure
0.5mpa-0.8mpa
Voltage & Frequency
380V,50Hz,3Phase
Total Power
0.8kw
Weight
1000kg
Overall Dimension
4900x1650x1280mm
Tissue paper bag (one row/two rows)
Tissue paper bag (one row/two rows)
Jumbo Roll V Fold Interfold Facial Tissue Production Line 9

Final Products:

Jumbo Roll V Fold Interfold Facial Tissue Production Line 10
Packing & Delivery
Jumbo Roll V Fold Interfold Facial Tissue Production Line 11
Jumbo Roll V Fold Interfold Facial Tissue Production Line 12
Jumbo Roll V Fold Interfold Facial Tissue Production Line 13
