| Place of Origin: | China |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-PT-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 50 work days after down payment |
| Payment Terms: | L/C, T/T |
| Fold Type: | M Fold | Speed: | 1000 Sheets Per Min |
|---|---|---|---|
| Embossing: | Steel To Steel | Frequency Converter: | Delta |
| Pneumatic Parts: | AIRTAC | Photoelectrical Switch (magic Eye): | Omron |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Towel Machine | Processing Type: | Paper Towel Machine |
| High Light: | M Fold PLC Automatic Towel Folder,Siemens Motor Automatic Towel Folder,Siemens Motor tissue paper maker machine |
||
M Fold PLC Siemens Motor Automatic Towel Folder / Tissue Paper Maker Machine
Specification for M FOLD Paper Towel Machine_20210...
Description
M Fold PLC Siemens Motor Automatic Towel Folder / Tissue Paper Maker Machine after Printing, embossing, interaction fold into "M" type, When using paper buckle one by one continuous to draw, products are widely used in hotels, office and kitchen room, convenient for use. This machine raw paper have strong adaptability, fold, cut, count many process, with high speed, the paper neatly, etc.
Function and Features
1. Capacity: up to 180m/min
2. Steel-to-Steel embossed, pneumatically pressed
3. Adopt the vacuum suction technology, it is newly patent product
4. Pneumatically cut-off and separate paper, it is easy for threading paper
5. Equipped with the timing belt, the transmitting speed is correct, and less noise
6. Add the lubricate oil on key part regularly, for keeping the durability of parts
7. The raw paper size is available, 33-45g/m2(single layer)
8. Equipped with PLC system according to the customer's requirement.(Option)
The Main Technical Parameters
|
Finished available products size |
230(L)X230*2mm(Other sizes are) |
|
Raw material size |
690m |
|
Raw material core diameter |
76.2mmOther sizes are available |
|
Speed |
0~100m/min(Depending on the machine model) |
|
Power |
Frequency conversion speed regulator |
|
Programmable controller |
PLC computer controller |
|
Folding type |
Vacuum suction “N”fold |
|
Transmission unit |
Timing belt |
|
Counter |
Ink marked |
|
Embossing unit |
Steel to steel |
|
Slitting unit |
Pneumatic dot slitting |
|
Pneumaticsystem |
5kg/cm2pa 3HP Air compressor,mini air pressure 5kg/cm2pa (provided by customer) |
|
Total power |
17KW |
|
Dimension |
4000*(1700~2500)*1900mm |
|
Weight |
depend on the size and configure |

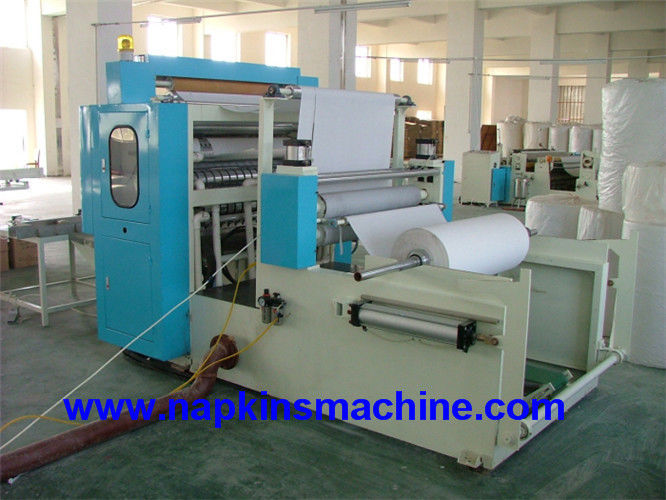

Machine Detail Pictures:

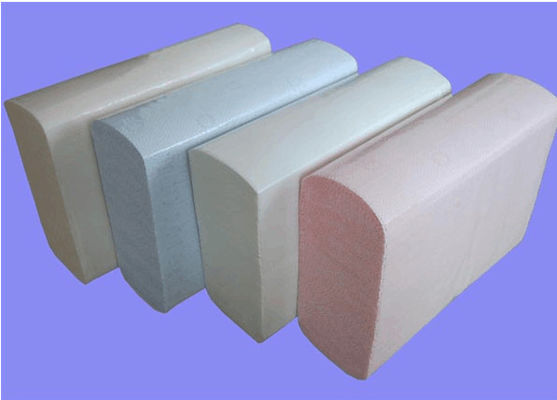

Finished Products Pictures:
