| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YSD-FP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 Sets Per Month |
| Application: | Plastic Film | Speed: | 25-60 Bags Per Min |
|---|---|---|---|
| Packing Material: | CPP And So On Plastic Film | Touch Screen: | SIEMENS |
| Motor: | SIEMENS | Weight: | 3.5Ton |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Type: | Multi-Function Packaging Machine, Other, Packaging Line |
| Function: | Sealing, Wrapping, Filling, Gluing | Packaging Material: | Plastic, CPP, PE |
| Automatic Grade: | Automatic | Driven Type: | Electrical |
| Packaging Type: | BAGS, FILMS | Power(w): | 2.5KW |
| Product Type: | Facial Tissue Packing Machine | Processing Type: | Facial Tissue Packing Machine |
| High Light: | tissue paper packing machine,Tissue Paper Packaging Machine |
||

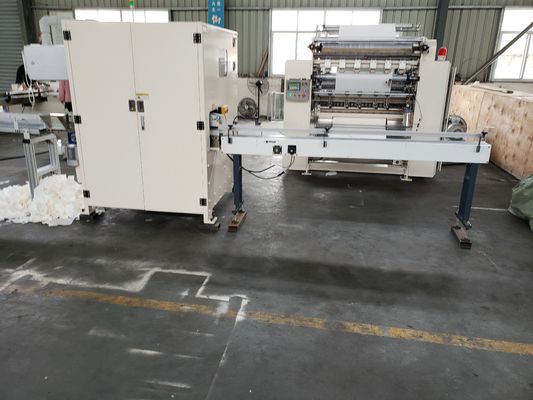

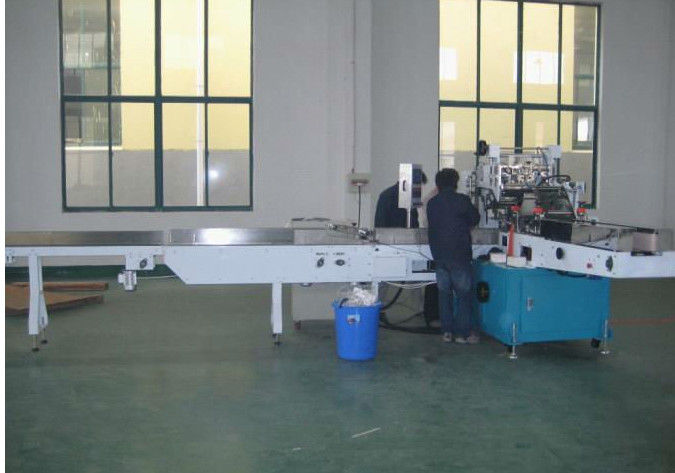

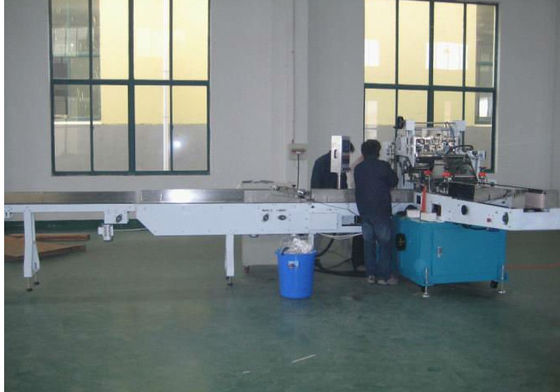

Plastic Film Facial Tissue Packing Machine For Napkin Tissue , High Efficiency
full automatic plastic film facial tissue packing ...
Description
Plastic Film Facial Tissue Packing Machine For Napkin Tissue , High Efficiency is used to packing facial tissue in plastic bag. It adopts servo motor driving, touching screen and PLC controlling system. Machine automatically completes products from the automatic feeding, stacking, materials arranging.High degree of automation, it really solves the problem of unnecessary operators and the high labor cost. Packing film can be sheet roll film with double-side heat sealing function. It can use precast bag according to customer’s requirement.
Specification
|
Power supply |
380V 50HZ |
|
Heating power |
3.6KW |
|
Motor power |
5.4KW |
|
Air supply |
0.5-0.8MPa |
|
Working noise |
≤78dB |
|
Size of bag |
(100-230)*(100-150)*(40-100)mm |
|
Max Packing Size |
230×150×100mm |
|
Packing speed |
25-60 bags/min |
|
Capacity |
25-45 boxes/min |
|
Film Material |
CPP, Double sealing film |
|
Dimension |
3560×5885×1925mm(L×W×H) |
|
Weight |
3500kg |
Main features
1. Adopt packing ways of wrapping, hemming and sealing with compact structure suitable for packing regular square objects such as paper towel and paper box with relatively low tightness. Adopt frequency inverter infinite variable speed control system, touch panel and PLC and clearer Human-machine interface with easier maintenance.
2. Adopt automatic ordering and conveying tail stock easy to be connected with automatic production line and significantly labor empty envelope, which is high automation, high professional, high efficiency and low troubles.
3. Broad packing scope and rapid change among different sizes.
4. Applicable Scope:
Applicable for the outer package of regular square objects such as soft drawing paper towel, napkin, general rectangular paper towel, paper box, etc.
.
