| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-IP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
| Application: | Industrial Roll | Speed: | 200m/min |
|---|---|---|---|
| Raw Parent Roll Width: | 1400-3500mm | Touch Screen: | Delta |
| Automation: | Full Auto | PLC: | Siemens |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Toilet Paper Making Machine | Processing Type: | Toilet Paper Making Machine |
| High Light: | PLC Toilet Tissue Roll Machine,200m/Min Toilet Tissue Roll Machine,Pneumatic Timing Rewinder Toilet Roll Machine |
||
Automatic Small Toilet Tissue Paper Roll Making Machine
Description
Automatic Small Toilet Tissue Paper Roll Making Machine can slit and rewind the single ply tissue into two, three or four plies tissue, for the production of paper towels, napkin paper, boxed tissue, facial tissue and so on.
The machine features good mechanical performance, compact structure, pneumatic parts, stable running, and easy operation. The finished products have a compact structure.
Specification
|
Model |
2900 |
|
Raw Material Width(mm) |
2850 |
|
Speed |
400-500m/min |
|
Finished products diameter(mm) |
diameter 1300 |
|
Slitting Width(mm) |
adjustable |
|
Finished products core Diameter(mm) |
76.2(Please specify other specifications) |
|
Unwinding Unit |
1-3 layer(Can be appointed) |
|
Base paper core shaft |
Air-shaft |
|
Rewinding System |
Pneumatic timing rewinder |
|
Slitting System |
Automatic slitting control |
|
Discharging Unit |
Automatic discharging |
|
Edge Cutting Unit |
Vacuum suction edge cutting 1.5 KW |
|
Power |
Frequency conversion speed regulate 11KW Double embossing frequency conversion speed regulate 15KW |
|
Pneumatic system |
3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) |
|
Dimensions(L x W x H)(mm) |
8500X4000X2100 |
|
Weight |
5000KG |
Functions and Features
1 . Synchronous belt transmission, make it stable-running and less noise even though at high speed operation.
2 . Adopt the widen belt on back-stand to increase the friction when feeding paper.
3 . Equipped with newly fasten unit, making it is convenient to adjust the raw material.
4 . With the function of pneumatic paper loading, edge vacuum suction.
5 . Automatic finished roll discharging, Solve the deformation caused by falls paper phenomenon, save the labor force. (Optional)
6 . Easy operation, the finished products have good winding profiles and clean cutter.
Easy to use tissue paper production line tissue paper making machine kitchen toilet paper towel rewinder machine
Full Automatic Toilet Paper Rewinding Machine

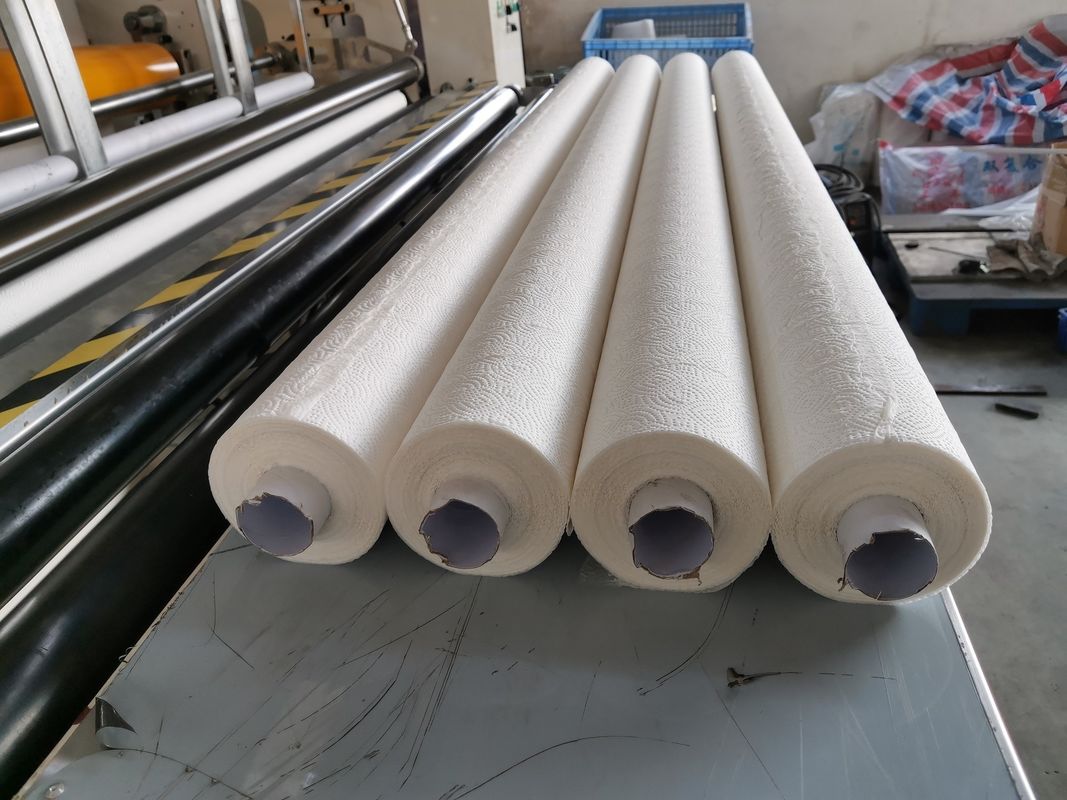

1) It is used to perforate and cut the raw material into various sizes according to the requested. The finished product is neat, in good order and with equality tension.
| SPECIFICATIONS | |
| Model | 1400mm,1500mm, 1800mm, 2000mm,2200mm,2800mm, 2900mm, 3000mm |
| Jumbo roll width | 1350mm, 1450mm,1750mm, 1930mm, 2150mm, 2750mm, 2850mm, 2950mm |
| Jumbo roll core size | Φ76mm (other size to be specified) |
| Finished roll diameter | Φ 60-130mm(Tightness is adjustable) |
| Finished roll core diameter | Φ 32-50mm |
| Perforation pitch | Standard size: 110mm(Adjustable) |
| Perforation | 4PCS sprial upper perforation knives,improve the durability |
| Parameter set | Touch Screen HMI(Siemens) |
| Machine speed | 200-250m/min |
Spiral knife
Full Automatic Kitchen Towel and Toilet Tissue Paper Roll Making Rewinder Machines
this equipment is to perforate and cut the raw paper into various sizes according to the requested.
The finished product is neat, in good order and with equality tension.
It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min.
This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. There are two types of this model:
A) is ordinary type, it used one embossed unit for 2 ply paper,
B) other is dot-by-dot type, it used embossed units respectally for each one.
This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.
The production process is : unreeling -→ embossing and gluing lamination-→perforating-→furl-→slitting
