| Place of Origin: | China |
| Brand Name: | YUSHENGDA |
| Certification: | CE |
| Model Number: | SYM-NPK-II |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 38000 |
| Packaging Details: | Wooden pallet at the bottom and plastic film packing for the machine Body |
| Delivery Time: | 60 days after down payment |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS PER MONTH |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Power(w): | 7.5KW |
|---|---|---|---|
| Condition: | NEW | Weight: | 5500KGS |
| Production Capacity: | 1300sheets/min/line | Name: | Paper Towel Making Machine/tissue Paper Manufacturing Machine, Paper Napkin Equipment Converting Machine To Make Square Napkin, Automatic Paper Napkin Making Machine Price, Napkin Tissue Paper Machine, Toilet Paper Making Machine |
| Speed: | 1300sheets/min/line | Processing Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Paper Towel Making Machine |
| Product Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine,Paper Towel Making Machine | Certification: | CE |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Warranty: | One Year |
| Dimension(l*w*h): | 6200*2000*1800mm | ||
| High Light: | PLC W Folding Tissue Paper Maker,1300sheets/Min Tissue Paper Maker,225mm Size automatic towel folder |
||

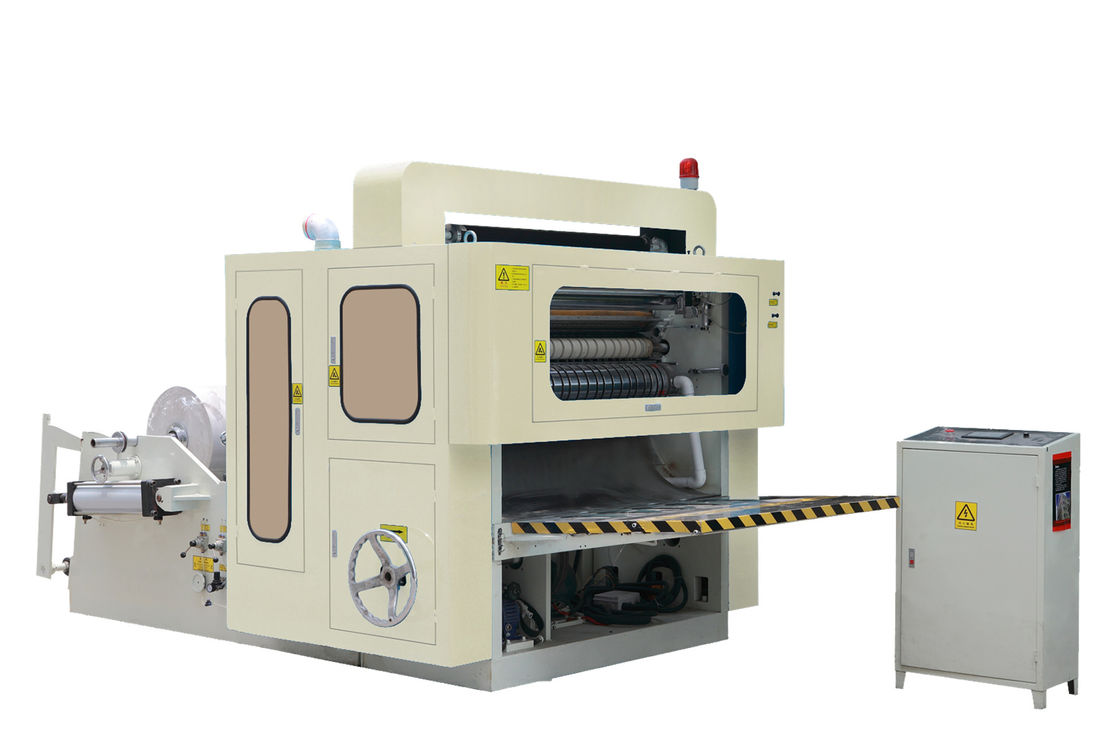

Automatic W Fold Paper Towel Making Machine 225mm , Steel To Steel Embossed
Specification for M FOLD Paper Towel Machine_20210...
Description
W Fold Paper Towel Making Machine Point To Nest Color Glue Lamination is used to make V Fold Hand Towel with embossing and cutting off the towel paper .The folding of product is “C” type folding .This kind of towel paper is used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .The folding, cutting ,counting etc several processes are going together.
Features
1. Capacity: up to 180m/min
2. Steel-to-Steel embossed, pneumatically pressed
3. Adopt the vacuum suction technology, it is newly patent product
4. Pneumatically cut-off and separate paper, it is easy for threading paper
5. Equipped with the timing belt, the transmitting speed is correct, and less noise
6. Add the lubricate oil on key part regularly, for keeping the durability of parts
7. The raw paper size is available, 33-45g/m2(single layer)
8. Equipped with PLC system according to the customer's requirement.(Option
The Main Technical Parameters
| Finish product size | 230X230mm |
| Raw paper width size | 460mm |
| Paper core diameter | 76.2mm |
| speed | 800 pieces/min |
| Drive | Frequency conversion variable speed motors |
| Programming | PLC |
| Fold way | Vacuum adsorption,“N”fold |
| Drive system | Synchronous belt transmission |
| Counting system | Ink system |
| Embossing device | Steel to steel roller |
| Slitting system | pneumatic |
| Pneumatic system | 3 HP,Minimum pressure 5kg/cm2pa(customer offer) |
| Total power | 14KW |
| overall dimensions | 4000X2070X1900mm |
| Weight | 2.5T |
Contact Person: sale
Tel: +8615919058158
