| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-IP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
| Automation: | Full Auto | Voltage: | 380V, 50 HZ OR CUSTOMERIZED |
|---|---|---|---|
| Dimension(l*w*h): | 6200*2200*2200mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation |
| Condition: | NEW | Warranty: | One Year |
| Power(w): | 7.5KW | Product Type: | Toilet Paper Making Machine |
| High Light: | Wallboard Rewinding Toilet Tissue Making Machine,PLC Toilet Tissue Making Machine,7.5KW Towel Paper Making Machine |
||
The machine features good mechanical performance, compact structure, pneumatic parts, stable running, and easy operation. The finished products have a compact structure.

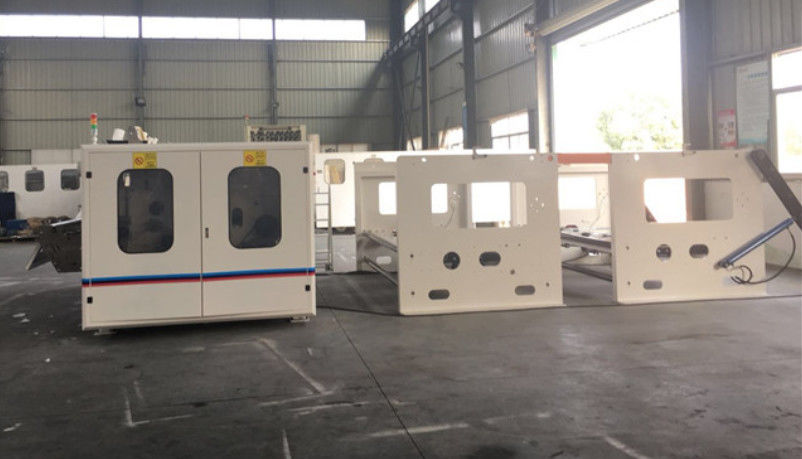

Part 1 : Fully Automatic Toilet Paper Rewinding Machine
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Part 2: Double Channel Log Saw Machine
Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it's with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
1 . Automatic blade grinding system, self-lubrication at regular intervals.
2 . Sharpen wheel can grinding according to the wear degree.
3 . Two Logs are feeding automatically, cutting then pushing.
4 . Shortcuts can be kicked off from the quality products.
5 . Equip with two sets of clamping channels, easy to change.
