| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-FTM-I |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 40 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets Per Month |
| Bearing: | Made In Japan | Speed: | 4800 Sheets/min |
|---|---|---|---|
| Motor: | Siemens | Touch Screen: | Siemens |
| Application: | Facial Tissue | Automation: | Full Automatic Line |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Facial Tissue Making Machine | Processing Type: | Facial Tissue Making Machine |
| High Light: | Servo Motor Facial Tissue Making Machine,2900mm Width Facial Tissue Making Machine,140m/Min tissue paper production machine |
||

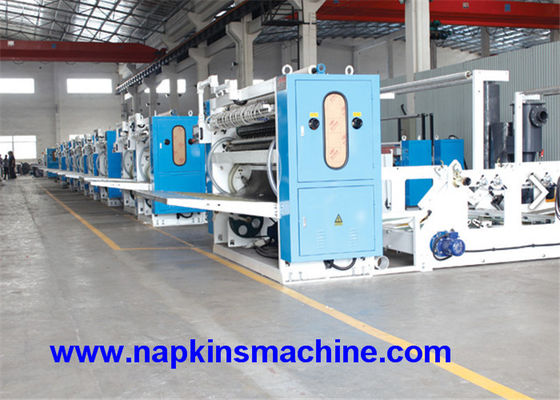

Servo Motor 140m / Min 2900mm Width Facial Tissue Making Machine
Description
Servo Motor 140m / Min 2900mm Width Facial Tissue Making Machinee has the advantages of simple operation,high production efficiency, and keeping the consistent of the finished products, with the fully automatic production, the amount of production labour can be reduce, so to save the production and managing cost greatly.It converts the jumbo roll into folded facial tissue paper. The whole line work smoothly and run stable, saving the labor cost. It’s best choice for the producing facial tissue paper.
Specification
FOLDING SYSTEM
|
Jumbo roll width |
2900mm |
|
Unfolded size |
190/200±2mm |
|
Folded size |
95/100±2mm |
|
Design speed |
170m/min |
|
Production speed |
140m/min(depend on size) |
|
Jumbo roll diameter |
≤1500-3000mm(other size to order) |
|
Unwinding stand |
2~6ply,individual driving(to order) |
|
Folding system |
Vacuum suction folding |
|
Folding type |
V fold interfold |
|
Cutting system |
Upper knife fix, bottom knife rotating |
TRANSFER SYSTEM
|
Transfer structure |
Servo control,auto transfer |
|
Counting |
Setting on LCD,auto count and transfer |
|
Counting model |
100~250sheet |
|
Transfer speed |
≤7times/min |
|
Finished products set |
Automatic |
|
Overturn system |
Automatic |
|
Flatting system |
Automatic |
ACCUMULATOR
|
Storage |
160PCS |
|
Max unload speed |
15PCS/min |
|
Power |
4.4KW |
CUTTING SYSTEM
|
Cutter model |
FC150-2L |
FC200-2L |
|
Speed |
150cuts/min |
200cuts/min |
|
Feeding line |
Double lines |
|
|
Grinding system |
Pneumatic grinding,parameter can be set on control panel |
|
|
Grinding feed |
Automatic feeding grinding for circular blade |
|
|
Circular blade size |
Φ610mm |
|
|
Cutting length |
Set on control panel,tolerance≤±1mm |
|
|
Cutting vertical tolerance |
Tolerance≤±1mm |
|
|
Cutting length tolerance for two ends |
Set on control panel |
|
SINGLE WRAPPER
|
Model |
CZB-80A |
|
Packing speed(packs/min) |
20-80 |
|
Packing specification |
3D wrap, sealing at both ends |
|
Packing system |
Length:120-200mm Width:95-105mm Height:40-100mm |
|
Weight |
2500KG |
MEDIUM WRAPPER
|
Model |
ZBJ-30A |
|
Packing speed(packs/min) |
15-25 |
|
Packing specification(mm) |
Diameter:Φ85-125 Length:85-120 |
|
Packing system |
2x3 2x4 2x5 2x6 |
|
Weight |
2500KG |
Main Specification
1 . Equipped with steel to steel or steel to rubber embossing roller, pneumatically separating.
2 . Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed adjustment, and web tension
control.
3 . Equipped with Roots Type vacuum pump for stable running of the machine.
4 . Pneumatic dot slitting and full slitting are available to make various products width.
5 . Equipped with edge embossing unit to keep the plies together
6 . Jumbo roll guiding system available.
7. The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8 . The web can be threaded on the machine by the two jog buttons, It's more safety and easier to thread
the web.
9 . Key parts regularly lubricating automatically.
10 . The FC75 Facial Saw is an orbital saw machine specially designed for inter-fold products, as inter-fold
facials and inter-fold toilet tissue, etc. This saw has been built with the latest technology on the electronic
and servo drive system, to increase the stabilities and quality of the cuts.
11. Adopt PLC and vacuum suction technology, the folded facial tissue can be feed into the box by the
conveyor, and then sealing automatically. It can be connected with Log Saw to compose a facial tissue
production line.
Electrical Parts and other Parts brand
|
NO |
Name |
Brand |
Original Place |
|
1 |
Motor |
Siemens |
China |
|
2 |
Pneumatic Parts |
Omron |
Germany |
|
3 |
Vacuum Pump |
Longtech |
Taiwai |
|
3 |
Frequency converter |
Delta |
Taiwai |
High Quality Facial Tissue Machine Paper Product Making Machinery

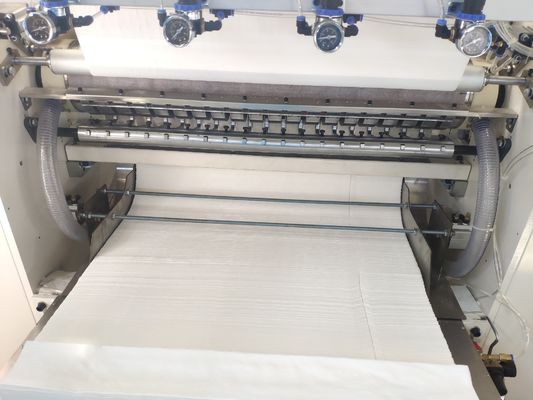

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
2. Specification of Single Channel Log Saw Cutting Machine:
3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Final Products:
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
Final Products:
