| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-IP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
| Application: | Industrial Roll | Speed: | 200m/min |
|---|---|---|---|
| Raw Parent Roll Width: | 1400-3500mm | Touch Screen: | Delta |
| Automation: | Full Auto | PLC: | Siemens |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Toilet Paper Making Machine | Processing Type: | Toilet Paper Making Machine |
| High Light: | Synchronous Belt Tissue Paper Making Machine,200m/Min Tissue Paper Making Machine,1400mm Width Toilet Paper Rewinder Machine |
||
tissue paper production line tissue paper making machine kitchen toilet paper towel rewinder machine
Description
tissue paper production line tissue paper making machine kitchen toilet paper towel rewinder machine can slit and rewind the single ply tissue into two, three or four plies tissue, for the production of paper towels, napkin paper, boxed tissue, facial tissue and so on.
The machine features good mechanical performance, compact structure, pneumatic parts, stable running, and easy operation. The finished products have a compact structure.

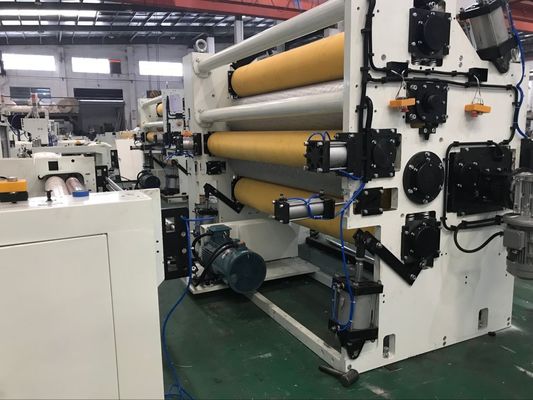

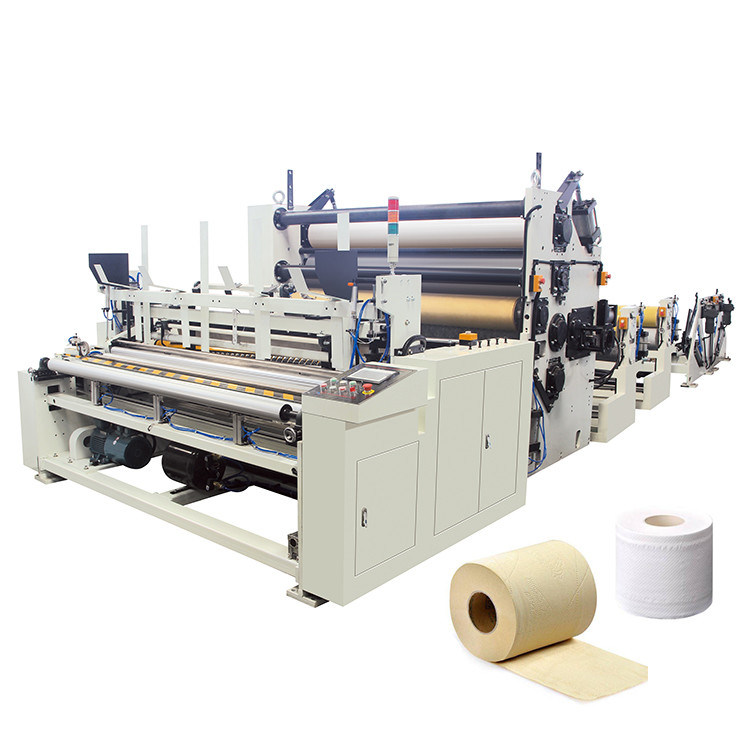

Full Automatic Toilet Paper Rewinding Machine
1) It is used to perforate and cut the raw material into various sizes according to the requested. The finished product is neat, in good order and with equality tension.
| SPECIFICATIONS | |
| Model | 1400mm,1500mm, 1800mm, 2000mm,2200mm,2800mm, 2900mm, 3000mm |
| Jumbo roll width | 1350mm, 1450mm,1750mm, 1930mm, 2150mm, 2750mm, 2850mm, 2950mm |
| Jumbo roll core size | Φ76mm (other size to be specified) |
| Finished roll diameter | Φ 60-130mm(Tightness is adjustable) |
| Finished roll core diameter | Φ 32-50mm |
| Perforation pitch | Standard size: 110mm(Adjustable) |
| Perforation | 4PCS sprial upper perforation knives,improve the durability |
| Parameter set | Touch Screen HMI(Siemens) |
| Machine speed | 200-250m/min |

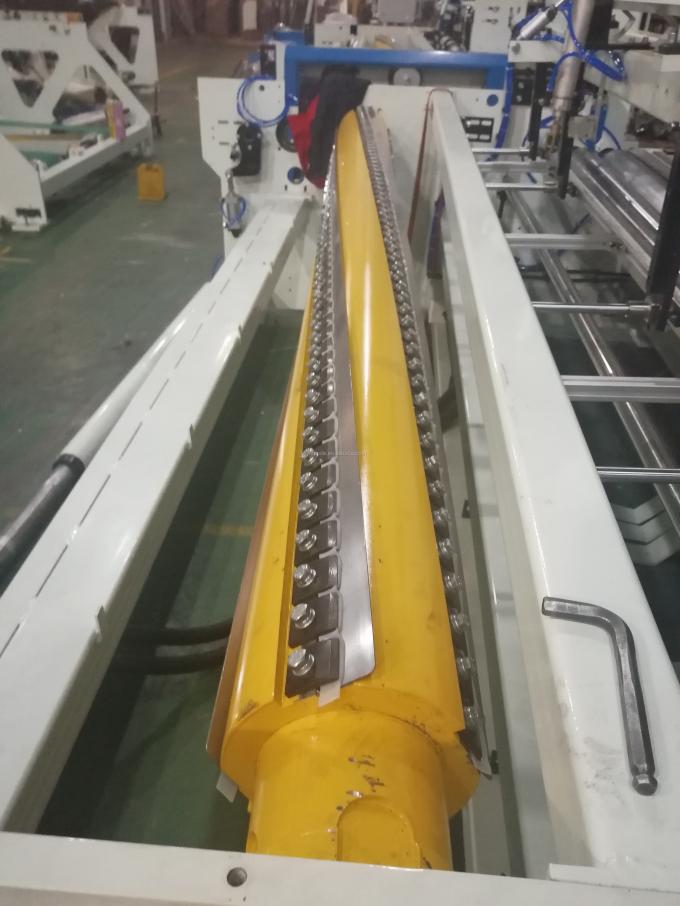

Spiral knife
