380V Electricity Control 1880mm Width Toilet Paper Printing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-TPM-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time:	40 Days After Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets Per Month

Contact Now

Detailed Product Description

Raw Paper Width:	2800mm	Speed:	200m/min
Product Type:	Toilet Tissue	Processing Type:	Paper Slitting And Rewinding
Perforating Size:	90-140mm	Motor:	SIEMENS
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Toilet Paper Making Machine	Processing Type:	Toilet Paper Making Machine
High Light:	380V Electricity Control Toilet Paper Printing Machine , 1880mm Width Toilet Paper Printing Machine , 380V Electricity Control tissue paper maker

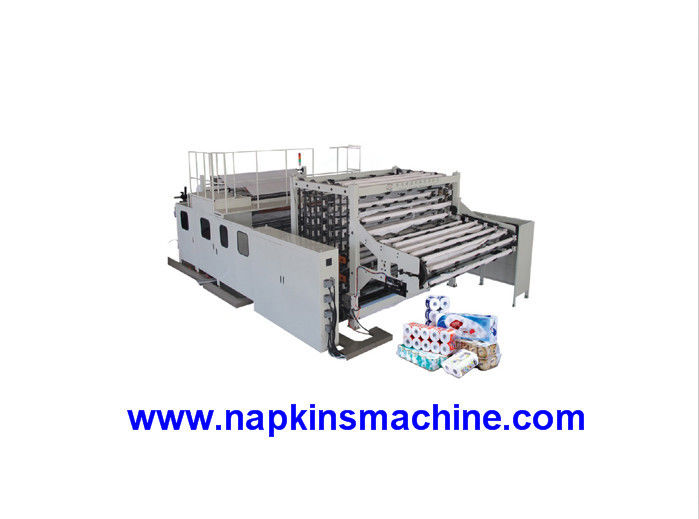

Custom Compact Toilet Roll Making Machine With Electricity Control And Cutting System

Description

High Capacity Toilet Tissue Roll Embossing Perforating Glue Sealing Machine
perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min.This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. There are two types of this model:
A) is ordinary type, it used one embossed unit for 2 ply paper,
B) other is dot-by-dot type, it used embossed units respectally for each one.
This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.
.
Parameter

Parent Roll Width	1300mm	1800mm	2000mm	2200mm	2500mm	2800mm	3000mm	3200mm
Parent Roll Diameter	Φ 1200mm
Finished Roll Diameter	Φ 60~150mm (tightness adjustable)
Finished Roll Core Diameter	Φ20~50 mm
Parent Roll Core Diameter	Φ 3”/ 76.2 mm
Perforation Pitch	4 perforating blades 90~160mm, 2 perforating blades 180~320mm(customized)
Speed	180~208 m/min.
Parameter Setting	HMI (LCD Screen operation panel)
Programming Controller	PLC (MITSUBISHI)
Braking	Electronic and air pressure control
Pneumatic System	3HP air compressor, mini. pressure 5kg/cm2Pa (prepared by users)
Finished Products Sheets Control	Increase gradually till reach the set diameter
Dimension(L×W×H)	6200 x (1600~3600) x 2300mm(depends on the model and configuration)
Weight	Depends on the model and configuration
Unwinding Stands	1~3 for 1~3 parent rolls (customized)
Options:
Unwinding Stands	1~3 for 1~3 parent rolls (customized)
Embosser	Single embossing or double embossing
Edge Embosser	Steel to steel
Perforating Device	Pneumatic control
Remote Communications Server	Modem
Finished Roll Rewinding	With core or coreless rewinding system
Calendering Device	Steel to steel or steel to rubber roller

Fetures:

1. PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.

2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.

3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose.

4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.

5. When raw material broken, the machine will stop automatically.

6. Each raw material unreel separately , equip with tension control.

7. Easy to adjust in order to suitable different paper core.

8. There is tail after the finished product sealed with

9. There is pneumatic jack to load the raw material on machine

As required, the machine can equip with single color or double colors printing device, the pattern is vivid.

The machine can equip with two sets of embossing device according to requirements.

Electrical Parts and other Parts brand

NO	Name	Brand	Original Place
1	Frequency Panel	Siemens	Germany
2	Motor	Siemens	Germany
3	Pneumatic Parts	Schneider	Germany
4	Knife bearing	NSK	Japan
5	Steel	SKD	Japan
6	Touch Screen	Delta	Taiwan

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
