| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-IP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
| Application: | Industrial Roll | Speed: | 200m/min |
|---|---|---|---|
| Raw Parent Roll Width: | 1400-3500mm | Perferation: | 2 PCS |
| Winding: | Auxiliary Rewinding Shaft | Brake: | Electric And Pneumatic Control |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Slitting Machine | Processing Type: | Paper Slitting Machine |
| High Light: | 1200mm Paper Slitting Machine,2 PCS Edge Embossing Paper Slitting Machine,1200mm tissue paper manufacturing machine |
||

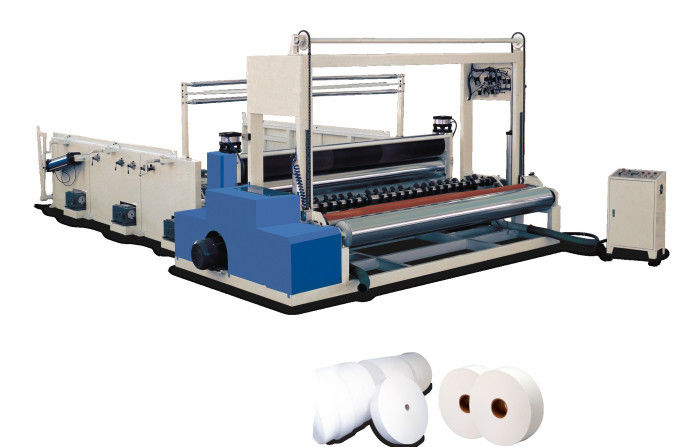

Big Industrial Paper Roll Rewinding Machine 1200mm With Edge Embossing
Description
Siemens PLC Control Paper Roll Rewinding Machine for Big Industrial Roll can make both JRT industrial roll and rolled hand towel, it's easy to change in a short time. With edge embossing, perforating,slitting and rewinding functions . Pneumatic jumbo roll loading, belt driving and web tension control devices. The finished roller rewinded by air-fill shaft.
Specification
|
Model |
1092 |
1575 |
1760 |
2500 |
2800 |
3000 |
|
Raw paper width |
1300mm |
1750mm |
2000mm |
2400mm |
2800mm |
3000mm |
|
Max out dia of raw paper |
1200mm(other size please order) |
|||||
|
Inner dia of raw paper core |
76mm(=3″) |
|||||
|
Machine max speed |
300M/min (500-800m/min need order) |
|||||
|
Finished roll width mm |
Adjustable (Minimum :60mm need order) |
|||||
|
Jumbo roll stands |
1-3 need order |
|||||
|
Material can be cut |
Toilet paper ,Face tissue,Napkin paper etc |
|||||
|
Calander system |
Steel to steel or steel to rubber roller, Pnuematic separate , Pnuematic disc brake |
|||||
|
Rewinding system |
Pnuematic timing rewinding Pnuematic braking Air-shaft rewinding |
|||||
|
Slitting system |
Automatic slitter control |
|||||
|
Paper Discharging system |
Automatic discharging |
|||||
|
Edge cutting system |
Vacuum suction edge cutting 3-5kw |
|||||
|
Program controller |
Programmable Controller (PLC) Pre-set the weight and diameter |
|||||
|
Power |
Frequency conversion speed regulator 7.5-22KW ,380V,50HZ (Other voltage need order) |
|||||
|
Pneumatic System |
3HP Air Compressor,Mini Pressure5kg/cm2 Pa(client prepare) |
|||||
|
Dimension(L×W×H) |
13000X3200X2000~13000X4200X2000 |
|||||
|
Machine weight |
22000-30000KG |
|||||
|
Optional Device |
||||||
|
Jumbo roll core shaft |
Air-shaft |
|||||
|
Unwinding Unit |
Servo drive |
|||||
|
Calendering Unit |
Steel to steel, steel to rubber |
|||||
Functions and Features
1 . Rewinding control:Automatic pneumatic proportional valve controls linear slider rail lifting,barometric servo system controls riding roller, pneumatic grasping rewinding shaft;
2 . Rewinding shaft lifting rail:front&back rewinding rollers speed differential+riding roller control final product tension and neatness of both ends;
3 . Slitting blade control,tolerance±0.1mm;
4 . Production process(core convey,shaft pull-plugging, core feeding,slitting&rewinding, tail trimming&sealing,shaft piull-out)is fully automatic circling.
Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:
Machine Detail Pictures:
Deco Color Lamination Parts:

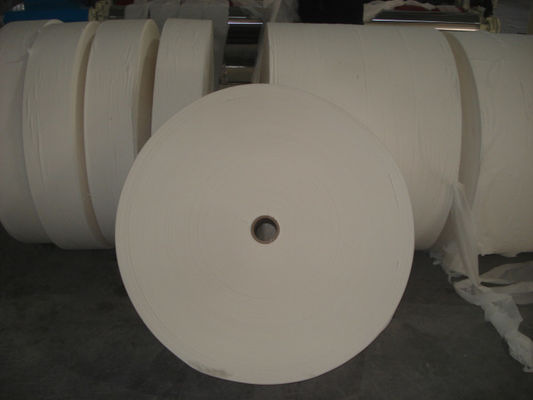

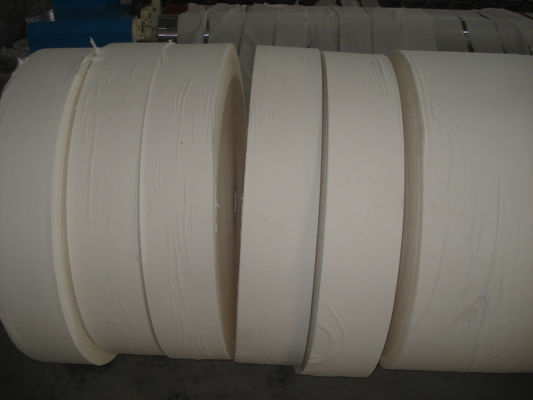

Finished Products:
