120 Cuts / Min 380V Small Thermal Paper Slitting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-LSW-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 Days after down payment
Payment Terms:	L/C, T/T
Supply Ability:	5 Sets/ Month

Contact Now

Detailed Product Description

Speed:	150 Cuts/min	Channel:	One Channel
Application:	Cutting Toilet Tissue Roll	Log Length:	1400-3200mm
Log Diameter:	90-150mm	Round Knife Diameter:	610mm
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Cutting Machine	Processing Type:	Paper Cutting Machine
High Light:	120 Cuts/Min Paper Slitting Machine , 380V Small Thermal Paper Slitting Machine , 380V Small Thermal paper roll cutter machine

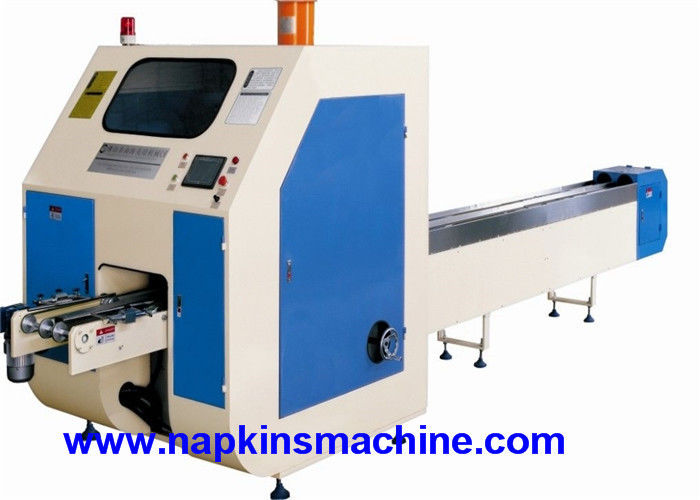

Small Thermal Toilet Paper Roll Cutting Machine 120 Cuts Per Min

Description

Full Automatic Small Toilet Paper Roll Cutting Machine 120 Cuts Per Min is special equipment for cutting rolled toilet paper and rolled kitchen towel with simple production, trimly cutting and high production speed. It is equipped with programmable controller to auto control working procedure in production.

Specification

Model	LA150(2200)		LA130(2800)
Toilet roll’s length	maximum:2200mm	2200mm-2800mm
Channel	Two Channels
Toilet roll’s diameter	Φ90mm-Φ150mm(standard size:110±5mm)
Cutting length	60-300mm (length is changeable, servo control)
Error of finished product	±1mm
Machine’s speed	120cuts/min, 2 rolls/cut
Whet knife system	Whet knife automatically, set parameter on touching-screen
Round blade’s diameter	Φ610mm
Installed power	12KW
Machine’s size	6700-780020001800mm
Machine’s weight	About 3 tons
Packing Size of machine	270021002250 & 290011001300mm

Feature

1. This machine is used to cut toilet paper and kitchen roll paper. It is easy to operate and enjoy high speed

2 . Adopt computer control production, reset automatically, cut, cut and wrap length, adjustable the period of cutting.

3 . Equipped with touch screen person-to-computer control, production parameter, production trouble can be showed on the screen.

4 . 610 mm diameter disc knife high speed revolving rapidly. ( cut two roll paper at one time).Without knife mark and rough edges while cutting.

5 . Equipped with photoelectric checking system, servo driving system, pneumatic element, bearing tool and other advanced products.

6 . Equipped with feeding knife grinder, the grinding of knife blade is higher precision. It is safe and insures while grind the knife.

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

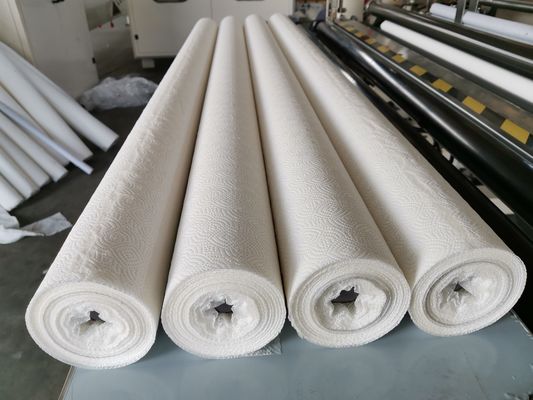

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
