| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-LSW-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 40 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 Sets/ Month |
| Speed: | 120 Cuts/min | Application: | Cutting Toilet Tissue Roll |
|---|---|---|---|
| Log Length: | 1400-3200mm | Log Diameter: | 90-150mm |
| Round Knife Diameter: | 610mm | Bearing: | NSK |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Cutting Machine | Processing Type: | Paper Cutting Machine |
| High Light: | 1300mm Jumbo Roll Paper Slitting Machine,150 Cuts/Min Paper Slitting Machine,150 Cuts/Min jumbo roll slitting machine |
||

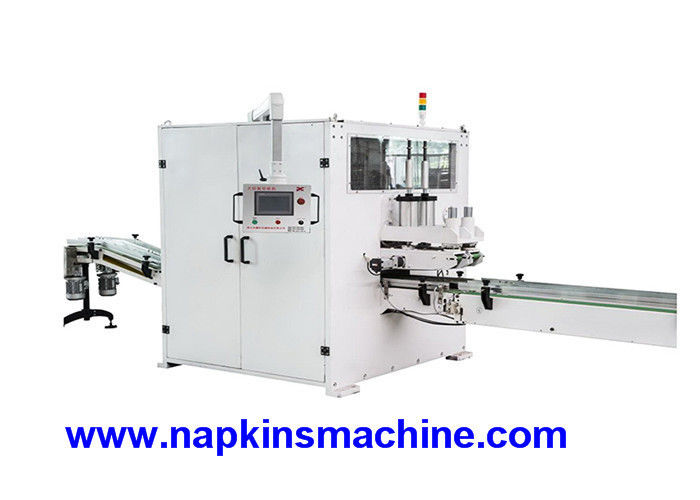

Automatic Log Saw Cutting Machine 1300mm - 3200mm for Toilet Paper Roll
Description
Automatic Log Saw Toilet Paper Jumbo Roll Cutting Machine High Capacity equipped with photoelectric checking system, servo driving system, pneumatic element, bearing tool and other advanced products.The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
Specification
|
Paper Roll Length: |
1300~3200mm |
|
Outer Dia.: 90-160mm(unless specified request, we generally supply the clamp according to the standard of 110±5mm) |
|
|
Specification of the Finished Products |
Cutting Length: 50-300mm |
|
Edge Length: 25-110mm |
|
|
Machine Speed |
0-150cut/per minute |
|
Operating speed |
0-120 cut/per minute |
|
Pushing drive control |
servo motor drive, |
|
Knife sharpening |
Pneumatic grinding wheel, time and rate can be controlled on panel, it can grinding through automatic process |
|
Outer Dia. of Circular Knife |
610mm |
|
Power |
10KW |
|
Packing Size |
It will be different according to the final allocation |
|
Weight |
2500-3000kg |
Feature
1. this machine adopts advanced servo driving, frequency conversion speed regulating, plc control and touching screener operation. the blade grinding frequency, the cutting speed as well as the cutting length is adjustable on plc screener, which have smoothed the cutting and grinding. it has fully symbolized the superiority of this machine.
2. the cutting system is under perfect designing with auto grinding system, while the grinding bowl can count precisely to grind the blade in time as per the cutting times.
3. mounting with advanced photoelectric monitoring system and large size spiral cutter, it can auto set the length and cut precisely. each time it cuts 2 rolls, while one minute can make 120 cutting.
4. under european ce standard designing, passed ce certificate, with ce or ul certificate for electric parts and with safety device, such as, safety-guard door, emergency stop and so on.
5. most of parts are precisely processed by numerical-control machine; the key mechanical parts are under cnc processing; while the main outsourcing parts are world famous brand.
Electric Components:
|
No. |
CONTENT |
BRAND |
|
1. |
PLC |
Germany Siemens |
|
2. |
Inverter |
Germany Siemens |
|
3. |
Main Bearing |
Japan NSK |
|
4 |
Servo motor |
Germany Siemens |

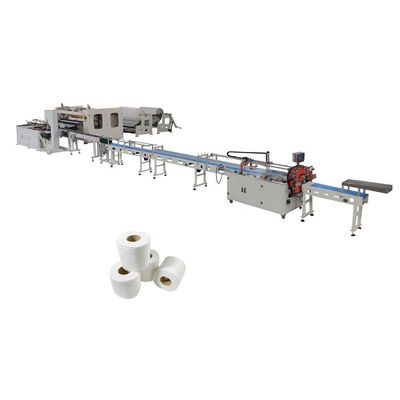

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:

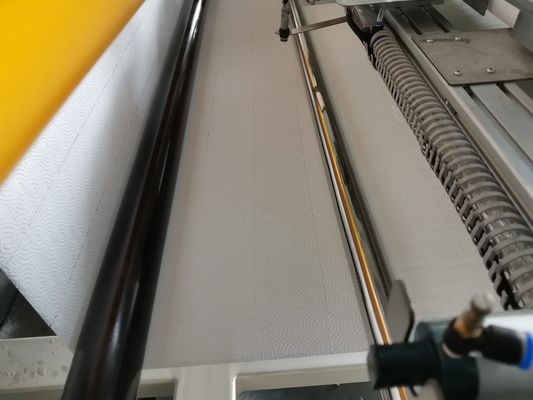

Machine Detail Pictures:
Deco Color Lamination Parts:
Finished Products:
