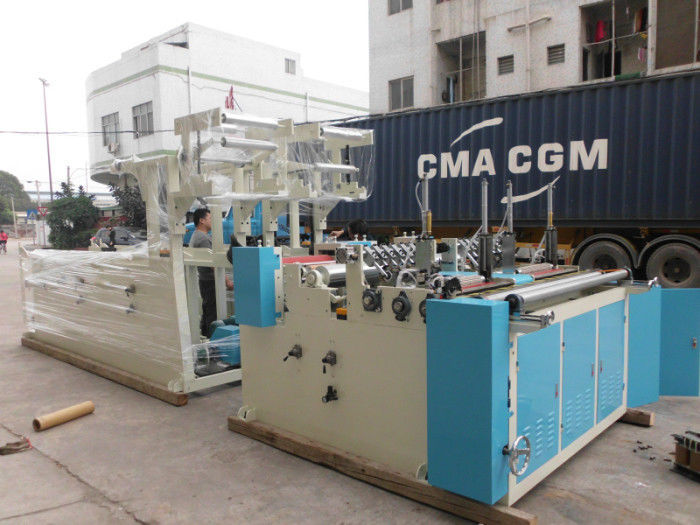

1350mm Width 4HP 2 Back Stand Paper Slitting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-JR-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Application:	Jumbo Roll	Speed:	200m/min
Raw Parent Roll Width:	1400-3500mm	Perferation:	4 PCS
UnWinding Stand:	Two Back Stand	Brake:	Electric And Pneumatic Control
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Slitting Machine	Processing Type:	Paper Slitting Machine
High Light:	1350mm Width Paper Slitting Machine , 4HP Paper Slitting Machine , 2 Back Stand tissue paper manufacturing machine

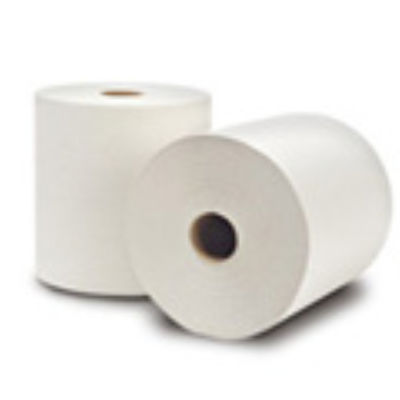

Hand Towel Jumbo Roll Slitting And Rewinding Machine For Folding Tissue / Napkin

Description

Center Pull Hand Towel Jumbo Roll Slitting And Rewinding Machine rewind and cut single layer jumbo roll to 2 layers or 3 layers different specification raw material.

Supply for folding tissue ,napkin , boxed tissue and so on.

This equipment has the feature of tight structure, easy operation, stable operation.

Specification

Model	1092/1575/1760/2500/2900
Max width of raw paper	1350/1750/2000/2400/2800 mm, other sizes to be specified
Max outer diameter of raw paper	1100 mm, other sizes to be specified
Inner diameter of raw paper core	3",76 mm, other sizes to be specified
Outer diameter of finished product	90-420 mm, other sizes to be specified
Product diameter control	electric/pneumatic
Speed	0~250m/min
Operation speed	0~230m/min
Power	4~22kw varial frequency speed regulating
Winding	Auxiliary rewinding shaft
Brake	electric&pneumatic control
Pneumatic system	4HP air compressor, which the min pressure is 5kg/cm2pa(supplied by user)
Perforating blade	4 pcs spiral blades
Perforating Size	110(±3mm)
Dimension and weight	depends on model and configuration
Options	Options
*Adjustable perforating Size	4 blades: 90-140mm 2 blades: 200-350mm 1 blade: 200-500mm (+-3mm) , to be specified
*Backstand	1~4ply (plies), to be specified
*Embossing	single embossing, double embossing, steel to steel (point to point/convex to plane), steel to felted , steel to paper woolen , steel to rubber , pneumatic, to be specified

Functions and Features

1. Horizontal type unwinding stands: pneumatic wide belt to feed paper, each jumbo roll has

independent tension adjustor and left-right adjusting device.

2. Pneumatic lifting the jumbo roll function greatly lightens the labor intensity of the workers.

3. Auto stop machine function when material is used up will minimize the waste of raw material.

4. Continue adding roll core alarming device.

5. Rewinding Technology: The finished products from earlier loosening to later tightening when rewinding, which has solved the problem of the separation phenomenon between roll paper and roll core of the finished product after long time’s storage. High speed rewinding can reach the speed of 180-200m/min,that is to say, it can push out the log after rewinding in 8-12 seconds.( perforating distance is 110mm, the sheet number set as 200, it is complete the rewinding process in 14 seconds).

6. Auto edge trimming, glue spraying and sealing synchronously in one time.

7. Use the up-threading way to winding the finished product. Adopts front and back jogging button to guide paper,

8. Double Embossment, compare with Single embossment, this type can make the paper

softer, both sides of the finished products have the same effect, and when making the

product with the same diameter, the weight can reduce by over 15%.

9.Glue lamination system:

A: When produce kithchen towel rolls : glue on the convex face of the embossed tissue, and stick the two ply of tissue together.

B: When produce colorful rolls,to apply colorful glue between two and three ply of tissues,to make the tissue surface show various kinds of colorful patterns (the pattern as per the embosser’ pattern) ,and the tissue will stick together without destroy tissue’s softness.

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

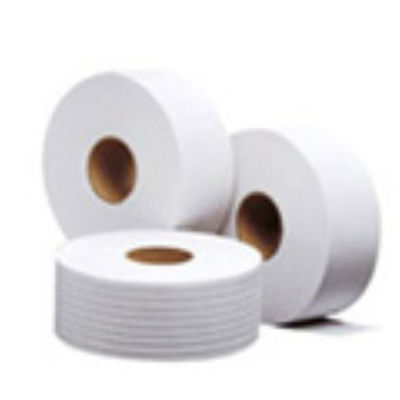

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
