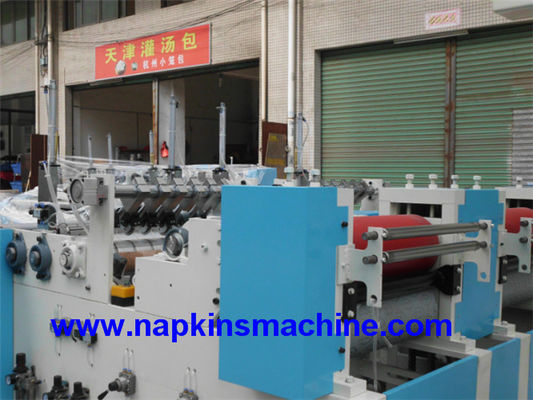

1400mm Width 2 Layers Jumbo Roll Slitting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-JR-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Application:	Jumbo Roll	Speed:	200m/min
Raw Parent Roll Width:	1400-3500mm	Perferation:	4 PCS
Winding:	Auxiliary Rewinding Shaft	Touch Screen:	Siemens
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Slitting Machine	Processing Type:	Paper Slitting Machine
High Light:	1400mm Width Jumbo Roll Slitting Machine , 2 Layers Jumbo Roll Slitting Machine , 2 Layers jumbo roll slitter rewinder

High Performance Tissue Jumbo Roll Slitting Machine And Firm Rewinding Machine

Description

Jumbo Bath Tissue Slitting Rewinding and Perforating Machine is designed to make smaller width roll from big jumbo roll. Rewinding and slitting from single-layer to two ply, three ply, or four ply different sizes jumbo roll, use to fold paper towels, napkins, facial tissue and so on. This machine have good mechanical performance , the whole structure is compact and reasonable, comprehensive use pneumatic devices, high-speed stable operation, easy to operate, rewinding and firm, and is an ideal machinery to matching paper mill , and received the unanimous esteem from customers.

Specification

Model	1092B	1575B	1760B	2200B	2500B	2800B
Max.Jumbo Roll Width	1350	1750	1900	2150	2400	2700
Max.Jumbo Roll diameter	Standard φ1100mm unless otherwise specified
Jumbo Roll Standings	3 stands (pls specify when order) Paper gram weight 13-16 g/m2, lifted by Pneumatic loading
Jumbo Roll Inner Diameter	Standardφ3”(76.2mm) unless otherwise specified
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-200m/min 15000-25000 rolls/8hours
Finished Log Outer diameter	φ90-140mm
Finished Log Inner diameter	φ25-50m
Diameter of finished log control	By Electronic/Air control
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 9KW 380V,50HZ
Embossing unit	Two sets steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic can be ordered

Functions and Features

1. With air-fill shaft to rewind the finished products, the orientation of core easy and nicety.

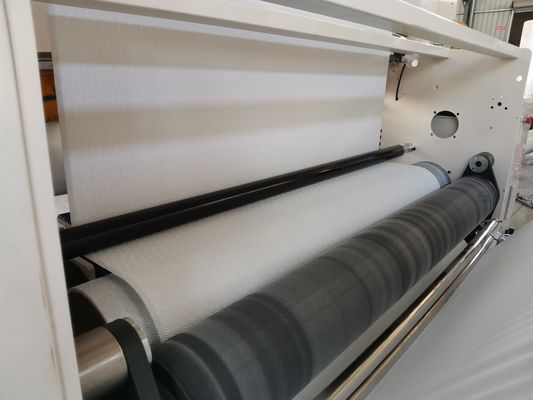

2. Edge embossing unit(new improvement): adapts big diameter set structure, which uses supersteel heat treated, through fine grinding, chrome plating then fine grinding again, to guarantee the precision and hardness, so it will be not easy to be damaged. Moreover, the pressing device of embossing adapts high pressure resistance air cell, to make each embossing wheels get same pressure, so the embossing quality will be very good(optional)

3. Horizontal style unwinding stand, pneumatic jumbo roll loading, pneumatic belt driving, each jumbo roll with individual tension adjust device.

4. Knifes aligning system (new improvement)
5. With tail trimming & sealing function. (Optional)

6. With PLC, touch screen operation panel, and inverter

7. With pneumatic lifter for perforating system and web riding roller, so it is convenient to adjust machine and fix breakdown

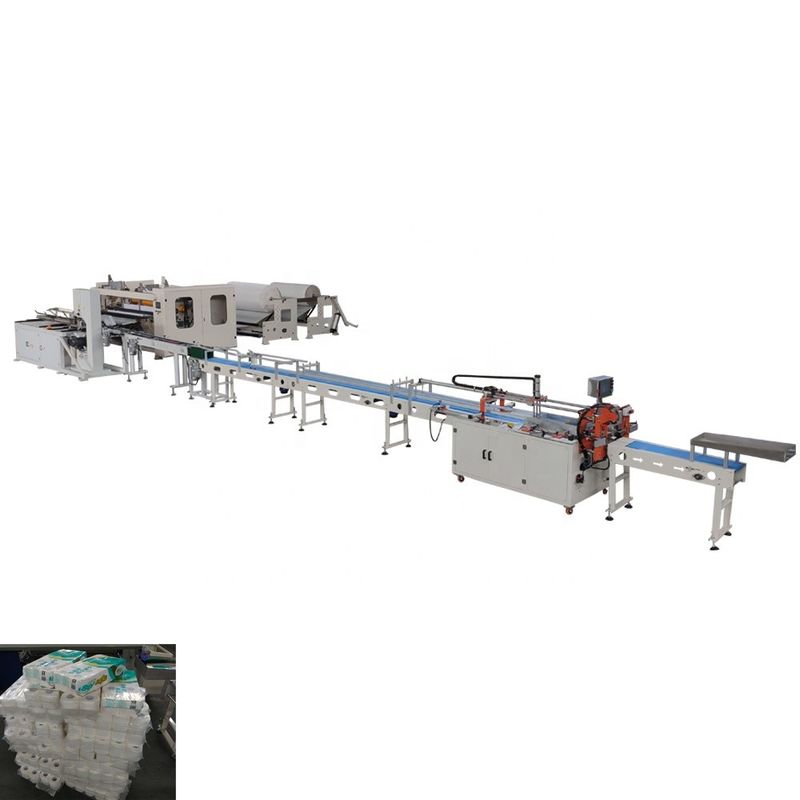

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
