150 Cuts / Min 2 Channel 10.5KW Paper Slitting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-LSW-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 Days after down payment
Payment Terms:	L/C, T/T
Supply Ability:	5 Sets/ Month

Contact Now

Detailed Product Description

Speed:	150 Cuts/min	Channel:	One Channel
Application:	Cutting Toilet Tissue Roll	Log Length:	1400-3200mm
Log Diameter:	90-150mm	Round Knife Diameter:	610mm
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Cutting Machine	Processing Type:	Paper Cutting Machine
High Light:	150 Cuts/Min Paper Slitting Machine , 2 Channel 10.5KW Paper Slitting Machine , 150 Cuts/Min roll slitter rewinder

Professional Industrial Paper Cutter Machine With High Speed

Description

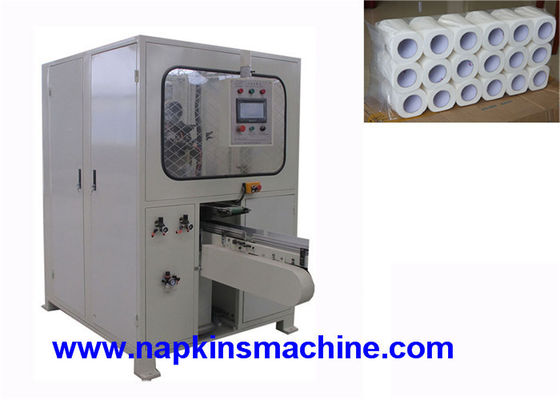

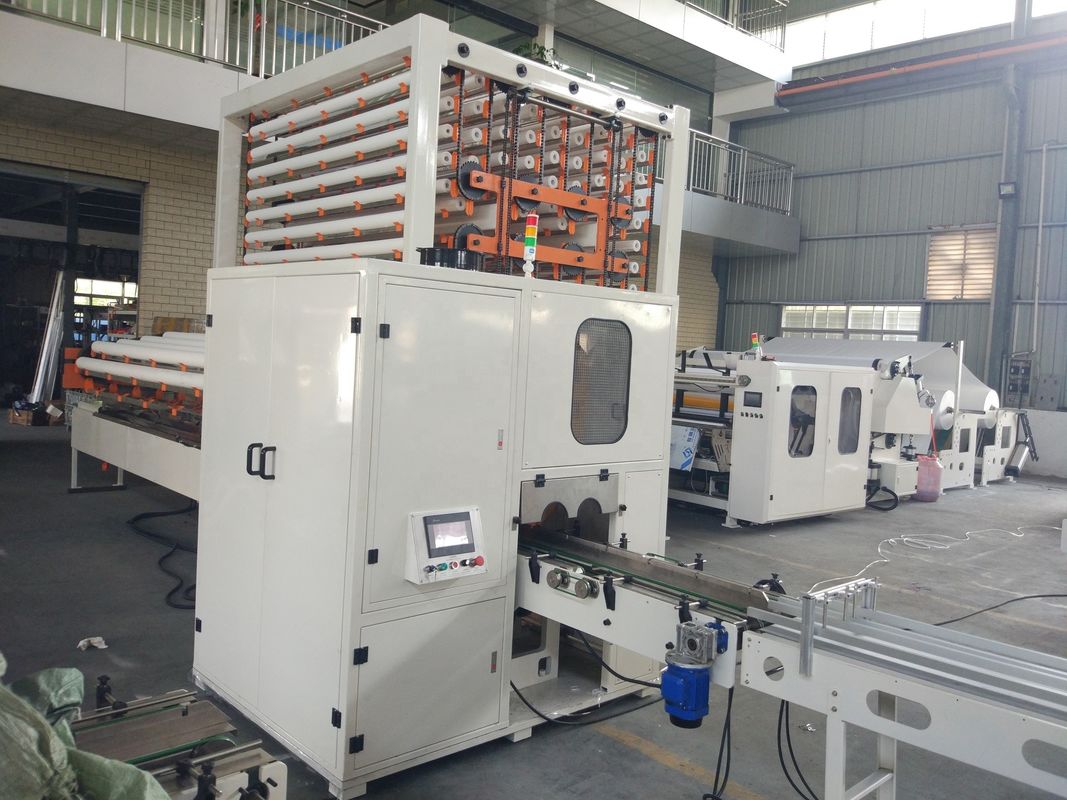

High Speed Toilet Roll Paper Cutting Machine Dual Channel 120 Cuts Per Min is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

Specification

Log Length	1300~3200mm
Output Channel	2 (can make 3 channel as per customers’ request)
Log Convey	Adopt servo motor system control pusher log location
Grinding Wheel System	Pneumatic sharpen, the sharpen parameter can adjusted in touch screen
Dust Suction System	This unit can suck dusk for grinding wheel
Cooling System	Use blower to cool the grinding blade
Log Outside Diameter	Φ90~Φ135mm(standard size: 110±5mm)
Cutting Length (mm)	Variable
Design Speed	160cuts/min, 2rolls/per cut
Operation Speed	140~150cuts/min, 2rolls/per cut
Blade Outside Diameter	Φ610mm
PLC	Siemens
Installed Power	10.5KW (main motor)

Feature

1. When the paper roll is pushed into the cutting system, it will be nipped by the clamp tool and cut after

it is sent to the blade.

2. Equipped with advanced photoelectric checking system and large diameter of spiral cutter, it can auto

set the length and cut precisely.

3. The cutting system is under perfect designing with auto sharpening system, while the grinding bowl can

count precisely to grind the blade in time as per the cutting times.

4. The machine adopts advanced servo driving, frequency convention speed regulating. PLC control and

touching screen operation. The blade grinding frequency, the cutting speed as well as the cutting length is

adjustable on PLC screen. Which have smoothed the pushing, cutting and sharpening.

5. Equipped with pneumatic brake function, can prolong the service life of motor and make braking perfect.

6. Suction Device can absorb the waste produced by sharpening and discharge it out of the machine. It is

helpful to make the grinding sharper and reduce of the rate of defective products

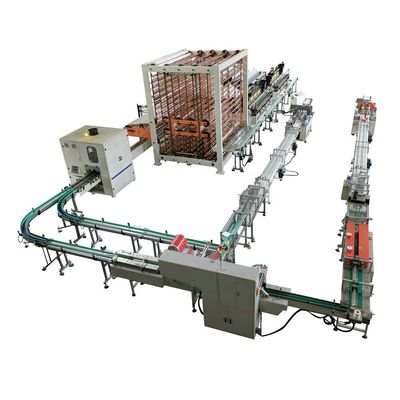

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
