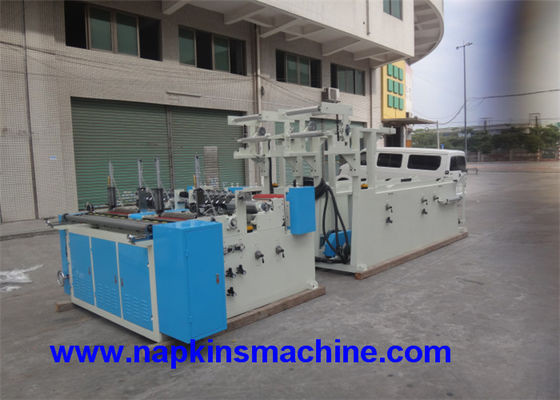

160 m / Min 2200mm Roll Width Paper Slitting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-JR-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Speed:	200m/min	Raw Parent Roll Width:	1400-3500mm
Perferation:	4 PCS	Winding:	Auxiliary Rewinding Shaft
Brake:	Electric And Pneumatic Control	Embossing:	Steel To Rubber
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Slitting Machine	Processing Type:	Paper Slitting Machine
High Light:	160m/Min Paper Slitting Machine , 2200mm Roll Width Paper Slitting Machine , 2200mm Roll tissue manufacturing machine

Hand Towel Jumbo Roll Paper Surface Coil Slitting Machine For Napkin Paper Making

Description

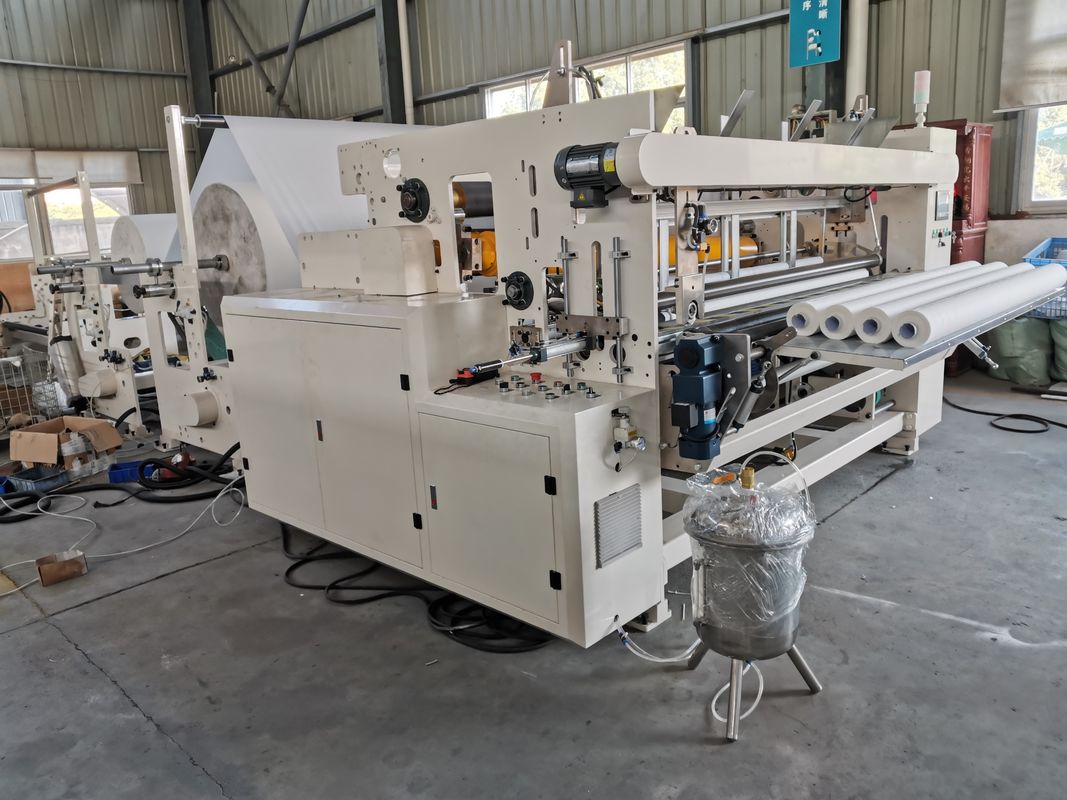

Hand Roll Towel Slitting Machine for Maxi 2200mm Raw Parent Roll Width is to perforate and cut the raw paper into various sizes according to the requested.

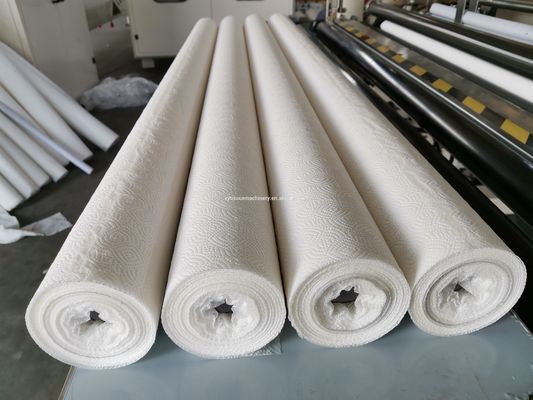

The finished product is neat, in good order and with equality tension.

It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min.

This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. There are two types of this model:

A) is ordinary type, it used one embossed unit for 2 ply paper,

B) other is dot-by-dot type, it used embossed units respectally for each one.

This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.

Specification

Model	1092	1575	1760	2200	2500	2800	3000	3200
Max Width of Raw Paper	1300mm	1800mm	2000mm	2200mm	2500,mm	2800mm	3000mm	3200mm
Outer Dia. of Raw Paper	1200mm (Other size to be specified)
unwinding stand	1-3 Stands (The Qty. of raw paper rolls to be specified) ( To be ordered)
Inner Dia. of Raw Paper Core	3 inches (76.2) (Other Size need order)
Data setting	Human-machine interface(the touching screener is optional.)
Programming Controller	PLC
Braking	Electronical / pneumatic
Machine Speed	0-200m/per hour
Operating Speed	0-180m/per hour
Outer Dia. of Finished Product	90-135 mm (Other Size to be Specified)
Dia. of Finished Product Core	25-50m 25-50m
Dia. Control of Finished Product	Electronical / pneumatic
perforating	4 pieces of circular soft knives,the distance is 108±2mm(Other Size to be Specified)
Perforating distance	Adjustable
Pneumatical System	Air Compressor, minimum pressure 5kg/cm2pa(offered by customers)
Control Voltage	regulated power DC24V(for your reference ,need order)
Main Machine Structure	Wallboard type
Mainframe Transmission	Stepless gear-box
Move Mode	Synchronous Belt
Main Transmission	conversion adjusting 5.5-22kw
Optional function
Perforation knife	4 knives :the distance is 90-140mm
	2 knives: the distance is 200-350mm
	1 knife: the distance is200-500mm
Perforating control	Pneumatic
Embossment	Single Embossing,Double Embossing ,Steel to Steel Embossing ,Pneumatic Embossing (To be Ordered)
Side Rolling Embossment	Independent Pneumatic
Gluing and Laminating	kitchen paper towels: Gluing form point to point or point to the whole surface of the paper
	Color glue tissue roll

Functions and Features

1. Adopting with advanced PLC programming technology, and variable speed adjustment, each device with different function can be operated independently.

2. Loading and locating cores by manual(no need change steel tube), which can save time and labor .The special core located device can save core store area for customers.The machine can start winding again after finishing winding.

3. Pneumatic adjusting device adjusts the tightness and tension of the finished product, keeping diameter of finished product same .The tension can be adjusted randomly.

Point to point embossing device: the paper have clearer and better embossing with light weight. Steel to steel embossing unit can be equipped according to the need of customers.

4. Horizontal type unwinding stands: pneumatic wide belt to feed paper,each jumbo roll has independent tension adjustor and left-right adjusting device.Adopts front and back jogging button to guide paper ,with easy and safe operation.

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
