1750mm Width 2 Color Printing 3HP Paper Roll Slitter

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-JR-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Application:	Jumbo Roll	Speed:	200m/min
Raw Parent Roll Width:	1400-3500mm	Winding:	Auxiliary Rewinding Shaft
Embossing:	Steel To Steel	Touch Screen:	Delta
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Slitting Machine	Processing Type:	Paper Slitting Machine
High Light:	1750mm Width Paper Roll Slitter , 2 Color Printing Paper Roll Slitter

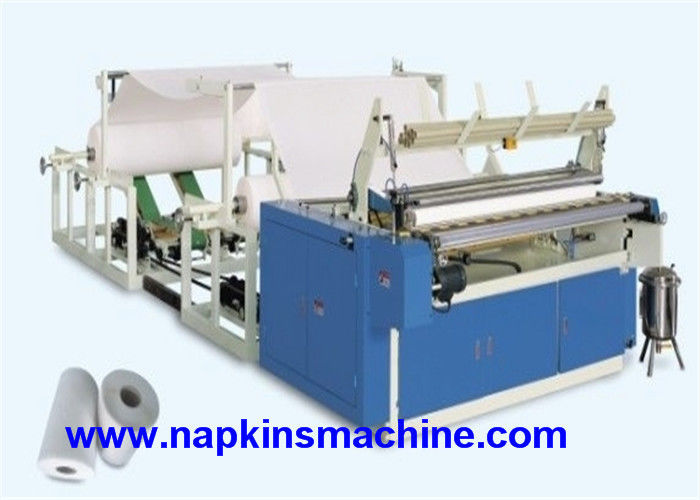

Industrial Paper Roll Slitting And Rewinding Machine With Edge Embossing

Description

Jumbo Roll Bath Tissue Slitting Rewinding Machine for Maxi 3500mm Width makes both JRT industrial roll (big toilet paper roll) and hand towel roll, it's easy to change in a short time. With edge embossing or full embossing (option), perforating, slitting and rewinding functions. Pneumatic jumbo roll loading, belt driving and web tension-control devices. The finished roll rewinded by air-fill shaft.

Specification

Model	1092/1575/1760/2500/2900
Max width of raw paper	1350/1750/2000/2400/2800 mm, other sizes to be specified
Max outer diameter of raw paper	1100 mm, other sizes to be specified
Inner diameter of raw paper core	3",76 mm, other sizes to be specified
Outer diameter of finished product	90-420 mm, other sizes to be specified
Product diameter control	electric/pneumatic
Speed	0~250m/min
Operation speed	0~230m/min
Power	4~22kw varial frequency speed regulating
Winding	Auxiliary rewinding shaft
Brake	electric&pneumatic control
Pneumatic system	4HP air compressor, which the min pressure is 5kg/cm2pa(supplied by user)
Perforating blade	4 pcs spiral blades
Perforating Size	110(±3mm)
Dimension and weight	depends on model and configuration
Options	Options
*Adjustable perforating Size	4 blades: 90-140mm 2 blades: 200-350mm 1 blade: 200-500mm (+-3mm) , to be specified
*Backstand	1~4ply (plies), to be specified
*Embossing	single embossing, double embossing, steel to steel (point to point/convex to plane), steel to felted , steel to paper woolen , steel to rubber , pneumatic, to be specified

Functions and Features

1. PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.
2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.
3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose.
4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5. When raw material broken, the machine will stop automatically.
6. Each raw material unreel separately , equip with tension control.
7. Easy to adjust in order to suitable different paper core.
8. There is tail after the finished product sealed with

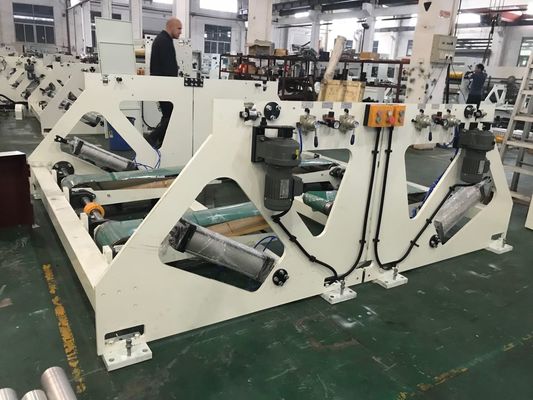

9. There is pneumatic jack to load the raw material on machine
As required, the machine can equip with single color or double colors printing device, the pattern is vivid.
The machine can equip with two sets of embossing device according to requirements.

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
