| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-JR-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
| Application: | Jumbo Roll | Speed: | 200m/min |
|---|---|---|---|
| Raw Parent Roll Width: | 1400-3500mm | Perferation: | 4 PCS |
| Winding: | Auxiliary Rewinding Shaft | Unwind Stand: | One Or Two |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Slitting Machine | Processing Type: | Paper Slitting Machine |
| High Light: | 200m/Min Roll Slitter Rewinder,380V Automatic Roll Slitter Rewinder,380V Automatic tissue manufacturing machine |
||

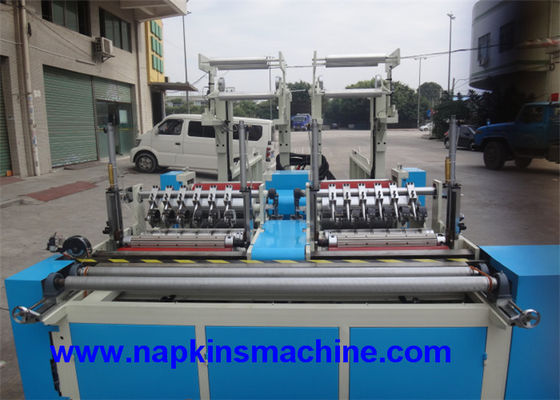

200 m / Min 380V Automatic Roll Slitter Rewinder / Tissue Manufacturing Machine
Description
200 m / Min 380V Automatic Roll Slitter Rewinder / Tissue Manufacturing Machine is mainly used for rewinding the jumbo roll into two-layer or three-layer toilet paper.
This rewinding take advanced PLC computer programming technology, frequency control, electric brake and equip with touch screen man-machine interface operating system. System upgrades and realizes rewinding paper without core. Application of PLC computer programming technology can get effect of rewinding toilet paper without core and steel tube. It has function of automatic rewinding, automatic glue, trimming, put welled roll out and flatten. New design, perfect matching, let rewinding machine comprehensive upgrade to meet the demand of the markets; the technical application is faster and more convenient.
Specification
|
Model |
1092/1575/1760/2500/2900 |
|
Max width of raw paper |
1350/1750/2000/2400/2800 mm, other sizes to be specified |
|
Max outer diameter of raw paper |
1100 mm, other sizes to be specified |
|
Inner diameter of raw paper core |
3",76 mm, other sizes to be specified |
|
Outer diameter of finished product |
90-420 mm, other sizes to be specified |
|
Product diameter control |
electric/pneumatic |
|
Speed |
0~250m/min |
|
Operation speed |
0~230m/min |
|
Power |
4~22kw varial frequency speed regulating |
|
Winding |
Auxiliary rewinding shaft |
|
Brake |
electric&pneumatic control |
|
Pneumatic system |
4HP air compressor, which the min pressure is 5kg/cm2pa(supplied by user) |
|
Perforating blade |
4 pcs spiral blades |
|
Perforating Size |
110(±3mm) |
|
Dimension and weight |
depends on model and configuration |
|
Options |
Options |
|
*Adjustable perforating Size |
4 blades: 90-140mm 2 blades: 200-350mm 1 blade: 200-500mm (+-3mm) , to be specified |
|
*Backstand |
1~4ply (plies), to be specified |
|
*Embossing |
single embossing, double embossing, steel to steel (point to point/convex to plane), steel to felted , steel to paper woolen , steel to rubber , pneumatic, to be specified |
Functions and Features
1. Winding with air shaft.
2. Unwind stand: jumbo reel is pneumatic unwinding , with manually paper tension adjusting
unit and lateral adjusting unit for each jumbo reel.
3. Pneumatic loading of jumbo reel can greatly reduce the working tension.
4. *Edge-embosser unit: Individual pneumatic-controlled embosser bearing,
with high-hardness bottom roller.
5. *Automatic tail-trimming and sealing unit: the trimming,
gluing and sealing can be synchronized done.
Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:

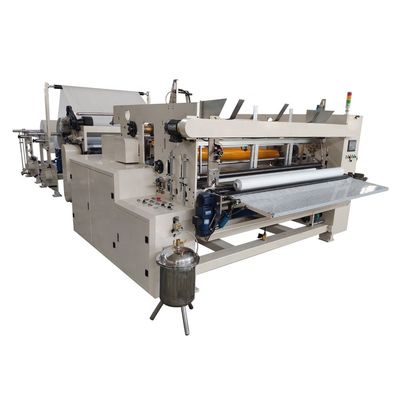

Machine Detail Pictures:
Deco Color Lamination Parts:

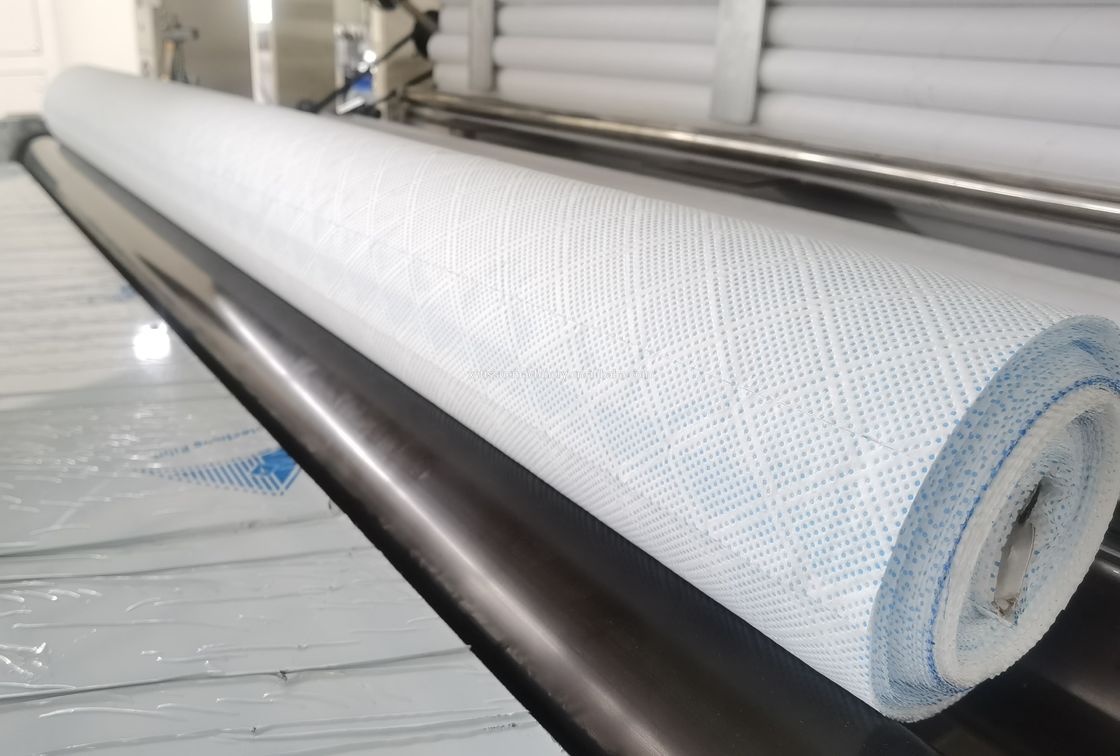

Finished Products:
