2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine

2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine

2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine
video
2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-LSW-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 40 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 5 Sets/ Month
Contact Now
Detailed Product Description
Speed: 120 Cuts/min Channel: Two Channel
Application: Cutting Toilet Tissue Roll Log Length: 1400-3200mm
Log Diameter: 90-150mm Round Knife Diameter: 610mm
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Slitting Machine Processing Type: Paper Slitting Machine
High Light:

2 Channel 380V Paper Roll Cutter Machine

,

20 Cuts/Min Paper Roll Cutter Machine

,

2 Channel 380V tissue manufacturing machine

High Precision Log Saw Cutting Machine , Two Channel Paper Roll Cutter Machine





Description



Full Automatic  Paper Roll Cutting Machine Two Channel 120 Cuts Per Min is used to cut tissue paper. It is  operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.





Specification



Main Technical Parameter

Log length

1500mm~2700mm

Log outside diameter

90mm~150mm (standard size: 110±5mm)

Cutting length

variable

Machine speed

160 cuts/min, 2 rolls /cut

Operation speed

150 cuts/min, 2 rolls /cut

Blade outside diameter

610mm

Installed power

Alternating Current: 5 Horses per Machine

Frequency Conversion

5 Horses per Machine

Alternating Current

1/2 Horses per Machine, AC motor 5 Horses



Function & Assemble Parts



1. Equip with programmable controller to auto control production. Auto reset, push roll, the cutting length of each roll with adjustable and controllable cutting lifetime period.

2. Equip man-machine interface to control the operation with production parameter and breakdown displaying on the screener.

3. Adopt photoelectric inspecting unit and servo driving unit. Electric components and bearing are best quality.

4. It is equipped with auto supplying grinding unit with high accuracy of grinding and safe guarantee.





Main Technical Parameter



1. Length of jumbo roll: 1200-2800mm

2. Paper roll diameter: Φ90mm-Φ150mm(standard size:110±5mm)

3. Production speed: cutting times is 80 to 100 rolls per minute ;

4. Machine Power: 10KW (380V 50HZ)

5.Equipment Over Size (L×W×H): 6.9×1.72×1.92M

6. Weight: About 2 tons

7.Cutting length:60-300mm (length is changeable, servo control)

8.Error of finished product:±1mm

2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 0



Features:

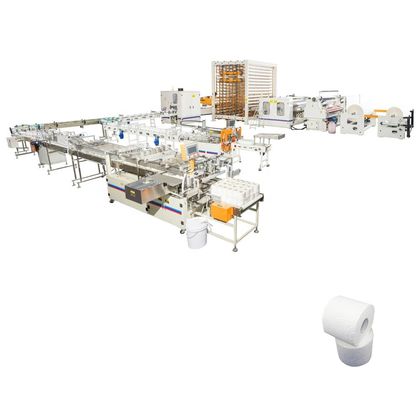

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic


Machine Detail Pictures:

2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 1
2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 2
2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 3

Deco Color Lamination Parts:

2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 4
2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 5
2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 6

Finished Products:

2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 7
2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 8
2 Channel 380V 20 Cuts / Min Paper Roll Cutter Machine 9
