4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine

4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine

4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine
video
4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-JR-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets/Month
Contact Now
Detailed Product Description
Application: Jumbo Roll Speed: 200m/min
Raw Parent Roll Width: 1400-3500mm Perferation: 4 PCS
Motor: Siemens Brake: Electric And Pneumatic Control
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Slitting Machine Processing Type: Paper Slitting Machine
High Light:

4 PCS Paper Rewinder Machine

,

Steel Jumbo Roll Paper Rewinder Machine

,

Steel Jumbo Roll Paper Slitting Machine

4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine



Description


4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine is  consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.

Feature

1. Production process is controlled by PLC toilet marking toilet paper making machine,the machine for toilet paper machine
2. Operated and controlled by man-computer dialogue,with production parameter displayed and equipment stopped automatically whtn paper is broken
3. Jumbo roll paper is pneumatically fed and unwinding is equipped independently with a tension control device
4. The rewinding process of the product is tight first and loosen afterward,with its tension adjustable
5. Perforating line distance is adjustable toilet marking toilet paper making machine,the machine for toilet paper machine
6. Replacement of paper core,spraying of glue,cutting of paper ,all thesse work will be donme in sequence on the machine
7. Embossying are available with patterns to be selscted by client
8. Bearing ,electric components and synchronous belt are chinese famous brands
9. Double embossying roller can be produced to meet customers’demands,glue applying device can be added to produce kitchen towel,the auxiliary1-3 color printing device can additionally be provided toilet marking toilet paper making machine,the machine for toilet paper machine

Specification


Model

1092/1575/1760/2500/2900

Max width
of raw paper

1350/1750/2000/2400/2800 mm, other sizes to be specified

Max outer diameter
of raw paper

1100 mm, other sizes to be specified

Inner diameter
of raw paper core

3",76 mm, other sizes to be specified

Outer diameter of
finished product

90-420 mm, other sizes to be specified

Product diameter control

electric/pneumatic

Speed

0~250m/min

Operation speed

0~230m/min

Power

4~22kw varial frequency speed regulating

Winding

Auxiliary rewinding shaft

Brake

electric&pneumatic control

Pneumatic system

4HP air compressor, which the min
pressure is 5kg/cm2pa(supplied by user)

Perforating blade

4 pcs spiral blades

Perforating Size

110(±3mm)

Dimension and weight

depends on model and configuration

Options

Options

*Adjustable perforating
Size

4 blades: 90-140mm
2 blades: 200-350mm
1 blade: 200-500mm (+-3mm)
, to be specified

*Backstand

1~4ply (plies), to be specified

*Embossing

single embossing, double embossing, steel
 to steel (point to point/convex to plane),
steel to felted , steel to paper woolen , steel
to rubber , pneumatic, to be specified





Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic

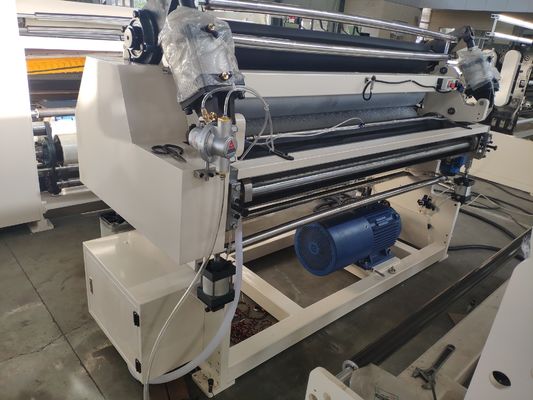

Machine Detail Pictures:

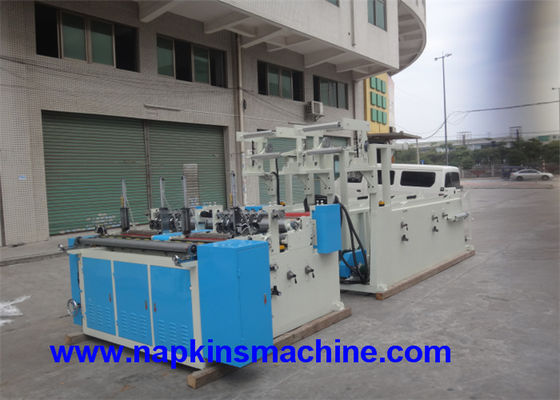

4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 1
4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 2
4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 3

Deco Color Lamination Parts:

4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 4
4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 5
4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 6

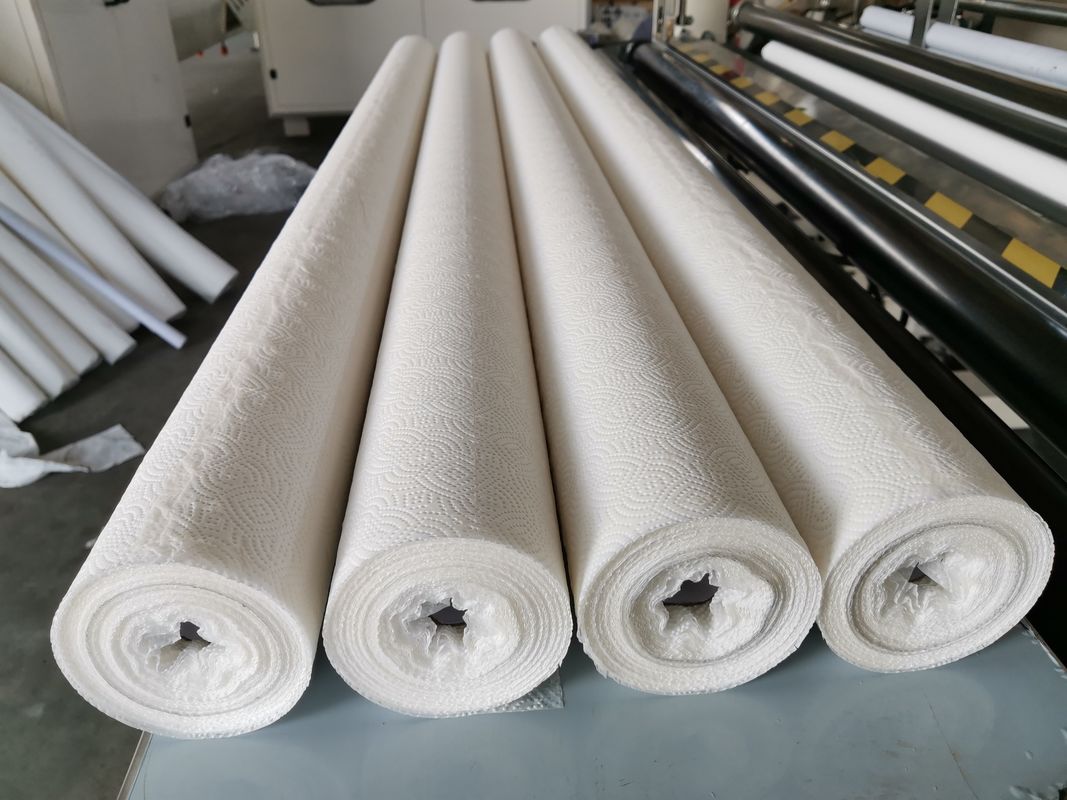

Finished Products:

4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 7
4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 8
4 PCS Steel Jumbo Roll Paper Rewinder Machine / Paper Slitting Machine 9
