60 Cuts / Min One Channel 10KW Paper Slitting Machine

60 Cuts / Min One Channel 10KW Paper Slitting Machine

60 Cuts / Min One Channel 10KW Paper Slitting Machine
video
60 Cuts / Min One Channel 10KW Paper Slitting Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-LSW-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 40 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 5 Sets/ Month
Contact Now
Detailed Product Description
Speed: 150 Cuts/min Channel: One Channel
Application: Cutting Toilet Tissue Roll Log Length: 1400-3200mm
Log Diameter: 90-150mm Weight: 3500KGS
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Cutting Machine Processing Type: Paper Cutting Machine
High Light:

60 Cuts/Min Paper Slitting Machine

,

One Channel 10KW Paper Slitting Machine

,

One Channel 10KW tissue paper cutter



High Capacity Jumbo Roll Paper Cutting Machine 60 Cuts Per Min





Description



High Capacity Jumbo Roll Paper Cutting Machine 60 Cuts Per Minis used to cut toilet paper and kitchen roll paper. It is easy to operate and enjoy high speed. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.





Function and features



1.This machine is used to cut toilet paper and kitchen roll paper. It is easy to operate and enjoy high speed

2.Adopt computer control production, reset automatically, cut, cut and wrap length, adjustable the period of cutting.

3.Equipped with touch screen person-to-computer control, production parameter, production trouble can be showed on the screen.

4.610 mm diameter disc knife high speed revolving rapidly. ( cut two roll paper at one time).Without knife mark and rough edges while cutting.

5.Equipped with photoelectric checking system, servo driving system, pneumatic element, bearing tool and other advanced products.

6.Equipped with feeding knife grinder, the grinding of knife blade is higher precision. It is safe and insures while grind the knife.



Main technical parameter



1. Paper Roll Length: 1200~2500mm (it is according to customers requirement)

2. Diameter of paper roll: φ90~φ160mm ( Confirmed by customer)

3. Production speed: times of cut 80~100 times/min ×2 roll/time

4. Power 10kw(380v 50Hz)

5. Overall size: 7.1m×1.6m×2.5m( L×W×H)

6. Weight: about 3000Kg





Specification



Paper Roll Length:

1300~3200mm (Different in log length, different in machine price)

Finished products diameter

105±5mm (please specify ,more than130mm height need order separately)

Horizontal cutting length

Changeable, Servo control, Tolerance ±1m

Specification of the Finished Products

Log outer diameter: 90mm-150mm(unless specified request, we generally supply the clamp according to the standard of 110±5mm)

Cutting Length: 50-300mm

Edge Length: 25-50mm

Finished products diameter

105±5mm (please specify ,more than130mm height need order separately)

Machine Speed

140-150 cuts/min, 2 rolls/cut

Operating speed

100-120 cuts/min, 2 rolls/cut

Function model

Spiral rotating round blade & continued paper log marching

Pushing drive control

Servo motor driving

Knife grinding

Pneumatic grinding wheel, time and rate can be controlled on panel, it can grinding through automatic process

Round blade outer diameter

610mm

Clamping tool (mould)

Exchangeable (please point out the diameter of log.)

Power

10KW,380V,50HZ(Other voltage need order)

Machine size LXWXH (M)

(7-9) X 2 X 1.8 M

Weight

About 2500-3000KG



60 Cuts / Min One Channel 10KW Paper Slitting Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic

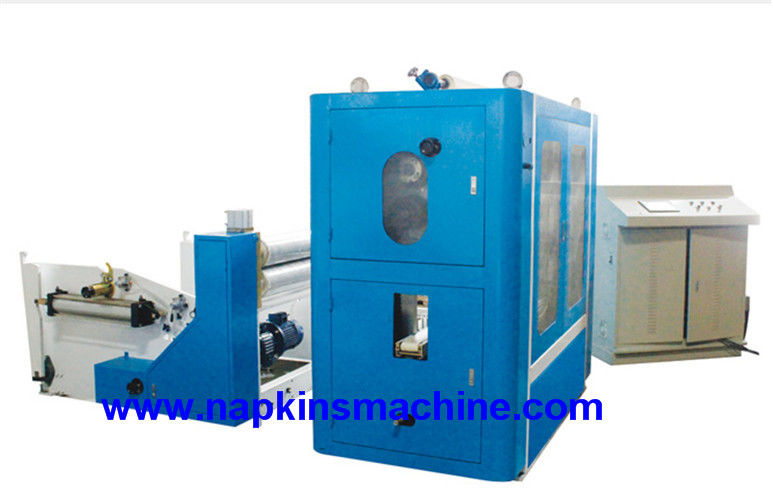

Machine Detail Pictures:

60 Cuts / Min One Channel 10KW Paper Slitting Machine 1
60 Cuts / Min One Channel 10KW Paper Slitting Machine 2
60 Cuts / Min One Channel 10KW Paper Slitting Machine 3

Deco Color Lamination Parts:

60 Cuts / Min One Channel 10KW Paper Slitting Machine 4
60 Cuts / Min One Channel 10KW Paper Slitting Machine 5
60 Cuts / Min One Channel 10KW Paper Slitting Machine 6

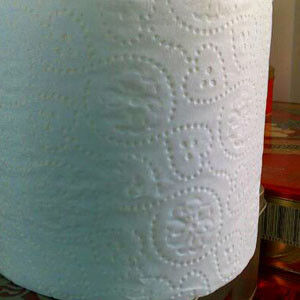

Finished Products:

60 Cuts / Min One Channel 10KW Paper Slitting Machine 7
60 Cuts / Min One Channel 10KW Paper Slitting Machine 8
60 Cuts / Min One Channel 10KW Paper Slitting Machine 9
