| Place of Origin: | Dongguan, Guangdong, CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-NP-I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 45days after down payment |
| Supply Ability: | 2 sets per month |
| Embossing: | Steel To Paper Or Steel To Steel | Speed: | 2200 Sheets Per Min |
|---|---|---|---|
| Lamination: | Point To Point Or Point To Nest | Frequency Converter: | Delta |
| Motor: | SIEMENS | Touch Screen: | Delta |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Power(w): | 5.5KW | Warranty: | One Year |
| High Light: | 660mm Width Tissue Paper Machinery,2200 Sheets/Min Tissue Paper Machinery,660mm Width tissue paper folding machine |
||

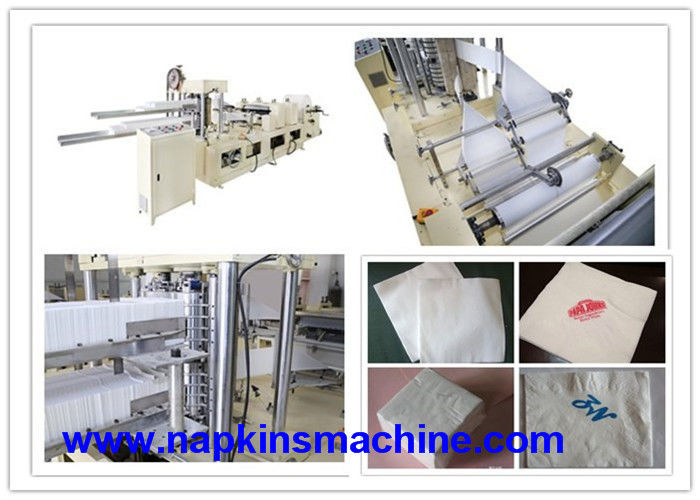

Color Printing Napkin Manufacturing Machine Tissue Paper Machinery
Color Printing Napkin Manufacturing Machine Tissue Paper Machinery is to produce napkin tissue from big roll. The process includes mbossing , folding , cutting and so on process. The size for the machine vary from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.
|
Unfold size of napkin |
300x300 mm |
330x330 mm |
Other size please point out |
|
Fold size of napkin |
150x150mm |
165x165mm |
|
|
Width of jumbo roll |
600mm |
660mm |
|
|
Speed |
800-1200 sheet/minute (speed varies according to different paper) |
||
|
Embossing Unit |
Full or border embossing |
||
|
Printing Unit |
1-3 color flexo printing As per requirement |
||
|
Core Inner Diameter |
76.2mm |
||
|
Parent Roll Diameter |
1200mm |
||
|
Interfold style |
1/4 folding |
||
|
Installed Power |
4.5 KW 380V 50Hz 3Phase (other Voltage, please point out) |
||
|
Air Pressure Required |
0.5Mra ¼ Hose (Prepared by buyer) |
||
|
Transmission |
Timing Belts |
||
|
Controlling System |
Frequency drive |
||
|
Machine Weight |
2000kg |
||
|
Oversize of machine |
5200x1200x1800mm |
||
Speed: 3000 sheets / min
Folding Type: 1 / 4 and 1 / 8 or 1 / 6 or M fold or Two folding Type
Embossing: steel to steel or steel to paper.
Important parts Bearing: NSK
Important parts Steel: SKD
PLC: Delta
Frequency Converter Delta
Pneumatic Parts AIRTACK
Motor: SIEMENS
Pneumatic Parts AIRTAC
Photoelectrical switch (magic eye) Omron
20mm thickness wall board plate for back stand
40mm thickness wall board plate for embossing unit and color printing unit
30 mm thickness wall board plate for cylinder folding parts
One Layer and Belt to deliver paper and controlled by Pump
Raw Paper Manual Adjustment
One unit steel to woolen Roller
Mechanical pressure control
cotton cloth and paraffin oil Cleaning Device
Leading Paper Roll Function , the folding tension of the fore part adjustable
Counting Device: Pneumatic dislocation type
Frequency Conversion Device
Automatic Counting Function
Emergency Device
Voltage: AC380V 50HZ Main Motor 2.2KW,
Air pressure required less than 0.5 MPA
Q1: Can you guarantee your quality?
A: Of course. We are the manufacturer. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production.
Q2: How long is your delivery time?
A: Generally it is 40-60 working days.
Q3: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q4: How to place the order?
A: Please send us your purchase order by inquiry, and ask us to send you Proforma Invoice for your order. We need to know the following information for your order:
1) Product information: material, drawings ,sizes ( diameter range and thickness range), Application, Price Item, Destination Port.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
