2 Deck Laminated 5.5KW Color Printing Napkin Folding Machine

Product Details:

Place of Origin:	Dongguan, Guangdong, CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-NP-I

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden packing
Delivery Time:	45days after down payment
Supply Ability:	2 sets per month

Contact Now

Detailed Product Description

Folding Type:	4 FOLD AND TWO FOLD AND EIGHT FOLD	Embossing:	Steel To Paper Or Steel To Steel
Speed:	3000 Sheets Per Min	Lamination:	Point To Point Or Point To Nest
Color Printing:	1 To 4 Color Printing	Frequency Converter:	SIEMENS
Motor:	SIEMENS	Touch Screen:	SIEMENS
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Product Name:	Laminated Napkin Making Machine
Application:	Napkin Folding Machine To Produce Napkin Paper	Power(w):	5.5KW
Dimension(lwh):	320010001800mm	Warranty:	One Year
Condition:	NEW
High Light:	2 Deck Laminated Napkin Folding Machine , 5.5KW Color Printing Napkin Folding Machine , 5.5KW Color Printing napkin folder machine

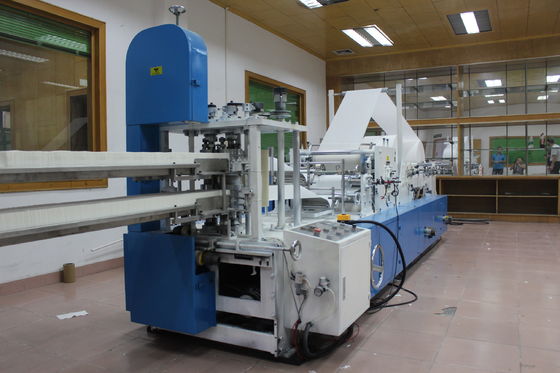

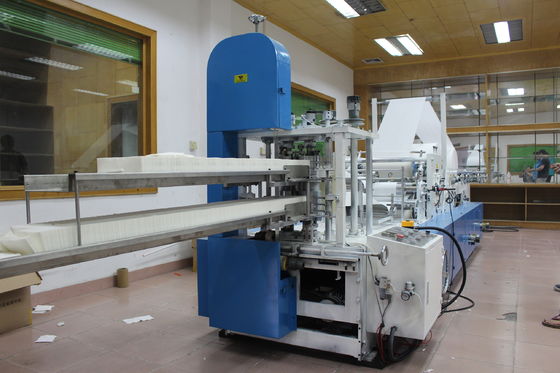

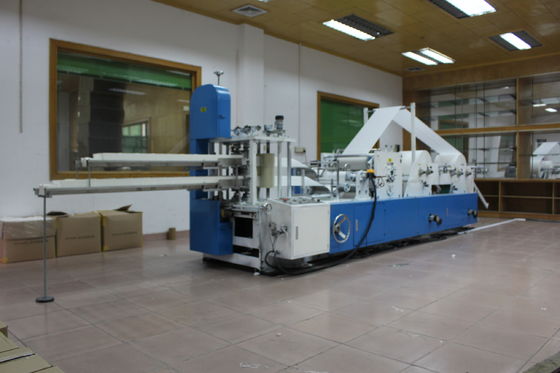

Laminated and Color Printing Napkin Making Machine With 2 Deck

Description

Laminated and Color Printing Napkin Making Machine With 2 Deck is used for produce square napkin tissue from jumbo roll. The process including embossing , folding , cutting and so on process. The size for the machine vary from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.

Specification

Open size of finished product	200200-430430mm (to be specified)
Diameter of Raw Paper Roll	1100mm(other size to be specified)
Inner Diameter of Paper core	76.2mm(3 inch) (other size to be specified)
Capacity	3000pieces/min
Counting Device	Electronic Counting
Embossing Roller	Woolen Roller
Power	Frequency Conversion Speed Regulator
Calendaring	Steel to steel or steel to rubber
Embossing unit	Felted roller, woolen roller, Rubber roller
Color Printing	1-2 color
Dry Device	Hot Wind Heating System

Spare Parts List

NO	ITEM	QUA
1	Plastic male knife	4
2	Band Saw	2
3	Tool Box	1
4	Grinding Stone	4

Feature

Speed: 3000 sheets / min
Folding Type: 1 / 4 and 1 / 8 or 1 / 6 or M fold or Two folding Type
Embossing: steel to steel or steel to paper.
Important parts Bearing: NSK
Important parts Steel: SKD
PLC: Delta
Frequency Converter Delta
Pneumatic Parts AIRTACK
Motor: SIEMENS
Pneumatic Parts AIRTAC
Photoelectrical switch (magic eye) Omron
20mm thickness wall board plate for back stand
40mm thickness wall board plate for embossing unit and color printing unit
30 mm thickness wall board plate for cylinder folding parts

Introduction of main parts

Paper-feeding part

One Layer and Belt to deliver paper and controlled by Pump

Raw Paper Manual Adjustment

Embossing Part

One unit steel to woolen Roller

Mechanical pressure control

cotton cloth and paraffin oil Cleaning Device

Folding Part

Leading Paper Roll Function , the folding tension of the fore part adjustable

Counting Device: Pneumatic dislocation type

Control Unit

Frequency Conversion Device

Automatic Counting Function

Emergency Device

Voltage: AC380V 50HZ Main Motor 2.2KW,

Air pressure required less than 0.5 MPA

Our Service

Why choose us?

Good quality of machine with reasonable price.

Good service: Any question from customer will be reply within 24 hours

We will equip the easy damageable parts with the machine.

After the machines arrive, we will send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.

FAQ

Q1: Can you guarantee your quality?

A: Of course. We are the manufacturer. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production.

Q2: How long is your delivery time?

A: Generally it is 40-60 working days.

Q3: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.

Payment>=1000USD, 30% T/T in advance, balance before shippment.

Q4: How to place the order?

A: Please send us your purchase order by inquiry, and ask us to send you Proforma Invoice for your order. We need to know the following information for your order:

1) Product information: material, drawings ,sizes ( diameter range and thickness range), Application, Price Item, Destination Port.

2) Delivery time required.

3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
