Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min

Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min

Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min
video
Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-BSW-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after Down Payment
Payment Terms: L/C, T/T
Supply Ability: 5 Sets Per Month
Contact Now
Detailed Product Description
Application: Toilet Roll Speed: 120 Cuts/min
Cutting Blade: Band Saw Automation: Full Automatic
Log Diameter: 90-250mm Log Length: 1400-2700mm
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 5.5KW
Product Type: Paper Cutting Machine Processing Type: Paper Cutting Machine
High Light:

Paper Roll Cutting Machine

,

Jumbo Roll Cutting Machine

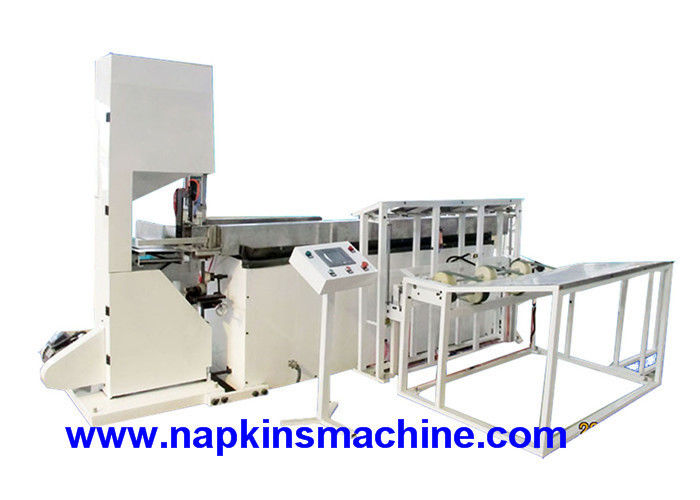

Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min





Description



Automatic Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other

international advanced technology con automatically detect each key action, has good fault information

prompt system, make the whole production line achieving the best working state.

This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.





Specification





Cutting speed

60~100cuts/minute

Cutting blade

band saw blade(Size 3850*40*0.6)

Toilet log length

≤ 2850mm(it can be made according to customer request)

Finished toilet roll length

≤ 300mm

Finished toilet roll diameter

70-130mm

Cutting tolerance

±1.5mm

Power supply

5kw  380V 50H3 phase 4line

Overall size

2800x1500x2100mm

Machine weight

1100KG





Main Feature



1. The transducer independent driver is used in the main motor;

2 . The cutting knife automatically stops and gives an alarm;

3 . When the paper can not be cut down,the equipment will

4 . The high precision servo system is used in the feed motor servo system,to ensure the quality of the finished product



5 . The equipment automatically calculate the quantity of the finished product being cut;according to the raw material and the length of the finished product;



6 . When data input is incorrect,the equipment breaks off and prompts to adjust on the interface;



7 . The cut paper head and paper end can be automatically sorted;



8 . Cut with knife is used in the equipment,which reduce the use cost of the user;



Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic

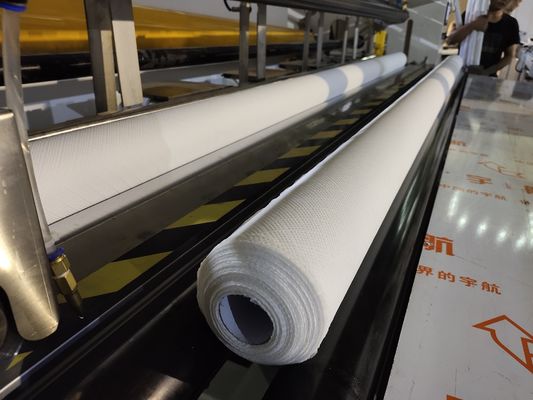

Machine Detail Pictures:

Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 1
Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 2
Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 3

Deco Color Lamination Parts:

Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 4
Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 5
Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 6

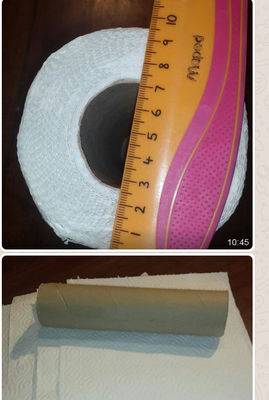

Finished Products:

Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 7
Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 8
Horizontal Band Saw Cutting Machine for Facial Tissue 100 Cuts Per Min 9
