Jumbo Roll Tissue Paper Roll Cutting Machine , PLC Program Control

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-BSW-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	5 Sets Per Month

Contact Now

Detailed Product Description

Application:	Toilet Roll	Speed:	120 Cuts/min
Cutting Blade:	Band Saw	Automation:	Full Automatic
Log Diameter:	90-250mm	Log Length:	1400-2700mm
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	5.5KW
Product Type:	Paper Cutting Machine	Processing Type:	Paper Cutting Machine
High Light:	automatic band saw machine , Jumbo Roll Cutting Machine

Jumbo Roll Tissue Paper Roll Cutting Machine , PLC Program Control

Description

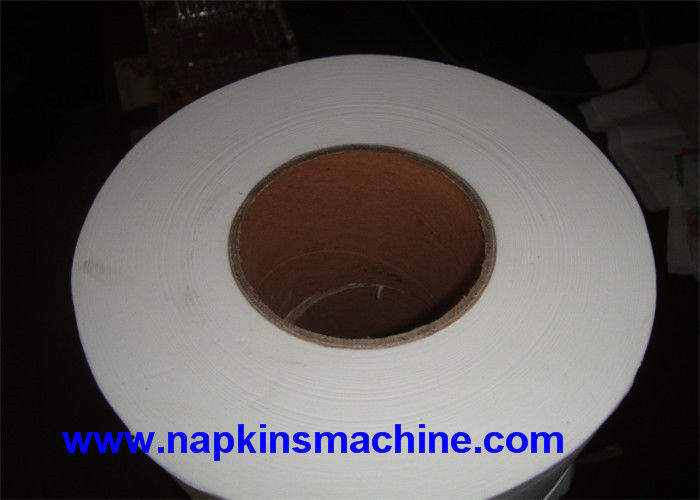

Paper Roll Cutting Machine Paper Roll Cutting Machine Jumbo Roll is used to cut the jumbo roll tissue. The maintenance cost for the machine is less than log saw cutting machine.

The equipment is operated by using PLC program control,big screen true color human computer interface.

Specification

ITEM	PARAMETER
max.width of roll(mm)	3000
design speed	130cuts/min,1roll/cut
producing speed	90cuts/min,base on the length of roll
roll feeding	servo motor driving,feeding belt clamping,stop-start feeding to keep the cutting length precisely
cutting way	motor driving the wheel running and drive the band saw cutting
feeding way	cylinder push the roll into conveyor,and the conveyor stop-start feeding
grinding way	motor driving the grinding wheel grind the band,the grinding parameter can be set on touch screen
grinding feeding	automatic grinding,the grinding parameter can be set on touch screen
cutting length setting	setting on touch screen,tolerance is:±1mm;cutting range is:80—280mm
Cutting Vertical Tolerance	±1mm
finished product appearance	machine won’t pollute the roll and make the core out of shape
power	shaking motor:1.5KW;cutting motor:1.1 KW; servo motor:0.75KW;discharge motor:0.37KW; totally:3.72KW
roll feeding	servo motor control,timming belt transmission
roll discharge	green circular belt and flat belt transmission,reduction box transmission

Main Feature

1 . The transducer independent driver is used in the main motor;
2 . The cutting knife automatically stops and gives an alarm;
3 . When the paper can not be cut down, the equipment will stop and ask you to set the cutting depth.
4 . The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;
5 . The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;
6 . When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
7 . Cut with knife is used in the equipment, which reduce the use cost of the user;
8 . The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;
9 . The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency

10 . The thickness of paper core should be less 3mm

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

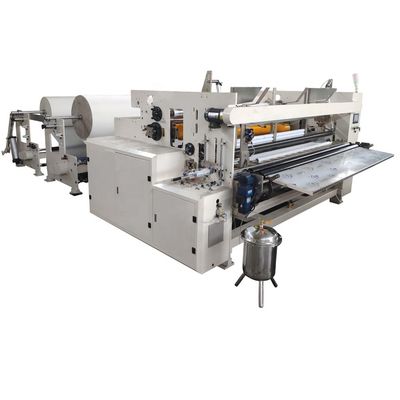

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

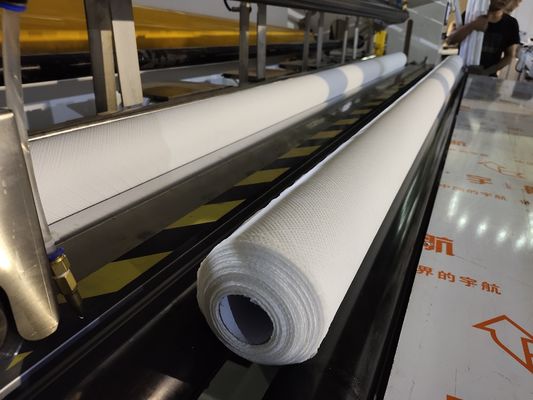

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
