PLC Control 3500mm 4 PCS Paper Slitting Machine

PLC Control 3500mm 4 PCS Paper Slitting Machine

PLC Control 3500mm 4 PCS Paper Slitting Machine
video
PLC Control 3500mm 4 PCS Paper Slitting Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-JR-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets/Month
Contact Now
Detailed Product Description
Speed: 200m/min Raw Parent Roll Width: 1400-3500mm
Perferation: 4 PCS PLC: SIMENES
MOTOR: SIEMENS Touch Screen: Delta
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Slitting Machine Processing Type: Paper Slitting Machine
High Light:

PLC Control Paper Slitting Machine

,

4 PCS Paper Slitting Machine

,

3500mm paper roll slitting machine

Automatic Multifunction Jumbo Roll Slitting Machine , PLC Programmable Control





Description



Perforated Roll Towel Slitting and Rewinding and Perferating Machine is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.





Specification



Model

1092

1575

2000

2200

2400

2600

2800

Raw material width

1330

1750

1950

2150

2350

2550

2750

Finished products diameter(mm)

≤Φ1200

Slitting Width (mm)



Adjustable

Material Diameter(mm)



≤Φ1100

Raw material core Diameter(mm)

76.2(Other sizes are available)

Speed

260-300m/min

Unwinding Unit

1-3layer(Can be appointed)

Calendering

Steel to Steel or Steel to Rubber(Option)

Pneumatic System

3HP Air Compressor,Mini Air Pressure5kg/cm2 Pa (provided by customer )

Power

4.5-11KW

Dimension(L×W×H)

6200x2600x1800~6200x4000x1800

Weight

3800~7000kg



Table 2



Option



Air-shaft

Rewinding unit

Transmission System

Frequency conversion speed regulator

Calendering system

double calender





Functions and Features


1. the machine is with international advanced plc programmable controlling technical, frequency conversion speed-regulator, electronic brake and man-machine interface operation table. the multi functions mounting on this machine has won the favor and credit among users by their profound practicability.
2. under european ce standard designing, passed ce certificate, with ce or ul certificate for electric parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. most of parts are precisely processed by numerical-control machine; the key mechanical parts are under cnc processing; while the main outsourcing parts are world famous brand.
4. automatic roll core splicing unit without manual core feeding; auto edge trimming, glue spraying and sealing synchronously in one time, which had materialized the popular technique of edge-trimming and tail-gluing as well as auto pushing out the final products after rewinding;
5. monitoring system on broken paper or torn edge under high-speed running the equipment; jumbo roll tension controlling system; pneumatic lifting the jumbo roll.
6. it can work together with color printing and rewinding machine or glue laminating unit to produce kitchen towel





Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

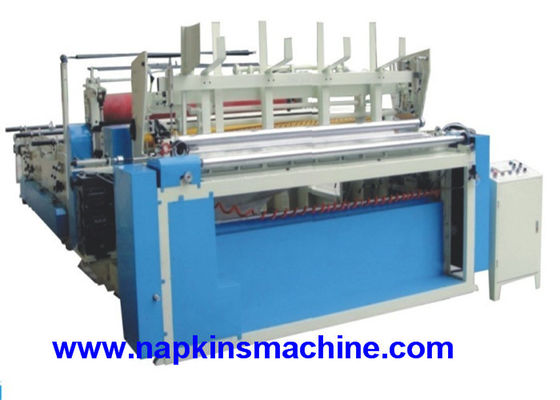

PLC Control 3500mm 4 PCS Paper Slitting Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic


Machine Detail Pictures:

PLC Control 3500mm 4 PCS Paper Slitting Machine 1
PLC Control 3500mm 4 PCS Paper Slitting Machine 2
PLC Control 3500mm 4 PCS Paper Slitting Machine 3

Deco Color Lamination Parts:

PLC Control 3500mm 4 PCS Paper Slitting Machine 4
PLC Control 3500mm 4 PCS Paper Slitting Machine 5
PLC Control 3500mm 4 PCS Paper Slitting Machine 6

Finished Products:

PLC Control 3500mm 4 PCS Paper Slitting Machine 7
PLC Control 3500mm 4 PCS Paper Slitting Machine 8
PLC Control 3500mm 4 PCS Paper Slitting Machine 9
