Toilet Paper Roll Slitting Machine and Rewinding Machine for Industrial Roll

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-IP-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Application:	Industrial Roll	Speed:	200m/min
Raw Parent Roll Width:	1400-3500mm	Perferation:	2 PCS
Winding:	Auxiliary Rewinding Shaft	Brake:	Electric And Pneumatic Control
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Slitting Machine	Processing Type:	Paper Slitting Machine
High Light:	automatic slitting machine , paper slitter rewinder machine

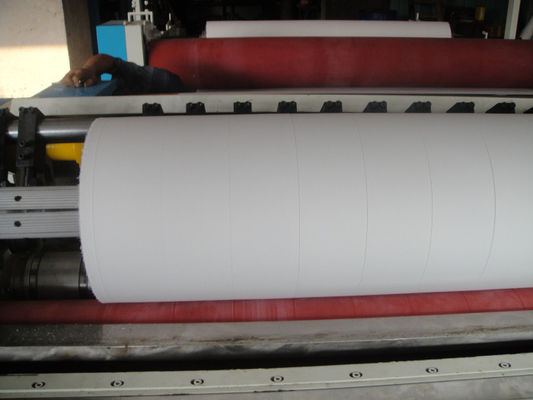

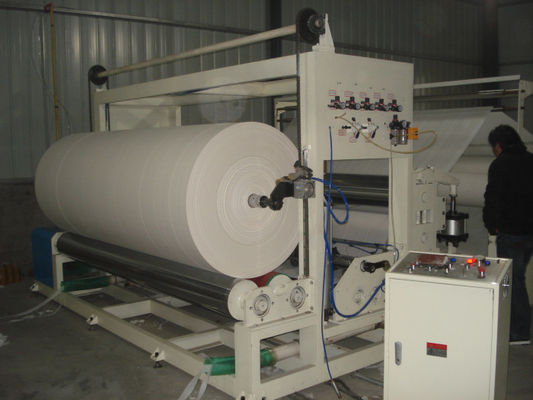

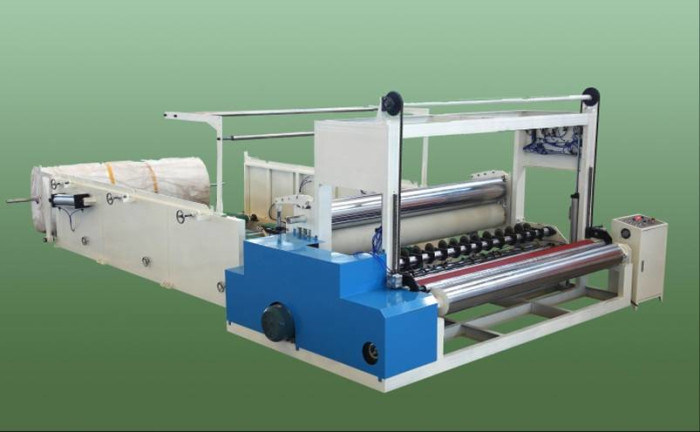

Toilet Paper Roll Slitting Machine and Rewinding Machine for Industrial Roll

Description

Toilet Paper Roll Rewinding Machine for Big Industrial Roll can make both JRT industrial roll and rolled hand towel, it's easy to change in a short time. With edge embossing, perforating,slitting and rewinding functions . Pneumatic jumbo roll loading, belt driving and web tension control devices. The finished roller rewinded by air-fill shaft.

Specification

Model	2500	2900	3100	3600
Max.parent roll width	2000mm	2850mm	3000mm	3400mm
Max.parent roll diameter	Standard φ1500mm / φ2000mm / φ2500mm / φ3000mm unless otherwise specified
Qty of unwind stand	1-3 stands (pls specify when order),each stand is driven by Separate asynchronous servo system
Core inner dia.of parent roll	Standardφ3(76.2mm) unless otherwise specified
Min.slitting size	90mm
Max.finished product dia.	Standard φ1500mm unless otherwise specified
Core inner dia. Of finished roll	Standardφ3(76.2mm) unless otherwise specified
Machine speed	700m/min.
Driving	By Separate asynchronous servo system
Top slitter unit	Each set of blade equipped with individual pneumatic transversal-move unit
*Calender unit	Steel to steel or steel to rubber (to be ordered)
Finished roll moving guide	Linear rail
Roll-kicking	Pneumatic
Roll-unloading	Pneumatic
Trimming edge	collected by air hose
Winding density	By Automatic balancing weight system
Programming control	PLC
Data setting	Touch screen

Functions and Features

1. Adopt air-shaft for reeling, convenient to set the position of paper pipe.

2. Possess the function of embossment, perforation, slitting and rewinding, which can be finished at one time.

3. Pneumatic jumbo roll lifter, pneumatic flat belt feeding, each bobbin has individual tension adjusting device.

4. As required, the equipment can have single color or double color printing device.

5. As required, add trim spray glue sealing function.(customer has to order)

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
