Product Details:
Payment & Shipping Terms:
|
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Power(w): | 7.5KW |
|---|---|---|---|
| Condition: | NEW | Weight: | 5500KGS |
| Production Capacity: | 900SHEETS/MIN/line | Name: | Facial Tissue Paper Making Machine/tissue Paper Manufacturing Machine, Paper Napkin Equipment Converting Machine To Make Square Napkin, Automatic Paper Napkin Making Machine Price, Napkin Tissue Paper Machine, Toilet Paper Making Machine |
| Speed: | 900sheets/min/line | Processing Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine |
| Product Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine | Certification: | CE |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Warranty: | One Year |
| Dimension(l*w*h): | 5200*2200*1800mm | ||
| High Light: | 4800 Sheets/Min Facial Tissue Making Machine,4800 Sheets/Min tissue paper maker,CE 80M/Min Facial Tissue Making Machine |
||

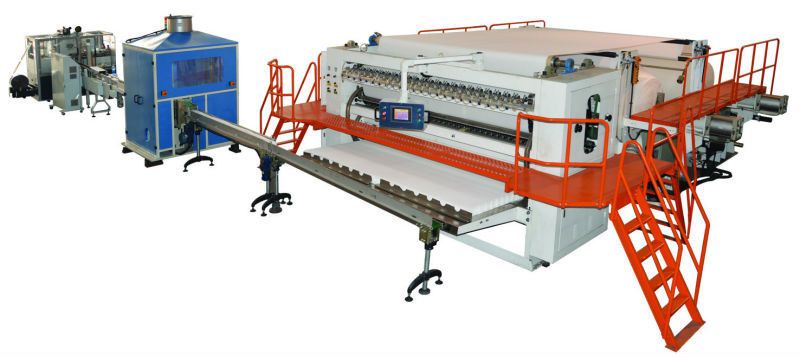

High Speed Facial Tissue Machine 4800 Sheets / Min For Cube Box Facial Tissue
Description
High Capacity Facial Tissue Machine For Cube Box Facial Tissue is designed to produce facial tissue with high speed, nice folding and easy operation. It will count the
paper automatically and output in order. And adopting screw turning knife to cut and vacuum absorption
to fold and frequency invertor to adjust speed to roll and fix different tension of raw paper, adopts
advanced PLC computer program control, with human-machine interface data input. It has wide range of production width for selection.
Specification
| Finished Paper Size | 200×200±2mm (Other size can be specified) |
| Diameter of jumbo rolls | ≤Φ1200 (Other size can be specified) |
| Paper core inner diameter of jumbo rolls | 76.2mm (Other size can be specified) |
| Speed | 60-80M/Min |
| Controller | Electric-Magnetic adjust |
| Embossing equipments | Steel to Steel |
| Enbossing condition | Wool cloth roller, wool roller, rubber roller and steel roller |
| Side rolling embossment | Steel to Steel , self-contained controller |
| Slitting system | Pneumatic mode point-cutting |
| vacuum system | 7.5KW |
| Pneumatic system Pressure | > 4kg/cm2 (provided by customers) |
Main Specification
Speed: 4800sheets/min
Folding Type: Interfold
Edge Embossing
Frequency Converter Delta
Motor: Siemens
Pneumatic Parts AIRTAC
20mm thickness wall board plate for back stand
40mm thickness wall board plate for embossing unit
30mm thickness wall board plate for cylinder folding parts
Photoelectrical switch (magic eye) Omron
Electrical Parts and other Parts brand
| NO | Name | Brand | Original Place |
| 1 | Motor | Siemens | China |
| 2 | Pneumatic Parts | Omron | Germany |
| 3 | Vacuum Pump | Longtech | Taiwai |
| 3 | Frequency converter | Delta | Taiwai |
Box-drawing facial tissue machine is to cut a good plate of paper folded into the process "V" type of paper
processing equipment, machinery and mechanical hand using vacuum assisted folding principle.
1. Automatic counting sub-bit row of output;
2. Screw shear knives, vacuum folding;
3. Variable speed unwinding, can be adapted to base level of tension;
4. Controlled by PLC computer programming, pneumatic, on paper, easy to operate;
5. Frequency conversion motor to save energy;
6. Product width can be adjusted to facilitate marketing;
7. Supporting paper, paper pattern edge rolling device, the pattern is clear, flexible and market demand. (Pattern selected by the guests)
High Quality Facial Tissue Machine Paper Product Making Machinery
Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
2. Specification of Single Channel Log Saw Cutting Machine:
3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Final Products:
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
Final Products:
