7.5KW Z Fold Paper Folding Machine

7.5KW Z Fold Paper Folding Machine
7.5KW Z Fold Paper Folding Machine 7.5KW Z Fold Paper Folding Machine 7.5KW Z Fold Paper Folding Machine

Large Image :  7.5KW Z Fold Paper Folding Machine

Product Details:

Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-FTM-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden packing
Delivery Time: 40 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Detailed Product Description
Bearing: Made In Japan Speed: 4800 Sheets/min
Motor: Siemens Touch Screen: Siemens
Steel: NO 45 Steel Structure: Wall Board
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Facial Tissue Making Machine Processing Type: Facial Tissue Making Machine
High Light:

7.5KW Z Fold Paper Folding Machine


2900mm width Z Fold Paper Folding Machine


120m/min auto paper folding machine

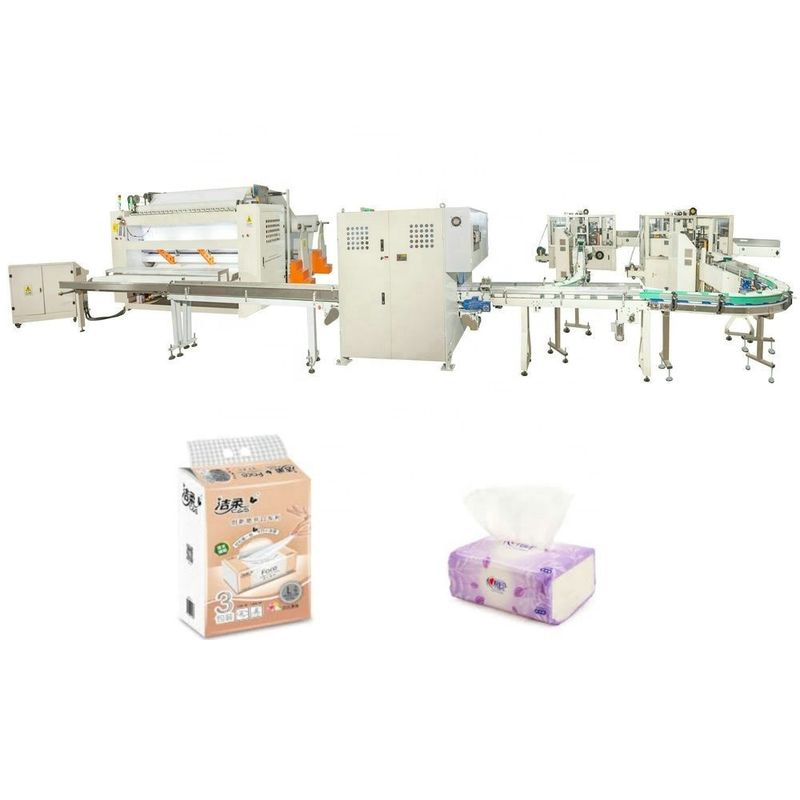

Carton Box Packing Facial Tissue Production Line With Log Saw Cutting Machine



Carton Box Packing Facial Tissue Production Line With Log Saw Cutting Machinehas the functions of embossing, slitting, folding, counting and dividing, auto-taking, auto transporting / dispatching, auto-loading, and auto sealing in one, which the whole production process is fulfilled automatically. This production line has the advantages of simple operating, high production efficiency, and keeping the consistent of the finished products. With the fully automatic production, the amount of workers can be cut down, so helps to save the cost of workers and managing cost greatly.
It is consists of the following THREE parts:


1. Automatic High Speed Facial Tissue Paper Folding Machine

2. Automatic Single Lane Log Saw Cutting Machine

3. Automatic Facial Tissue Paper Packing Machine


It converts the jumbo roll into folded facial tissue paper. The whole line work smoothly and run stable, saving the labor cost. It’s best choice for the producing facial tissue paper.




Full Automatic Facial Tissue Production Line Facial Tissue Folding System

Width of Parent Roll


Open Size of Facial Tissue


Folded Size of Facial Tissue


Design Speed


Production Speed

120m/min.(In accordance with the specifications)

Dia. of Parent Roll

≤1500mm (other sizes can be customized)

Paper Unwinding Stand

2-6layer, individual drive (Layers should be specified)

Folding Mechanism

Vacuum suction folding

Fold Way

V-type interfolding

Transverse Cutting Way

Upper blade is fixed, bottom blade is rotatable

Facial Tissue Dividing System

Dividing Mechanism

Servo control, automatic dividing

Counting Way

Sheets amount set on the touch screen, automatic counting and dividing

Counting Standard


Dividing Speed

≤7 times/min.

Shape of Finished Product


Rolling over




 Facial Tissue Storage System

Storage Quantity


Unloading Speed




Facial Tissue Cutting System

Machine Model




150 cuts/min.


Paper Cutting Channel

Two channels

Blade-grinding System

Pneumatic blade-grinding, grinding parameters can be set on the control panel.

Blade-grinding Feed

Automatic blade-grinding

Blade Specifications

φ610mm circular blade

Paper Cutting Length

Set on touch screen, Tolerance≤±1mm

Blade Vertical Tolerance


Two Edges of Paper Cutting Length Error

Set on touch screen



Steel to steel, steel to rubber


Steel to steel

PE Film Packing

According to the production place, can be connected with intelligent conveyor and automatic PE  film packing machine

Carton Box Packing

production place, can be connected with intelligent conveyor and automatic carton box packing machine (cartoner)





Main Specification

Face Tissue Paper Production Flow Chart : unrewinding jumbo roll --embossing unit ---folding unit ----slitting (cutting) ---counting ---output.



1.Jumbo roll stands: 2 : Wallboard type strcutuer, 20mm thickness steel plate


2. Mian machine structure: Wallboard type strcutuer, 50mm thickness steel plate


3. Equipped with pneumatic type wide belt to convey paper,each jumbo roll has independent tension adjustor and left-right adjusting device.


4.Pneumatic lifting jumbo roll unit to reduce the labor strength.


5.Auto stop when paper breaks to decrease the waste of paper


6. Cutting width is adjustable from 100-210mm freely.


5. Optional Units: embossing unit and edge embossing unit.


8.Roots vacuum bump absorbing system with strong suction,negative pressure is stable.


9. adopts advanced Siemens PLC computor program control, Siemens frequency invertor to adjust speed ,


10. auto counting and arrange piles,with touching screen Parameter Settings


11. Embossing unit: Steel to Steel



Electrical Parts and other Parts brand





Original Place






Pneumatic Parts




Vacuum Pump




Frequency converter




Product Description

High Quality Facial Tissue Machine Paper Product Making Machinery

7.5KW Z Fold Paper Folding Machine 0



Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.

1.Can order steel to rubber embossing rolls,pneumatically separated.

2.Wallboard rack and Machine running stability and extremely good and fast.

3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.

4.Equipped with roots type vacuum pump for stable running of the machine.

5.Make various products width as requirement.

6.Equipped with edge embossing unit to keep the plise together.

7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.

8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.

1. Specification of Facial Tissue Folding Machine:

Machine Model
SYM-190/6L (Other size to be specified)
Finished Products Unfolded Size
Folding Products Size
Raw Material Width
Raw Material Diameter
Raw Material Core Diameter
Output Capacity (8 hours)
Embossing Unit
Steel to rubber
Edge Embossing
Steel to steel edge embossing, independent pneumatic regulation
Slitting Unit
Pneumatic slitting
Main Servo Moter Power
Unwind Frequency Motor Power
1.5kw (2 units)
Vacuum System
18.5 kw Vacuum pump (Taiwan Roots blower)
Pneumatic System
3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)
Driving System
Timing belt
About 5 tons
7.5KW Z Fold Paper Folding Machine 1
7.5KW Z Fold Paper Folding Machine 2
7.5KW Z Fold Paper Folding Machine 3
7.5KW Z Fold Paper Folding Machine 4

2. Specification of Single Channel Log Saw Cutting Machine:

7.5KW Z Fold Paper Folding Machine 5
Parameter values
The length of the none cut off facial tissue
minimum 500mm
The Height of tissue
Machine Speed
Operating speed
Round blade outer diamete
Paper cutting circular knife top speed
Finished products specification
Paper width
Cutting Length
Left-over Length
Power supply
380V 50Hz
Air source
Machine Size
Weight of machine
Parameter setting (auto/manual)
Stepping sharpening knife
Parameter setting (auto)
Pneumatic sharpening knife
Parameter setting (auto/manual)
Blow air
The total pressure switch
Value (not)
Human-computer interface
Frequency changer
Servo Drive

3. Specification of Facial Tissue Packing Machine:

1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.

Tissue sizes:
L: 150-400mm W: 150-200mm H: 35-150mm
Packing speed:
40-70 bags/min
Air supply:
Machine weight:
Outer dimensions (LxWxH):
Heating power:
Motor power:
Packing size:
Working noise:
Packing film:
Power supply type:
380V, 50Hz
7.5KW Z Fold Paper Folding Machine 6
7.5KW Z Fold Paper Folding Machine 7

Final Products:

7.5KW Z Fold Paper Folding Machine 8

4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:

Packing Size
≤500x300x110mm (LxWxH)
≥220x120x90mm (LxWxH)
Packing Speed
10-20 bag/min
Gas Pressure
Voltage & Frequency
Total Power
Overall Dimension
Tissue paper bag (one row/two rows)
Tissue paper bag (one row/two rows)
7.5KW Z Fold Paper Folding Machine 9

Final Products:

7.5KW Z Fold Paper Folding Machine 10
